Excavators Air Conditioner JGM937 Hydraulic Crawler Excavator for Construction and Road Construction

FOB Price

US$ 200,000 - 250,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

JGM937 Hydraulic Crawler Excavator

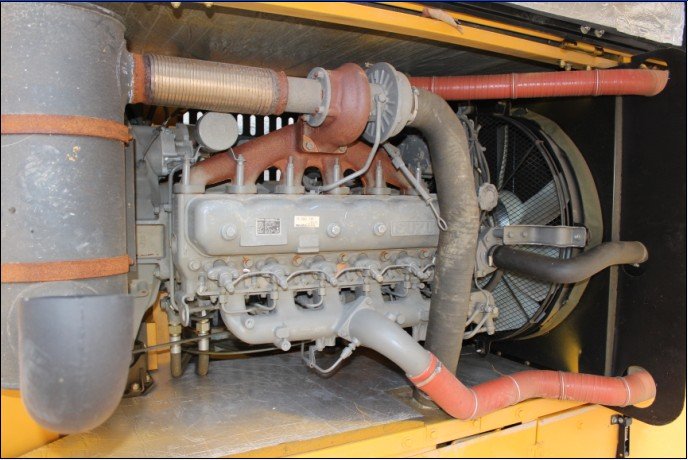

Diesel engine
Model	ISUZU AA-6HK1XQP
Type	6 cylinders,4 strokes, direct injection, turbo charging water-cooling
Displacement	7.79L
Rated power	183.9kw at 2000rpm
Max. Torque	872.8nm at 1700rpm

Dimensions
Overall length(during transport)	11235mm
Width of turntable	2995mm
Height of driver's cabin top	3256mm
Overall width (600mm Track)	3200mm
Wheel base	4020mm
Track length	4949mm
Track gauge	2600mm
Track shoe width (standard)	600mm

Operating specification
Operation weight	35125kg
Standard bucket capacity	1.6m³
Max. excavating height	10105mm
Max. dumping height	7074mm
Max. excavating depth	7172mm
Max. excavating radius	11059mm
Min. swing radius	2820mm
Excavating height at min. swing radius	3970mm
Hydraulic system
Main pump	KAWASAKI twin axial plunger pump+ gear pump
Travel system
Travel motor	NABTESCO
brake	wet multi-plate brake
Track shoe width	600mm

Heavy Construction Machine, Hydraulic Crawler Excavator

Optional equipment:

Different buckets, Soosan breaker and various optional equipments

....

Fujian Jingong Machinery Co., Ltd.: Contact nameLISA LEE
Chat Now; Phone86-595-85751583; AddressQianpu Industrial Park, Anhai, Jinjiang City, Fujian Province. China, Quanzhou, Fujian
