Home > Products > Mining equipments > Shacman F2000 Dump Truck

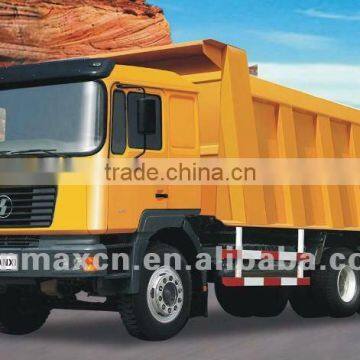

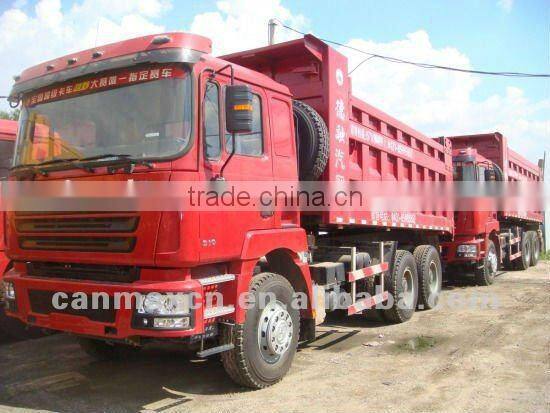

Shacman F2000 Dump Truck
US$ 40,000 - 42,000
/ Set
1 Set(Min. Order)
- Any port of China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Drive Wheel | 6x4 | Capacity (Load) | 11 - 20t | |
| Horsepower | 351 - 450hp | Condition | New | |
| Transmission Type | Manual | Emission Standard | Euro 3 | |
| Fuel Type | Diesel | |||
| Gross Vehicle Weight | 14500 | Place of Origin | Shanxi, China | |
| Brand Name | Shacman | Model Number | SX3254DT384 | |
| Dimensions (L x W x H) (mm) | 8329mm*2490mm*3450mm |
Product Description
Specifications
Shacman 6*4 Dump Truck1. Rated power: 375hp
2. Loading capacity: 18t
3. Competitive price and superiou quality
Shacman 6×4 Dump Truck
| SX3254DT384 | |
| Drive type | 6×4 |
| Weight | |
| Complete kerb mass (kg) | 14500 |
| GVW (kg) | 32500 |
| Dimensions | |
| Max.length(mm) | 8329 |
| Max.width(mm) | 2490 |
| Max.heigh(mm) | 3450 |
| Front / Rear overhang (mm) | 1525/1654 |
| Wheel base(mm) | 3800+1350 |
| Track width(mm) | 2036/1850 |
| Performance | |
| Max.speed (km/h) | 74 |
| Min.turning circle(m) | 17 |
| Min.ground clearance(mm) | 314 |
| Approach / Departure angle (°) | 22/30 |
| Max.gradeability(%) | 33 |
| Engine | |
| Brand | WEI CHAI |
| Model | WD12.375 |
| Power(kw/HP) | 276/375 |
| Max.Torque (N.m )/rpm | 1500/1200—1600 |
| Displacement (L) | 11.596 |
| Emmission Standards | Euro Ⅱ |
| Transmission | |
| Brand | FAST |
| Model | RT-11509C |
| Control type | manual |
| Gear Shift | 9-forward and 1 reverse speeds |
| Clutch | |
| Type | Spring plate,diaphragm spring |
| Diameter (mm) | φ430 |
| Action | mechanical type,hydraulic and pneumatic operation |
| Brakes | |
| Type | Drum |
| Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on rear wheel |
| Auxiliary brake | WEVB |
| Option | ABS |
| Steering | |
| Type | Integral circulating ball power sreering |
| Option | ZF8098 |
| Chassis | |
| Type | Ladder structure with parallel straight |
| Dimensions (mm) | 300×80×(8+7) |
| Suspension | |
| Front Suspension | Longitudinal leaf spring |
| Rear Suspension | Inverted leaf spring stabilizator suspension |
| Axles | |
| Brand | HANDE |
| Front axle | 7500kg |
| Rear axle | 13000kg(each other) Double reduction driving axle with inter-wheel differential and differential lock. |
| Ratio | 5.73(Option 4.8) |
| Tyres | |
| Type (Standard) | 11.00-20 |
| Option | 12.00R20/12.00-20/11.00R20/12R22.5 |
| Fueltank | |
| Tank capacity (L) | 380 |
| Material | Metal |
| Electrics | |
| Type | 24V |
| Starter | 5.58kw(24V) |
| Generator | 1.54kw(28V 55A) |
| Battery | 2×135Ah |
| Cab | |
| Type | MAN F2000, Mid-lengthened |
| flat roof | |
| Equipments | 2 rear window,mechanical clerestory, hydraulic suspension cab,hydraulic chair with seatbelts,one sleeping bed,hydraulic reversal cab,with USB,can play radio with MP3 format |
| Option | electric windows,electricity heated rear-view mirror,CD,Tachograph;2 point air suspension,A/C,air suspension driver seat with handle and eatbelts,electricity reversal cab |
| Other | |
| Platform dimentions(mm) | 5600×2300×1100 |
