VSC Cone Crusher Range From 72mm to 270mm

FOB Price

US$ 6,900 - 22,900 / Unit

1 Unit(Min. Order)

Port any port of China
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Cone Crusher
Capacity(t/h)	6-335	Place of Origin	Shanghai, China
Brand Name	Veking CANMAX	Model Number	VSC24-VSC66

Product Description

Specifications

1. Motor power range: 37-300kw
2. Max. Feeding Size: 95-270mm
3. Reliable quality and good price

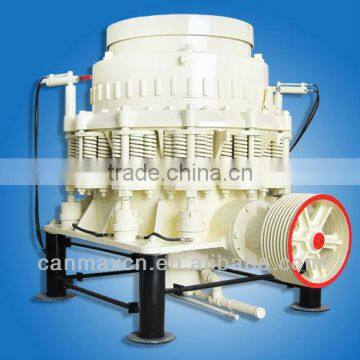

VSC Cone Crusher

1. Simple structure, smooth operation, stable performance and leading output among similar products;
2. A machine frame, which adopts CO2 protection welding and is subjected to annealing treatment, is tight and durable;
3. Manganese steel protection is adopted for all easily worn parts, so that the service life is prolonged;
4. A spring locking device can provide stable crushing force and excessive iron release protection;
5. A hydraulic clean cavity oil cylinder can quickly remove aggregates and difficultly crushed materials in a crushing cavity, so that the maintenance time is greatly shortened;
6. A material-discharging port is hydraulically adjusted, so that the adjustment is convenient, quick and accurate;
7. A labyrinth type dustproof ring is used for sealing to ensure clean lubricating oil;
8. The mounting faces of moving and static gear plates both are subjected to finish machining, and fillers are not used, so that their replacements are convenient and quick;
9. A lubricating system is provided with an oil return and temperature protection device, and interlocked with a main motor, so that the main motor is protected from damage.

Model	Cavity Type	Maximum Feeding Material Size[mm]	Minimum Material-discharging Port Size[mm]	Rotary Speed	Motor Power	Closed Edge Material-discharging Port [Mm] Output [TPH]
Model	Cavity Type	Maximum Feeding Material Size[mm]	Minimum Material-discharging Port Size[mm]	[RPM]	[KW]	6	10	13	16	19	22	25	38	51	64
VSC24	C	95	10	630	37-45		20	25	30	35	45	50	75
VSC24	M	72	6	630	37-45	18	20	25	30	35	40	45	60
VSC40	C	160	13	630	90-110			80	100	135	150	175	235
	M	115	10	630	90-110		65	75	90	120	135	150
	F	80	8	630	90-110	50	55	65	70	95
	EF	50	6	630	90-110	52	62	72	78	102
VSC45	C	180	13	610	110-132			115	135	150	180	200	260
	M	130	10	610	110-132		100	110	120	135	165	175
	F	90	10	610	110-132		80	105	110	140
	EF	60	6	610	110-132	60	74	105	110	130
VSC51	C	200	16	610	132-160				150	180	200	230	310	390
	M	150	13	610	132-160			115	140	160	190	210
	F	102	10	610	132-160		90	115	145	160
	EF	70	8	610	132-160		88	110	135	155
VSC54	C	215	19	610	185-220					200	220	260	330	420
	M	160	16	610	185-220				155	180	200	220
	F	115	13	610	185-220			150	190	210	230
	EF	76	8	610	185-220		122	148	185	200
