Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 5-50 KW | Capacity(t/h) | 50 | |
| Place of Origin | Henan, China | Brand Name | Lanji | |
| Model Number | XL-610-XL1114 | Dimension(L*W*H) | 6.5*1.2*1.8M | |
| Weight | 2-30 T | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.Big processing capacity and low power consumption
2.Small material loss after washing, high washing and selecting efficiency
3.Reasonable structure and stable operation
4.Low failure rate, easy repairing
5.Saving water resource, without pollution
6.Long service life and no necessity of repair for a long time
Beach sand spiral sand washer machine/spiral sand washing amchine with nice price :
The product of this series is applicable to washing, grading and dewatering #70 sand which is used for casting in construction field, sand plant, concrete dam field of hydropower station and post utility pole plant, quartz sand used in glass plant and pressure sand used for backfilling of oil well. It can wash and select material with fine or coarse granularity and is especially suitable for construction sand and road building sand.
Spiral sand washing machine Suitable material:
The product of this series is a high-efficiency bucket type sand washer developed and produced according to actual situations of Chinese sandstone industry. Cooperating with sand maker and having functions of cleaning, dewatering and grading, it can remove impurities (such as dust) in sand product.
Sand washing machine working principle:

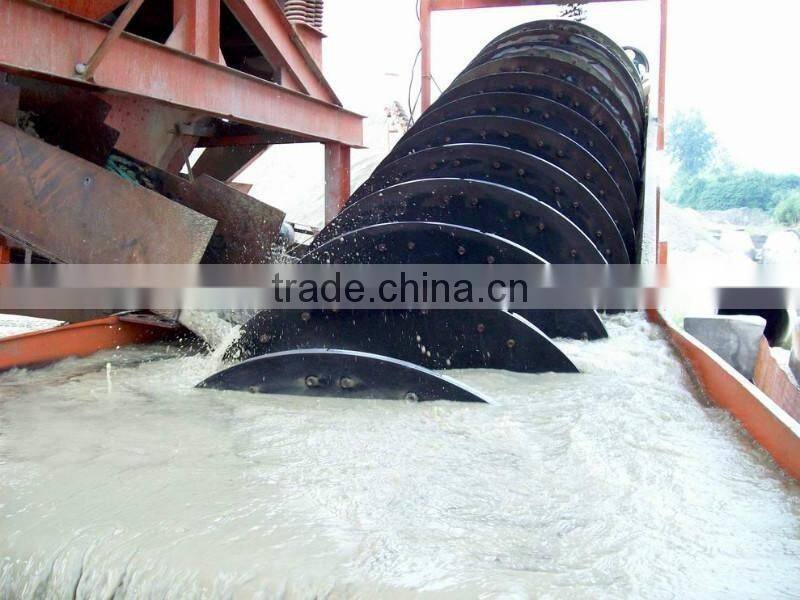

The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Technical Data of the spiral sand washing machine:
Model | Spiral diameter (mm) | Feeding size (mm) | Water consumption(t/h) | Capacity (t) | Power (kw) | Overall Dimensions L*W*H (mm) | Weight(kg) |
XL-508 | 508 | ≤10 | 14-88 | 20 | 5.5 | 8000X2343X1530 | 2670 |
XL-610 | 610 | ≤10 | 14-165 | 50 | 7.5 | 8000X2490X1530 | 3800 |
XL-762 | 762 | ≤10 | 18-124 | 75 | 11 | 9070X2650X1638 | 5225 |
XL-914 | 914 | ≤10 | 18-162 | 100 | 15 | 9070X2650X1638 | 6370 |
XL-1118 | 1118 | ≤10 | 27-333 | 175 | 30 | 9070X2830X1900 | 9800 |
