Top Quality Single Spiral Sand Washer/ Screw Sand Washing Machine
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Abrasion Resistance and Large Cleaning Capacity Bucket Wheel Sand Washer Machine
-
Good Quality Double Spiral Sand Washing Machine/spiral Ore Washer Machine
-
Top Quality and Low Price Trommel Screen for Sand Washing Line
-
Professional Design Continous Screw Stone Washer Plant With Competitive Price
-
Mining Spiral Sand Washer Machine
-
Fine Sand Collecting System for 0.16mm Sand
Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 5-50 KW | Capacity(t/h) | 50 | |
| Place of Origin | Henan, China | Brand Name | Lanji | |
| Model Number | XL-610 | Dimension(L*W*H) | 6.5*1.2*1.8M | |
| Weight | 2-30 T | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

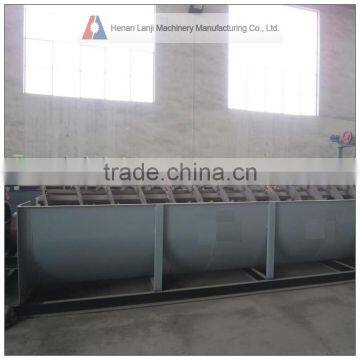

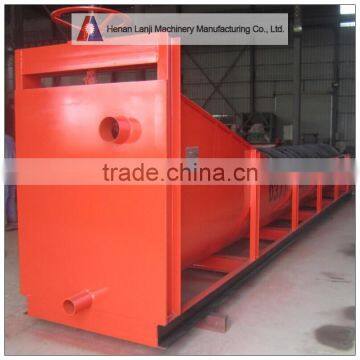

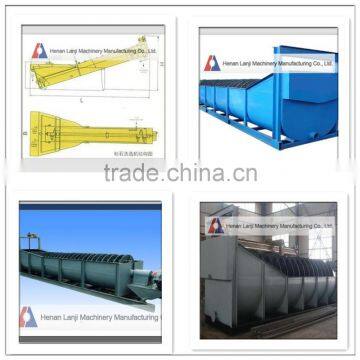

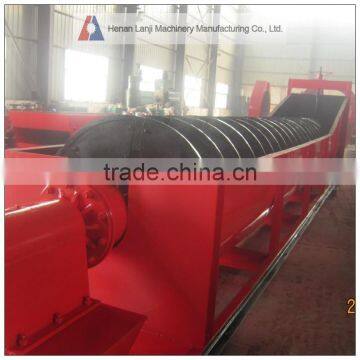

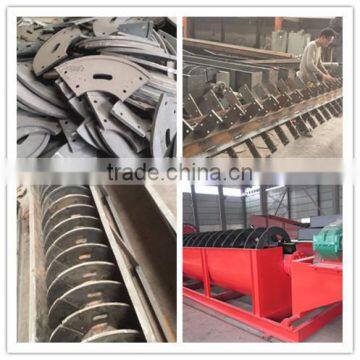

Top quality single spiral sand washer/ screw sand washing machine
Classification of sand screw washer/ spiral ore washer/ stone classifier
1. High weir type: It's mainly used for the separator of ores with particle size between 0.83-0.15mm;
2. Sank: It is mainly applied to the separator of ores with particle size between 0.15-0.07mm.
Overview of sand screw washer/ spiral ore washer/ stone classifier
According to the different proportion of solid particles, the rate of precipitation in the liquid is also different, spiral classifier concentrates fine ore based on certain principle. After grinding, the materials will pass through filter, through which the coarse materials will return to ball mill and the fine ores will be discharged from the overflow pipe.
3. Technical Data:
Model | Spiral diameter (mm) | Feeding size (mm) | Water consumption(t/h) | Capacity (t) | Power (kw) | Overall Dimensions L*W*H (mm) | Weight(kg) |
XL-508 | 508 | ≤10 | 14-88 | 20 | 5.5 | 8000X2343X1530 | 2670 |
XL-610 | 610 | ≤10 | 14-165 | 50 | 7.5 | 8000X2490X1530 | 3800 |
XL-762 | 762 | ≤10 | 18-124 | 75 | 11 | 9070X2650X1638 | 5225 |
XL-914 | 914 | ≤10 | 18-162 | 100 | 15 | 9070X2650X1638 | 6370 |
XL-1118 | 1118 | ≤10 | 27-333 | 175 | 30 | 9070X2830X1900 | 9800 |
