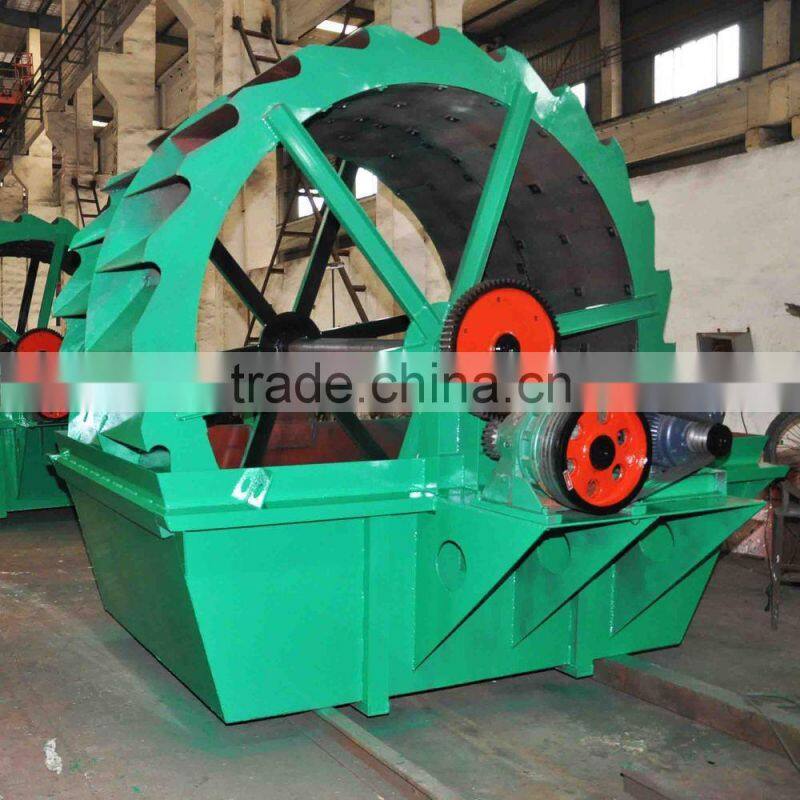

High Abrasion Resistance and Large Cleaning Capacity Bucket Wheel Sand Washer Machine
- Shanghai Tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Good Quality Double Spiral Sand Washing Machine/spiral Ore Washer Machine
-
Top Quality and Low Price Trommel Screen for Sand Washing Line
-
Professional Design Continous Screw Stone Washer Plant With Competitive Price
-
Mining Spiral Sand Washer Machine
-
Fine Sand Collecting System for 0.16mm Sand
-
Reliable Quality Fine Sand Dewatering Machine for Sand Washing Line
Product Details
| Condition | New | Motor Type | AC Motor | |
| Power(W) | 5-50 KW | Capacity(t/h) | 50-100 | |
| Place of Origin | Henan, China | Brand Name | Lanji | |
| Model Number | XSD3000 | Dimension(L*W*H) | 2.3*1.2*2.0 M | |
| Weight | 3-50 T, 5300 kg | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
sand washer machine:
1. Reasonable structure, high efficiency, and little sand loss during washing;
2. The most advantageous factor is that the transmission device isolates with sand and water, which greatly reduces the failure rate.
High Abrasion Resistance and Large Cleaning Capacity bucket wheel Sand Washer Machine
Features of sand washer machine
1. High cleaning;
2. Reasonable structure;
3. High capacity and low power consumption;
4. With the three functions of sand washing, grading and dehydration;
5. The sand washing machine is 15° Tilted layout;
6. The spiral is driven by motor and decelerator to continuously rotate, and the sand or small ores can be stirred and washed.
Application of sand washer machine
Being an important sand washing machine, it is widely used for sand washing, grading and dehydration in the fields of construction site, hydropower station and concrete dam sites, etc. Sand washer machineis used for removing dust in sand. It aims at improving the quality of sand. This sand washer is the perfect equipment for domestic sand wash industry.
Specifications of Sand Washer Machine
Models | XSD2610 | XSD2816 | XSD3016 |
Impeller Specification (mm) (D×W) | Φ2600×1000 | Φ2800×1600 | Φ3000×1600 |
Impeller Speed (mm) | 1.178 | 1.177 | 1.179 |
Capacity (t/h) | 20~50 | 30~60 | 50~120 |
Feed Size (mm) | ≤10 | ≤10 | ≤10 |
Water Consumption (mm) | 20~60 | 50~100 | 70~120 |
Electric Motor Power (KW) | 5.5 | 11 | 15 |
Decelerator Models | ZQ50-50-I-Z | ZQ60-50-I-Z | ZQ65-50-I-Z |
Overall Dimensions (L×W×H) | 3255×1982×2690 | 3540×3000×2880 | 3845×3000 ×3080 |
1. Henan Lanji Machinery Manufacturing Co., Ltd is professional in producing large and medium-sized crushers, ball mills,mining equipments, brick/block making machine and so on.
2. Our clients spread all over the world. Products are sold to South Korea,, Indonesia, Vietnam,
Portugal, Africa and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.
1..Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.
2.After sale service: 1year guarantee.
