CE STANDARD Brush Monofilament Yarn Extrusion Line
- Jiangsu
- T/T
You May Like
-
ABS PLA Monofilament Extruder Machine for 3d Printing
-
CE STANDARD HIGH QUALITY FILTER NET MONOFILAMENT MACHINERY
-
CE STANDARD HIGH QUALITY POLYESTER BRUSH MONOFILAMENT EXTRUSION LINE
-
CE STANDARD HIGH QUALITY POLYESTER BROOM MONOFILAMENT EXTRUSION LINE
-
CE STANDARD HIGH QUALITY POLYESTER BRUSH MONOFILAMENT PRODUCTION LINE
-
CE STANDARD HIGH QUALITY FISHING LINE MONOFILAMENT PRODUCTION LINE
Product Details
| Condition | New | Application | Other, Filament | |
| Plastic Processed | PE | Screw Design | Single-screw | |
| Automatic Grade | Automatic | Place of Origin | Shanghai, China | |
| Brand Name | monofilament yarn extrusion line | Model Number | monofilament yarn extrusion line | |
| Voltage | 380 V | Power(W) | 160 Kw | |
| Dimension(L*W*H) | 28000*2500*1970mm | Weight | 25 T | |
| Certification | ISO/CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

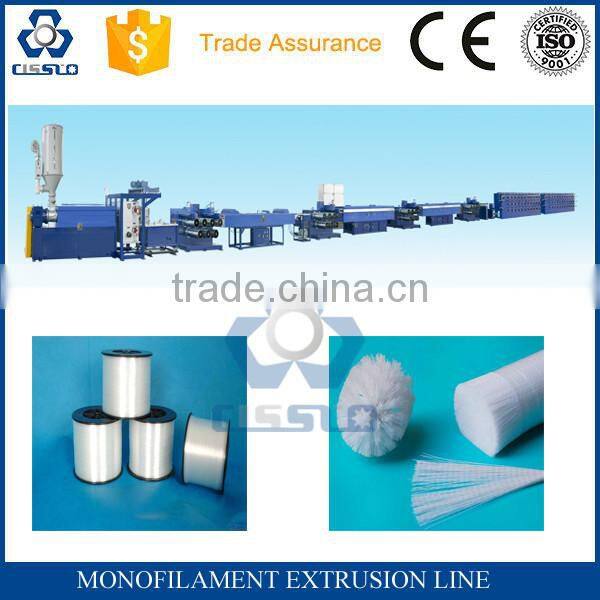

ROPES MONOFILAMENT YARN EXTRUSION LINE
I. Work Condition of Whole Line
Warehouse/Workshop (Provided by customer) | Construction of foundations, construction works, earthworks, and wall works; Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Dimension (M*M*M): 25(L)×4(W)×3.5(H); |
Power supply | Installed power of whole line: 90kw, Operation power: 54kw Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
Wire/cables/water hose: | Wires/cables: From power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine; Water hose: Supply water to machines and pools; |
II. Scope of Supply
No. | Name | Qty. |
1 | SYL-L90×30-580 Extruder | 1set |
2 | Filter, Mould and Melt pump | 1set |

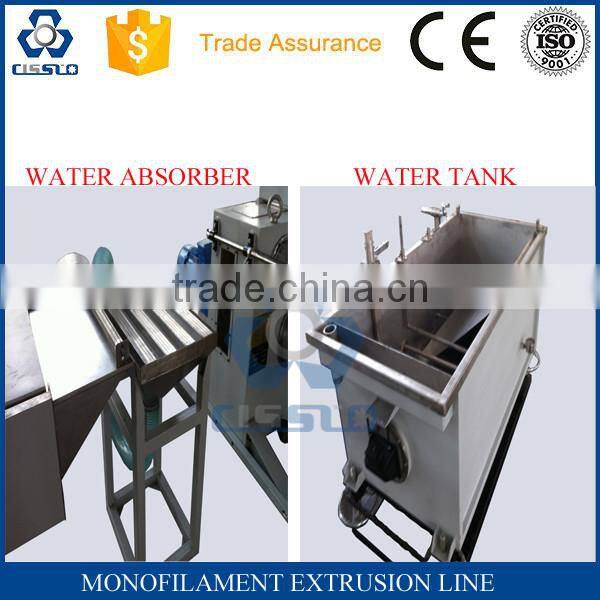

3 | Cooling water tank | 1set |
4 | Seven rollers take-off unit A | 1set |

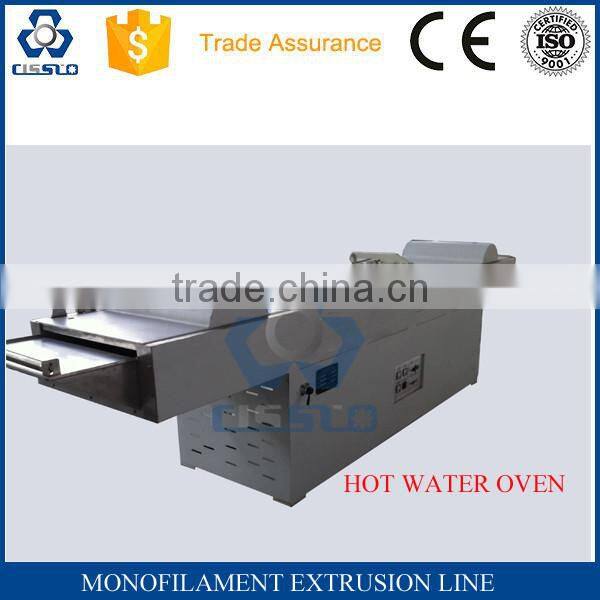

5 | Hot water tank | 1set |
6 | Seven rollers take-off unit B | 1set |
7 | Oil equipment and winder of waster monofilament | 1set |
8 | Winding unit | 1set |
9 | Setting oven | 1set |
III. Technical Specifications of Monofilament Extrusion Line
| Model Parameters | Unit | 760/1010 | 1060/1300 | 1100/1300 | 1300/1300 | 1300/1420 |
| Max.forming area | mm2 | 762*1016 | 1065*1295 | 1120*1295 | 1270*1295 | 1270*1420 |
| (30"*40") | (42"*51") | (44"*51") | (50"*51") | (50"*56") | ||
| Max.forming depth | mm | 127(5") | 127(5") | 127(5") | 127(5") | 127(5") |
| Mould Clamp Force | T | 40 | 60 | 60 | 60 | 60 |
| Max.formingspeed | s/die | 1.8 | 2 | 2 | 2 | 2 |
| Mounted capacity | kw | 110 | 315 | 330 | 365 | 400 |
| Intallation size(L*W*H) | m | 10*2*2.5 | 14*2.2*2.5 | 14*2.2*2.5 | 14*2.35*2.5 | 15*2.35*2.5 |
Our company is established in 1988, specialize in making extrusion equipment, thermoforming equipment and relevant facilities as well as moulds, and it is a limited reliability company which sets development, manufacture, sales and service in one.

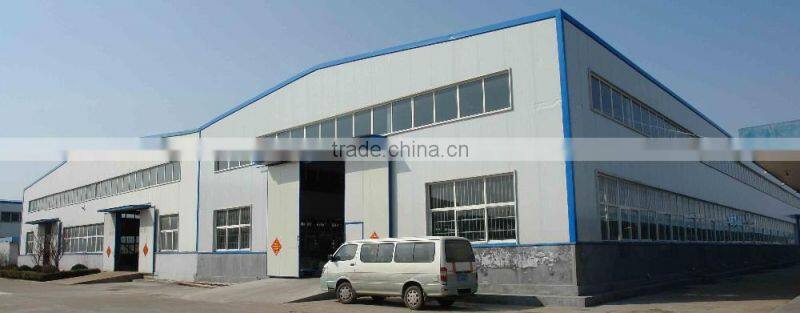

We have strong research & development and manufacture ability, and it has a team consisting of professional staff from different engineering fields. Our factory is located in Zhejiang Province of China. We have a team of more than 100 empolyees.
Meanwhile, We can provide customer relevant auxiliary parts and moulds, as well as turn-key project service.
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
