PET Zipper Monofilament Extrusion Machine
- Jiangsu
- T/T
You May Like
-
Brush Monofilament Yarn Extruding Line
-
Monofilament Yarn Extruding Line Monofilament Yarn
-
Extruders for Abs Monofilaments
-
High Quality Pet Bottle Flakes Extrusion Line
-
3D Printing Plastic ABS PLA Filament Extrusion Machinery With CE High Quality
-
PP Flat Yarn Extrusion Line pp Yarn Plastic Extrusion Line
Product Details
| Condition | New | Application | Other, Filament | |
| Plastic Processed | Other, PET | Screw Design | Single-screw | |
| Automatic Grade | Automatic | Place of Origin | Shanghai, China | |
| Brand Name | PET zipper monofilament extrusion machine | Model Number | PET zipper monofilament extrusion machine | |
| Voltage | 380 v | Power(W) | 160 kw | |
| Dimension(L*W*H) | 28000*2500*1970mm | Weight | 25 T | |
| Certification | ISO/CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

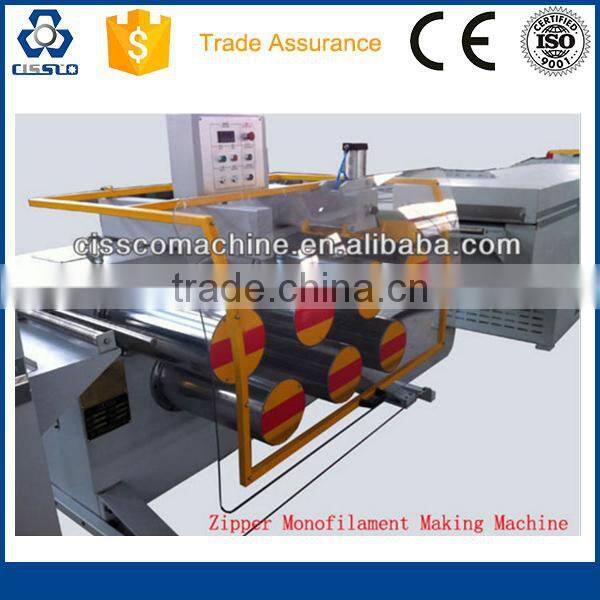

MONOFILAMENT YARN FOR ZIPPER EXTRUSION LINE
1. About us :
Cissco Machinery has been producing this machinery for more than 10- years and we have satisfied clients in more than 30 countries throughout the world. We have an excellent reputation for quality , reliability and service, and all our machinery is designed, engineered and manufactured in China.

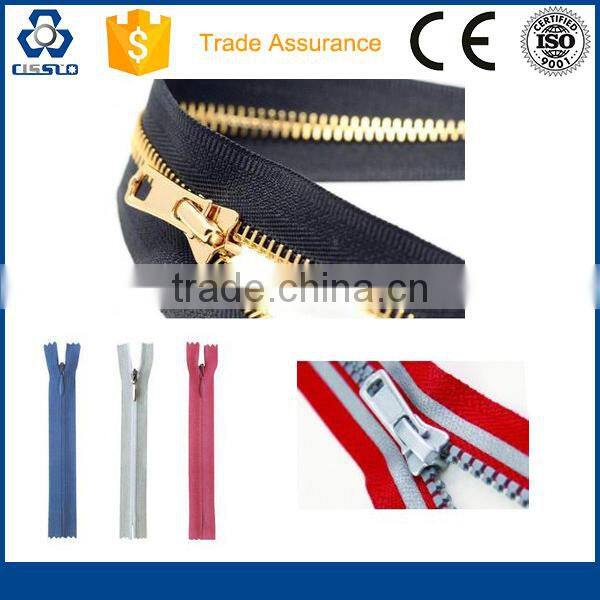

2. Yarn Monofilament Application : this machinery is suitable for the production of brush monofilament ,velcro monofilament , zipper , ropes, fishing nets, mosquito nets , construction safety net.
3. Configuration of MONOFILAMENT YARN FOR ZIPPER EXTRUSION LINE
No. | Part Name | Qty. | Introduction of Main Parts |
1 | Extruder | 1set | 1. Raw material: PET virgin or bottle flakes 2. Frequency conversion control speed. 3. Hard tooth surface gear motor: Jiangsu changzhou. 4. Screw and cylinder: Made in Zhejiang Zhoushan. 5. Material of screw heating: Al Casting. |
2 | Spinning die | 1pc | 1. Heating method of die head: oil heating. 2. Material of spinneret:SUS316. 3. Frequency conversion control speed, cycloidal pinwheel reducer.
|

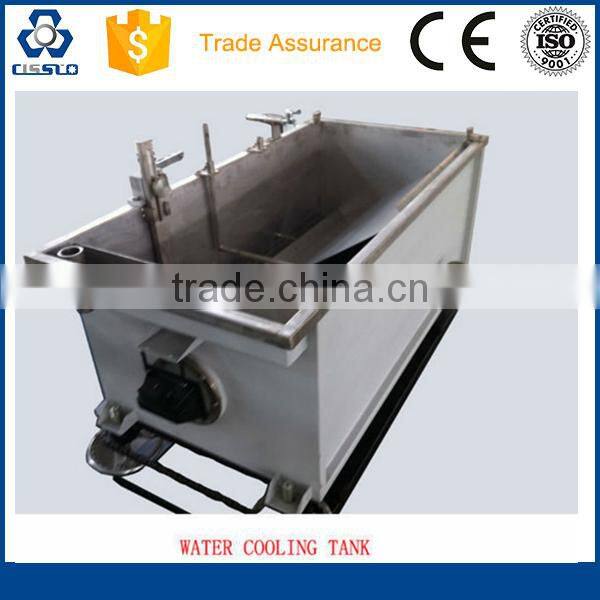

3 | Cooling water tank | 1set | 1. Yarn separate pole is movable. 2. Material of box: stainless steel. |
4 | Seven roller Stretching A | 1set | 1. Frequency conversion control speed. Frequency conversion motor. 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole.
|
5 | Hot water tank | 1set | 1. Material is stainless steel with heat preservation, and cover is opened by gas 2. Heating method :electrical heating 3.Equip water recycling pump |
6 | Seven roller Stretching B | 1set | 1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front, one rubber roller and stainless steel separate pole
|

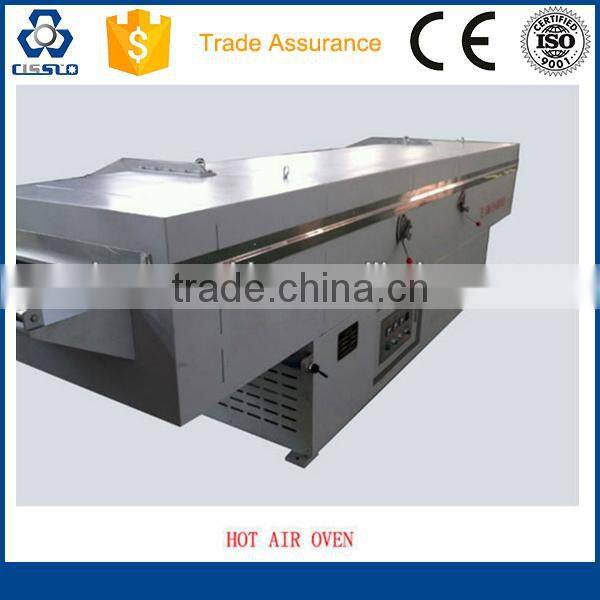

7 | Hot blast stretching recycled oven | 1set | 1. Single layer recycled hot blast oven 2. Equip wind power control 3. Hot blast path especial design make them equality 4. Frequency control of motor speed |
8 | Seven roller Stretching C | 1set | 1. Frequency conversion control speed Frequency conversion motor 2. Steel structure of box, gear transmission, running balance. 3. In front and back, each with one rubber roller and stainless steel separate pole.
|
9 | Oiling unit | 1set | 1. Frequency conversion control speed Frequency conversion motor |
10 | Yarn guider system | 1set |
|
11 | Winder | 2sets | Frame style winder |
12 | Cabinet | 1set | Shown in another list |
4. Photo Show
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our clients factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
