Home > Products > FILAMENT & FLAT YARN > Good Quality PP Monofilament Yarn Machine
Good Quality PP Monofilament Yarn Machine
- Shanghai
You May Like
Product Details
| Condition | New | Application | Other, PP monofilament yarn machine | |
| Plastic Processed | Other, PP PET | Screw Design | Single-screw | |
| Automatic Grade | Fully Automatic | Place of Origin | Shanghai, China | |
| Brand Name | PP monofilament yarn machine | Model Number | PP monofilament yarn machine | |
| Voltage | 3*380V+N+PE | Power(W) | whole line: 90kw, Operation power: 54kw | |
| Dimension(L*W*H) | 25L 4W 3.5H | Weight | 20T | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PP monofilament yarn machine
I. Work Condition of PP monofilament yarn machine
Warehouse/Workshop (Provided by customer) | Construction of foundations, construction works, earthworks, and wall works; Supply of cranes, fork-lifts or other lifting equipment; Mounting materials and tools; Dimension (M*M*M): 25(L)×4(W)×3.5(H); |
Power supply | Installed power of whole line: 90kw, Operation power: 54kw Supply voltage: 3*380V+N+PE; Voltage tolerance: +5%/-5%; Control voltage: 24VDC+220VAC; Frequency: 50HZ+-2% |
Wire/cables/water hose: | Wires/cables: From power supply to control cabinet of this production line and all electrical cables from control cabinet to each machine; Water hose: Supply water to machines and pools; |
II. Specifications of PP monofilament yarn machine
No. | Name | Qty. |
1 | SYL-L90×30-580 Extruder | 1set |
2 | Filter, Mould and Melt pump | 1set |
3 | Cooling water tank | 1set |
4 | Seven rollers take-off unit A | 1set |
5 | Hot water tank | 1set |
6 | Seven rollers take-off unit B | 1set |
7 | Oil equipment and winder of waster monofilament | 1set |
8 | Winding unit | 1set |
9 | Setting oven | 1set |
|
| |
III. Technical Specifications of PP monofilament yarn machine
1.SYL-L90×30-580 Extruder
1.1 Capacity: Max. 160kg/hr 1.2 Material: PET virgin pellets 1.3 Diameter of monofilament: 0.10-4mm 1.4 Motor: 1.4.1 Type: AC motor 1.4.2 Power: 45kw 1.4.3 Brand: Siemens Beide(China) 1.5 Gear box: 1.5.1 Type: 225, hard tooth surface 1.5.2 Brand: Jiangsu Changzhou 1.6 Screw: 1.6.1 Diameter: 90mm 1.6.2 L/D: 30 1.6.3 Material: 38CrMoALA 1.6.4 Rotation speed: <80rpm 1.6.5 Brand: Zhejiang zhoushan 1.7 Barrel: 1.7.1 Material: 38CrMoALA 1.7.2 Heating mode: Cast aluminum ring |

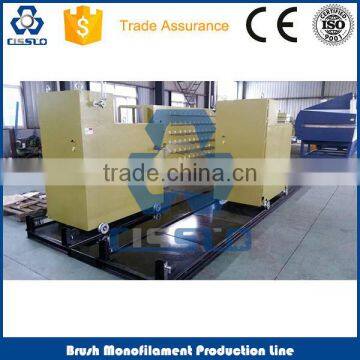

IV. Pictures of PP monofilament yarn machine
At CissCo, we design, engineer and manufacture customized PET Monofilament Extrusion Machine. There is a proven CissCo technology for virtually every extrusion line application. Our extensive knowledge of the industry - its raw materials, processes and finished products - provides reliability, cost optimization and on-time delivery, the same benefits that you would expect from proven pre-engineered components, all in a system designed and tailored to your unique requirements.
To ensure the efficiency, productivity and safety of our systems, we offer extensive start-up assistance, comprehensive training and operator manuals. When you have service needs, you can count on an immediate response from your nearest CissCo facility, one of many we have located strategically throughout the world. we are using the high technology from European. From the pictures, you can find the similarity between our machine and theirs.
CissCo Machinery has been trying to enable customers to maximize the benefits with professional serivces such as:
- 24 hours services;
- Overseas installation;
- Free operation training and technology formula transfer;
- Old machine update;
- Spare parts and maintenance with reasonable cost price.
- Diameter: 0.1-4mm
- Material: PP, PET, Nylon, PE
- Capacity: 160kg/hr
- Application: brush, broom
Video on Youtube: https://youtu.be/Zi49lFip3Qg
