Home > Products > Freeze Dryer > -45~60 Degree Freeze Drying Machine with Electric Heating,2016
-45~60 Degree Freeze Drying Machine with Electric Heating,2016
USD $15,000 - $16,000
/ Piece
1 Piece(Min.Order)
- 500 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
You May Like
-
DW-50ND In-situ lyophilizer with Freeze drying system,NEW
-
4 layers In-situ Freeze-Drying Machine (Electric Heating)
-
DW-50ND In-situ Electric Heating Freeze Dryer Machine,2016
-
6L In-situ Freeze-Drying Machine with Electric Heating,2016
-
Ordinary Desktop freeze - drying machine with optional imported vacuum pump
-
DW-10ND Ordinary Desktop freeze - drying machine with electrical heating
Product Details
| Place of Origin | Shanghai, China | Brand Name | DRAWELL | |
| Model Number | DW-50ND |
Product Description

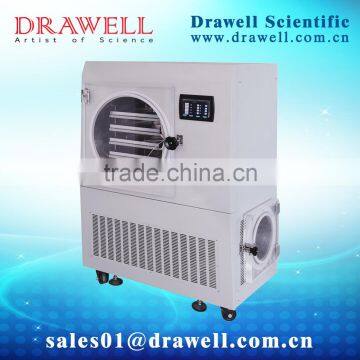

DW-50ND In-situ (Electric Heating) Freeze-Drying Machine
- Pre-freeze drying process at in situ situation, high transparent organic glass door to observe working procedure
- Shelf temperature adjustable, controllable, detectable; its suitable for pilot scale and small production
- LCD screen display, PID control, drying curve displayed on thescreen
- Square tray is shape not easily to deformed, easy to operate and clean
- With Gas charging valve can fill with inert gases like nitrogen gas
Drying chamber | DW-50ND (In-situ) | Ordinary | Top-Press |
Drying Area | 0.5 m2 | 0.5 m2 | |
No.of Tray | 4 layer | 4 layer | |
Temp. Range | -45~60 ℃ | -45~60 ℃ | |
Shelf Gap | 70 mm | 70 mm | |
Shelf Size | 350mm×430*20 mm | 350mm×430*20 mm | |
Capture water trap | φ22 Schering bottles | 1056 | 1056 |
φ16 Schering bottles | 2046 | 2046 | |
φ14 Schering bottles l | 2420 | 2420 | |
φ12 Schering bottles | 3690 | 3690 | |
Temperature | ≤-55(No-load)℃ | ≤-55(No-load)℃ | |
Ability to Capture Water | 10Kg/24h | 10Kg/24h | |
Parameters | Power | 4.5 kw | 4.5 kw |
Power Supply | 110-115V or 220-240V 50/60Hz | 110-115V or 220-240V 50/60Hz | |
Plate Load Capacity | 6 L | 6 L | |
Electric Defrost | / | / | |
Vacuum | ≤10 Pa | ≤10 Pa | |
Dimension | 630×800×1400 mm | 630×800×1400 mm | |
Drying chamber shape | cylindrical | cylindrical | |
N.W./ G.W | 300KG/ 340KG | 360KG/400KG | |
