DW-50F Silicone Oil Heating Freeze-Drying Machine with Refrigeration system
- Shanghai
- T/T Credit Card
You May Like
-
DW-50ND Lab Ordinary In-situ (Electric Heating) Freeze-Drying Machine with high quality
-
DW-100F Laboratory square Silicone Oil Heating Freeze Dryer with large refrigerating capacity
-
DW-30ND Top-Press Square In-situ (Electric Heating) Freeze Dryer With LCD screen display
-
DW-50ND High Quality Top-Press In-situ (Electric Heating) Freeze Dryer with Shelf temperature adjustable
-
Electric Heating Freeze-Drying Machine for lab home
-
DW-10ND In-situ (Electric Heating) Freeze-Drying Machine
Product Details
| Condition | New | Type | Drum Drying Equipment | |
| Place of Origin | Shanghai, China | Brand Name | DRAWELL | |
| Model Number | DW-50F | Voltage | 110-115V or 220-240V 50/60Hz | |
| Power(W) | 4.5 kw | Dimension(L*W*H) | 700x1030x1500 mm | |
| Weight | 380KG/440KG | Certification | ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

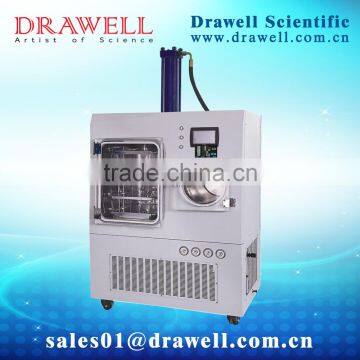

DW-50F Silicone Oil Heating Freeze-Drying Machine
1. Pre-freeze drying process at in situ situation, reduce the complicate operation from drying process, become automatically;
2. Shelf temperature differences ± 1 ℃, dry effect uniform;
3. Intermediate medium circulation technique, shelf can refrigeration, heating, temperature adjustable, controllable, pilot scale test and production process;
4. Due to drying chamber and cold trap for fission structure, special gas circuit designed, capture water ability is strong and drying time to be short;
5. Embedded touch screen, PLC controlled and PID temperature controlled display lyophilized curve and history curve;
6. Control system can be stored 40 freeze-dry process programs, each program can have 40 temperature settings, and can choose the manual operation and automatic operation, the Top-Press type is equipped with an automatic defrost function;
7. Optional eutectic point test device;
8. U disk data available;
9. Equipped with PC software can print curve, browsing curve, modify data;
10. Square tray is shape not easily to deformed, easy to operate and clean;
11. Can be configured charging valve, rechargeable dry inert gas.
12. Drying chamber adopts high light colorless transparent organic glass door, in operation process can be observed clearly the change of material process;
13. Refrigeration system using overlap refrigeration technology, low refrigeration temperature, large refrigerating capacity, and adopt imported closed compressor, high efficient and reliable, low noise.
Drawell After Sales Service-----Please don't worry, our products are superior in quality, If you have any problems, please feel free to let us know, we are glad to support as below:
* Good quality firstly to avoid any defective products ;
* Operation Manuals in English ; installation & operation vedio will be provided to you as guidance ;
* We could provide Online instruction ;
* During warranty time, we can send product accessories when you need;
* Your technicians can come to our factory for training , Drawell engineers can go your place for support ( cost on your side );
* Products can be customized according to your requirements;
* Generaly the machine can use 5~10 years for average even longer if you use properly.
