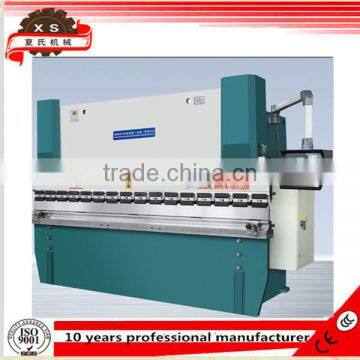

Hydraulic press brake 160 Tons large Machine WF67Y-160T/4000

FOB Price

USD $100 - $10,000 / Set

1 Set(Min.Order)

Port Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China	Brand Name	XIASHI
Model Number	WF67Y-160T/4000	Condition	New
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Features of Hydraulic press brake 160 Tons

This machine is designed limiting limit elements analyzing and optimization made of entirely steel structure. Using libration effort to eliminate inner stress, the rigidity of machine is guaranteed.

Slider adopt torsion shaft synchronization mechanism, high-precision twisting axis centering taper bearings at both ends of torsion shaft ,and to install loads ,can make the workpiece acquire better precision of bending .
The bending angle adjustment by reducer driven by a mechanical block inside the fuel tank, trip counter display value.
Installed long-distance pressure-regulator valve on column right side.
Wallboard inside with manual pumps...
Back gauge adopt grinding plate design ,high regulation accuracy.

Model: WF160T/4000 press brake
No	Name	Amount	Unit
1	Nominal pressure	1600	KN
2	Poles distance	3040	mm
3	Throat depth	320	mm
4	Slipper stroke	200	mm
5	Max. opening height	450	mm
6	Slipper stroke adjustment	150	mm
7	Diameter of cylinder	220	mm
8	Main motor power	11	kw
9	Oil pump power	25	ml/r
10	System pressure	22	Mpa
11	Wallboard thickness	60	mm
12	Slipper thickness	60	mm
13	Machine weight	11 000	Kg
14	Workbench length	4 000	mm
15	Dimension (L×W×H)	4 000×1 850×2 700	mm

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
