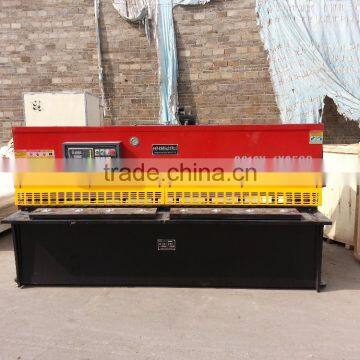

Hydraulic Guillotine Shear Metal Cutting Machinery QC11K-6*2500
- ShenZhen
- T/T
You May Like
-
TG703F-2 high - speed EDM Drilling Machine Cut Machine CNC Machine Manufacturers
-
Portable CNC flame cutting machine EDM Cutting Machine DK7740
-
D7130 precision EDM shaping machine Die sinking forming EDM machine
-
EDM Cutting machine laser cutting machine DK77120J
-
Portable CNC cutting machine EDM wire cutting machine DK7740J
-
Gantry type plasma cutting machine/ plasam cutting machine
Product Details
| Condition | New | Place of Origin | Yunnan, China | |
| Brand Name | XIASHI | Model Number | QC11K-6*2500 | |
| Voltage | 380V | Rated Power | 7.5kw | |
| Dimension(L*W*H) | 3250*1500*1700 | Weight | 7.5KG | |
| Certification | CE ISO | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Hydraulic Guillotine Shear Metal Cutting Machinery QC11K-6*2500
Specifications
QC11K hydraulic guillotine shear machine
1.ISO9001 & CE
2.Electrical digital display system
3.Safety light curtain
Feature
1.All steel welded structure, vibrating treatment of aging for removal of internal stress, with good rigidity and stability2.Integrated hydraulic transmission system, with good reliability.
3.Triple support rolling guide to eliminate gaps of support and enhance shearing
quality.
4.Mechanical rear stopper with manual fine tuning, and digital indication.
5.Clearance in between shearing blades adjusted by hand wheel to ensure quick, accurate and convenient.
6.Rectangular blades with four cutting edges to prolong working life, adjustable
shearing angle to reduce deformation of the sheet.
7.Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
8.Function of shearing in sections, function of aligning with light.
9.Safe fence and the electric inter-locker have been designed for the machine to
ensure the operation safety.
10.Electric box:power off when open the door.
11.The machines is equipped with gear pump to reduce noise and the life is much
longer.
12.All pipelines are connected by bit type tube fittings.
Technical Parameters
type | name | Parameter | Unit | |
1 | Max shearing thickness | 6 | mm | |
2 | Max shearing width | 2500 | mm | |
3 | Shearing angle | 0.5°~2° | Degree | |
4 | Strokes time | 3~20 | Beats / min | |
5 | Height of working table | 800 | mm | |
6 | Distance of back gauge | 10~500 | mm | |
7 | Major motor | 7.5 | KW | |
8 | vane pump | CB-1025 |
| |
9 | Machine weight | 4000 | Ton | |
10 | Machine Overall dimensions | L | About 3250 | mm |
|
| W | About 1500 | mm |
|
| H | About 1700 | mm |
