U-PVC Actuation Adaptor True Union Ball Valves For Acid (Both Side Flanged Ball Valve)
- Shanghai/Ningbo
- T/T
You May Like
-
U-PVC Actuation Adaptor True Union Ball Valves (One Side Female Threaded)
-
U-PVC Actuation Adaptor True Union Ball Valves For Acid
-
U-PVC 3 Way Valves (T Port)
-
U-PVC 3 Way Ball Valves (T Port)
-
U-PVC True Uinon Ball Valve For Acid Position Regulated One Side Female Threaded
-
U-PVC True Uinon Ball Valve Position Regulated For Water Two Side Female Threaded
Product Details
| Material | Other, UPVC, UPVC | Technics | Casting | |
| Type | Other, Ball Valves | Place of Origin | Kocaeli, Turkey | |
| Model Number | PN 16 | Brand Name | TU | |
| Shape | Equal |
Product Description
Options:
Easy assembly disassembly availability.
Positioner,Limit swith box,Namur solenoid valve,manual control unit.
Flange connection measures:ISO 7005/ EN 1092/ DIN 2501 PN10/ BS4504
Availability exist for new options which can be added according to the needs.

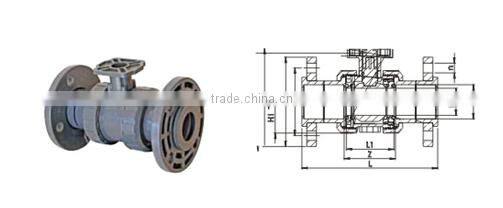

Dia | BSP (Inch) | PN | DN (mm) | Kv-value l/min. | Z (mm) | L1 (mm) | L (mm) | H (mm) | H1 (mm) | ISO5211 Interface |
20 | 1/2″ | 16 | 15 | 185 | 60 | 48 | 123 | 131 | 27 | F 03 |
25 | 3/4″ | 16 | 20 | 350 | 58 | 45 | 140 | 133 | 31 | F 03 |
32 | 1″ | 16 | 25 | 700 | 68 | 49 | 158 | 141 | 33 | F 05 |
40 | 1 1/4″ | 16 | 32 | 1000 | 82 | 54 | 186 | 157 | 41 | F 05 |
50 | 1 1/2″ | 16 | 40 | 1600 | 94 | 65 | 231 | 182 | 46 | F 05 |
63 | 2″ | 16 | 50 | 3100 | 98 | 74 | 253 | 218 | 58 | F 07 |
75 | 2 1/2'' | 16 | 65 | 5000 | 119 | 87 | 291 | 228 | 65 | F 07 |
90 | 3″ | 16 | 80 | 7000 | 156 | 98 | 353 | 252 | 89 | F 07 |
110 | 4″ | 16 | 100 | 11000 | 185 | 150 | 431 | 276 | 105 | F 07 |
Dia | BSP(Inch) | PN | Kg/Pcs | Box/Pcs | EPDM & PTFE O-RINGCode | FPM O-RINGCode |
20 | 1/2″ | 16 | 0.376 | 1 | 300 08 020 2 | 301 08 020 2 |
25 | 3/4″ | 16 | 0.491 | 1 | 300 08 025 2 | 301 08 025 2 |
32 | 1″ | 16 | 0.687 | 1 | 300 08 032 2 | 301 08 032 2 |
40 | 1 1/4″ | 16 | 1.107 | 1 | 300 08 040 2 | 301 08 040 2 |
50 | 1 1/2″ | 16 | 1.480 | 1 | 300 08 050 2 | 301 08 050 2 |
63 | 2″ | 16 | 2.340 | 1 | 300 08 063 2 | 301 08 063 2 |
75 | 2 1/2'' | 16 | 3.305 | 1 | 300 08 075 2 | 301 08 075 2 |
90 | 3″ | 16 | 5.540 | 1 | 300 08 090 2 | 301 08 090 2 |
110 | 4″ | 16 | 8.105 | 1 | 300 08 110 2 | 301 08 110 2 |
