Soaking or Liming Wooden Drum for Cow Cattle Leather
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | DUNCHENG | |
| Model Number | DCH | Type | Other, soaking or liming wooden drum | |
| Voltage | 380v | Power(W) | by the size | |
| Dimension(L*W*H) | by the size | Weight | by the size | |
| Certification | ce | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
soaking or liming wooden drum key point
aking ,liming,tanning, retanning ,dyeing
2.80% space for use
3.Big capacity ,specially for cow
4.imported Africa IKKI original nature grow tree
5.dry as nature beside sea
6.original wooden diameter enough big for ensure all drum material keep completely group
7.drum running as shaft droved by motor and gear box
8.water recycle by Italy special technical
pletly running shaft
10.stainless steel door
11.inside only paddle
12.inside special treatment ensure smooth
soaking or liming wooden drum Specification :
The Specification(mm) | Φ 4.5x4.5/ 4.5x4.2/4.5x4/4.2x4.2/4.2x4/4x4/4x3.5 /3.5x3.5/3x3 | |
Drum | Material | Imported Ekki |
Plate thickness(plank) | 90mm/80mm | |
The drum’ s door | Material and style of the door | Stainless steel traversing gate |
Dimension of the door | Size of large door 1300x1300, size of small door 450x450 | |
Gearwheel | diameter, (modulus) | Φ 3200, m12 |
Material | Standard cast- iron | |
Bracket panel | Diameter | Φ 3200 |
Material | Standard cast- iron | |
Revolution speed | About 6.0rpm (made as request) | |
Motor | 37kw/22kw/15kw, provide hydraulic coupling | |
Speed reducer | 463 style Specially used in drum, and provide pneumatic brake | |
Pinion of the speed reducer | Wear-resistant copper gear | |
Drain valve | All Material are Stainless steel, draining two sides, 2 valves each side | |
Main spindle and the bearing | Main spindleZG45#, provide 3538 self-aligning bearing | |
Outside drum | CranesΦ 20x16, transverse braceΦ 22x6, vertical rod Φ 20x12, all 45#( Material) | |
Drum pile | Wooden drum pileΦ 76xL(total)420, 10 steps, 5/4crisscross | |
Electrical control cabinet | Every drum has a cabinet with functions of pros and cons starting, crawl, controlling total working time, reduced voltage starting and brake lag. | |
soaking or liming wooden drum guarantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer

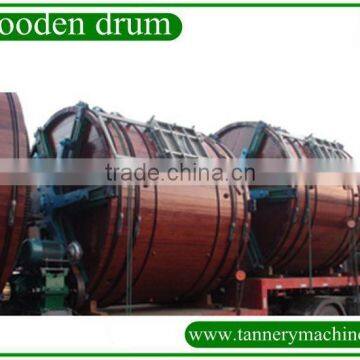

soaking or liming wooden drum

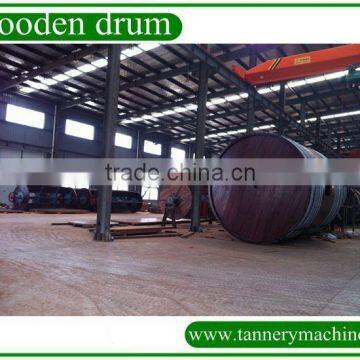

soaking or liming wooden drum

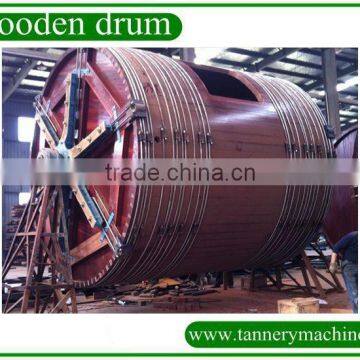

soaking or liming wooden drum
