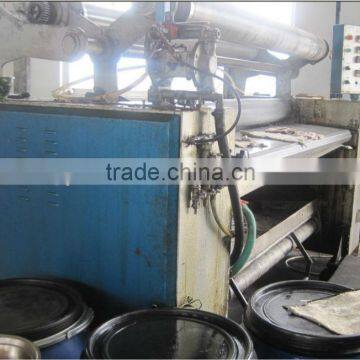

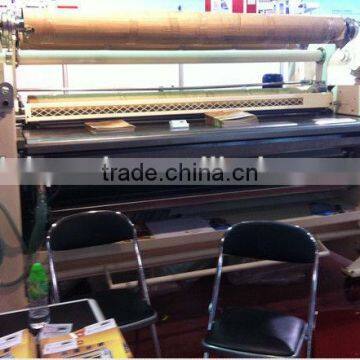

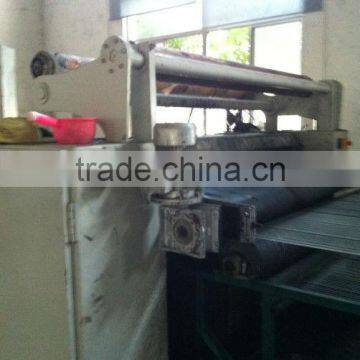

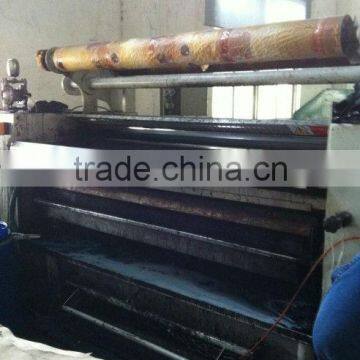

3 or 4 Roller Cow Goat Leather Roller Coating Machine

Specifications

 leather Roller coating machine

ating the paint or resin on the leather surface

2.for more than 0.9mm leather

3.reform or end leather finishing

Machine structure:

- Three or four coating rollers for different purposes are equipped on the automatic pneumatic roller bridge.

- Two blade controlled by pneumatic device, automatically advancing and retreating. The pressure

between the blade and roller is adjustable. An automatic axial movement device controls the

carrier with adjustable swing frequency for effectively mixing chemical.

- Rubber roller diameter 240mm with softness 50 S.H. provides a perfect working surface.

- Rollers are directly driven by gears, which effectively avoid vibration.

- Height-adjustable carrying rollers are respectively installed in the front and back of the coating

roller, which, according to different leather, can change the wrap angle

between leather and coating roller so as to increase contact surface.

- Working (coating) thickness of the machine can be digitally adjusted with digital display on the

control panel (precision 1/100mm). Also with the help of manual adjusting hand wheel, the

parallelism between coating roller and rubber roller can be directly and very easily adjusted

Complete with
