D4.2XL4.5 Leather Wooden Drum for Soaking Liming Tanning
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Place of Origin | Jiangsu, China | Brand Name | weiguo | |
| Model Number | leather wooden drum | Type | Other, leather wooden drum | |
| Voltage | 380v | Power(W) | 37KW | |
| Dimension(L*W*H) | 4.2*4.5m | Weight | 5000 | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

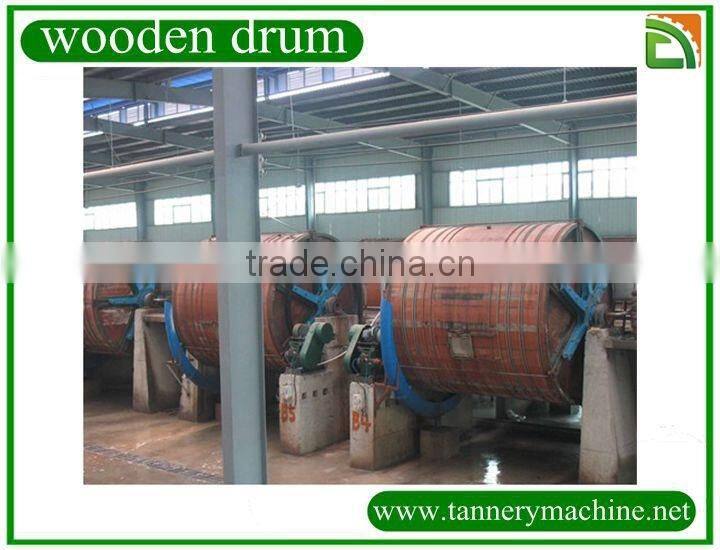

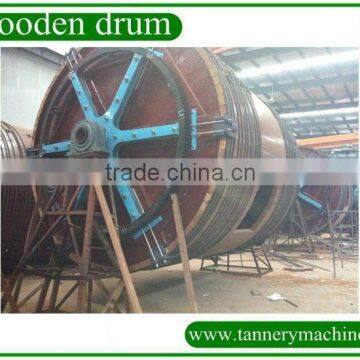

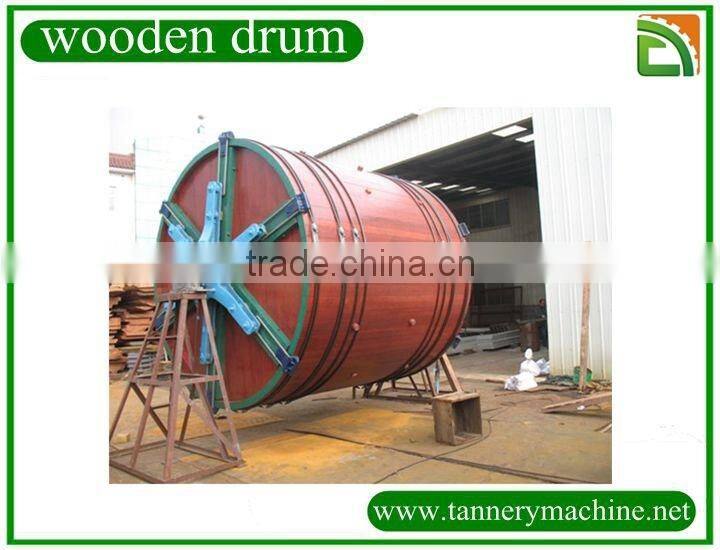

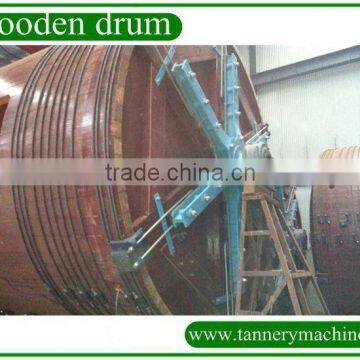

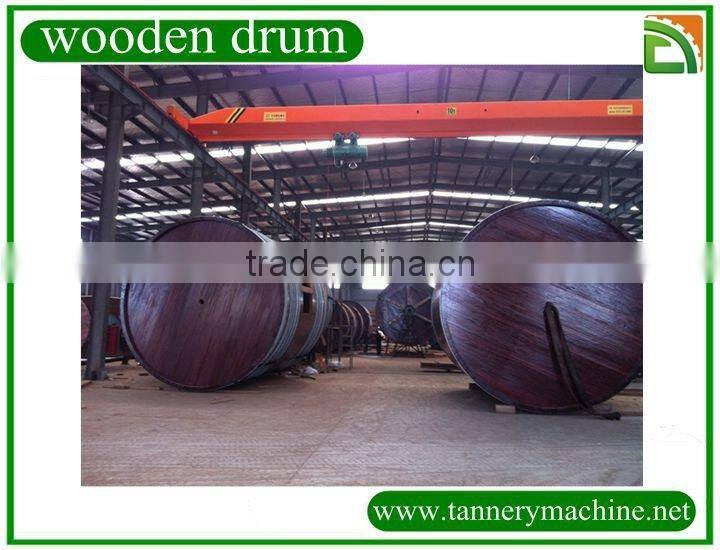

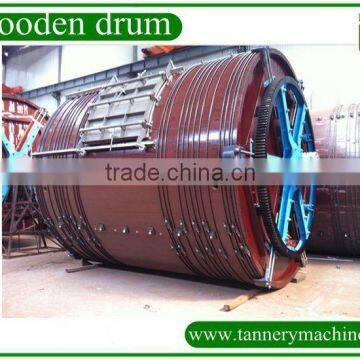

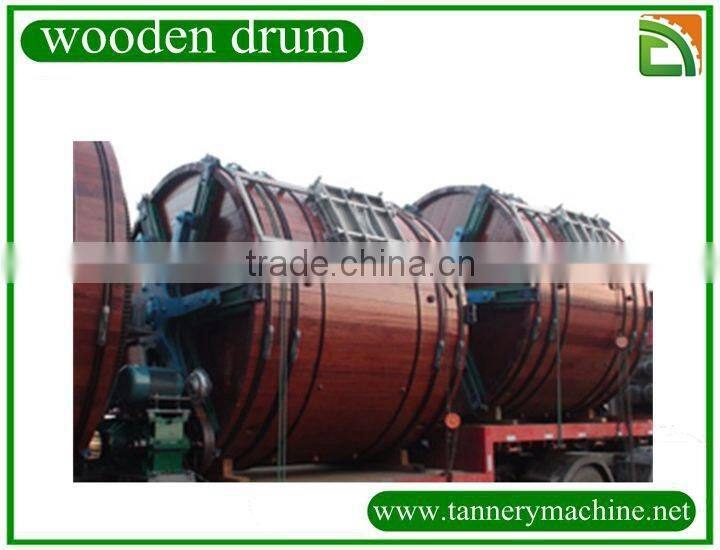

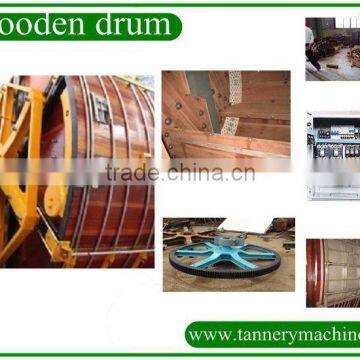

leather wooden drum key point
aking ,liming,tanning, retanning ,dyeing
2.80% space for use
3.Big capacity ,specially for cow
4.imported Africa IKKI original nature grow tree
5.dry as nature beside sea
6.original wooden diameter enough big for ensure all drum material keep completely group
7.drum running as shaft droved by motor and gear box
8.water recycle by Italy special technical
pletly running shaft
10.stainless steel door
11.inside only paddle
12.inside special treatment ensure smooth
leather wooden drum Specification :
Model | Useful | Total space (LTS) | Loading weight (KG) | Speed(RPM) | Power (KW) |
D4.2x4.5m | Liming or tanning | 52500 | 18000 | Stepless speed within 2 rpm | 37 |
D4x4m | Liming or tanning | 42600 | 15000 | 30 | |
D3.5x3.5m | Liming or tanning | 28300 | 8000 | Stepless speed within 3 rpm | 22 |
Retaining or dyeing | 4000 | Stepless speed within 6 rpm | 22 | ||
D3x2.8m | Liming or tanning | 17000 | 5000 | Stepless speed within 3 rpm | 15 |
Retaining or dyeing | 2000 | Stepless speed within 8 rpm | 15 |
leather wooden drum parts brand and quality:
Inverter | TAIWAN national brand |
Gear box | China national brand |
motor | China national brand |
Electric and all running control | China national brand |
leather wooden drum warrantee time :
one year after machinery arrive in buyer factory ,during one year ,if machinery part damage except by person, factory free change ,but transport charge paid by buyer
