Factory Direct Supply 12 Ton Double Drum Vibratory Roller For Sale

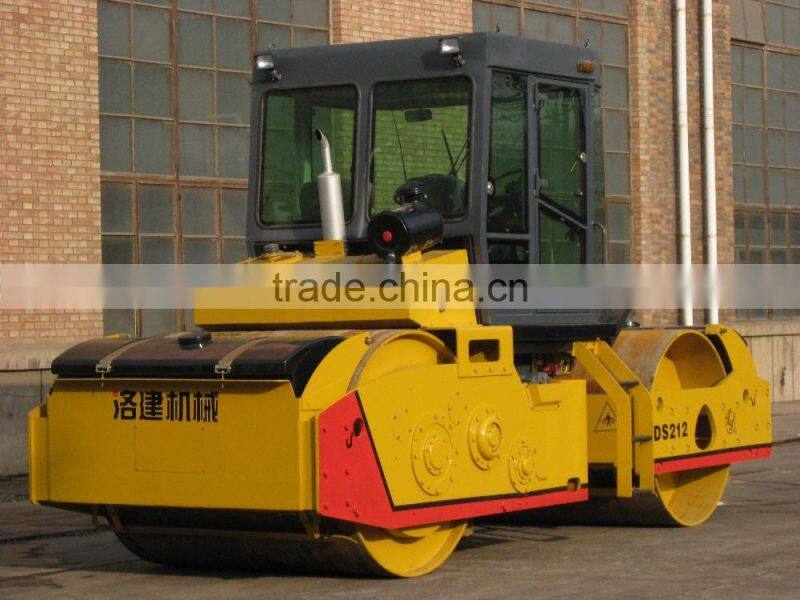

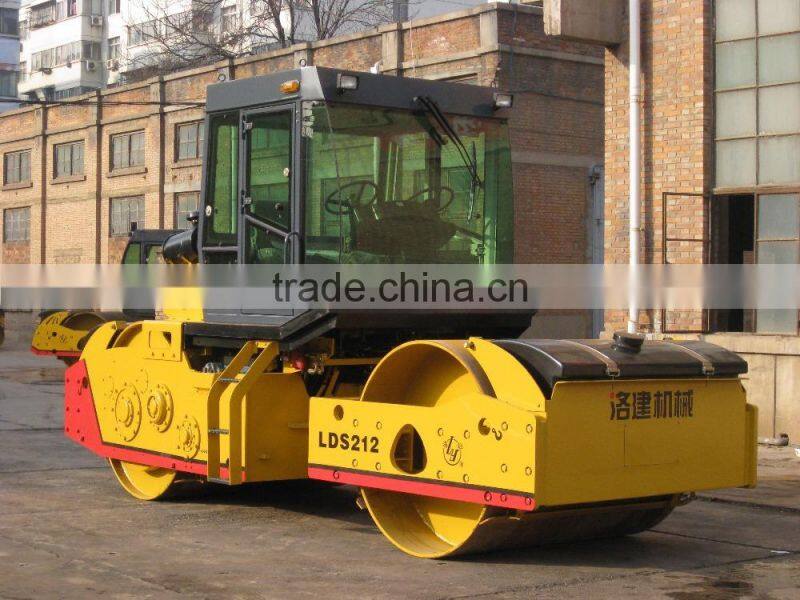

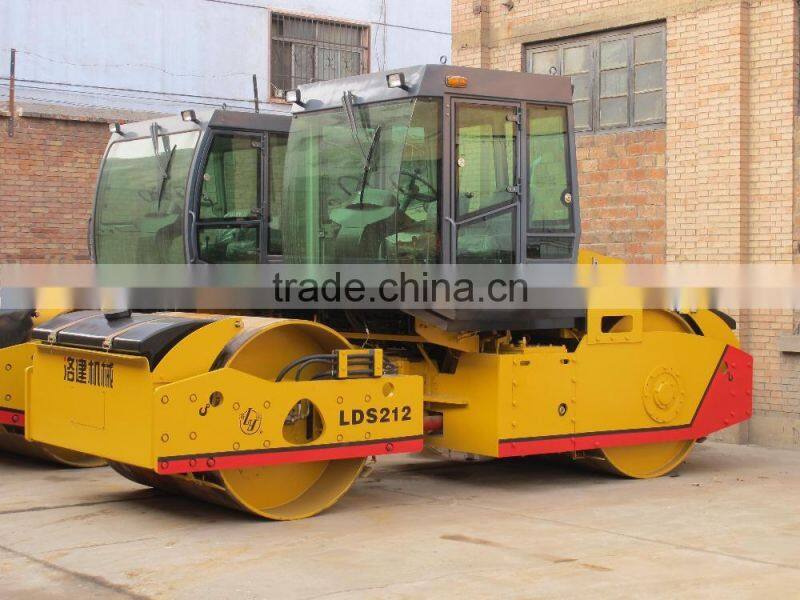

Double Drum Vibratory Roller LDS212

Double drum vibratory rollers are of mechanical travel drive, hydraulic vibration, suitable for compaction of various stabilized soils and bituminous concrete and etc. on road surface construction, which are ideal compaction equipments for highway, municipal road and industrial ground.

Main Features

1.Mechanical travel drive of side transmission, hydraulic vibration and steering with three-gears travel speed for convenient transport between construction sites.

2.Dual operator seats and dual steering wheels with good sight line of side compacting.

3.The machine adopts Dongfeng-Cummins engine with large power reservation, low fuel consumption, good performance of exhaust and good starting feature.

4.Electric-controlled water spraying on front and rear drum surfaces.

TECHNICAL SPECIFICATIONS

Model: LDS212

Operating mass: 12000kg

Static linear load: 318/388N/cm

Vibration amplitude: 0.35mm

Vibration frequency: 50Hz

Centrifugal force: 120kN

Travel speed: 8km/h

Gradeability: 20%

Turning radius: 7000mm

Drum width: 1700mm

Drum diameter: 1260mm

Wheelbase: 3192mm

Ground clearance: 310mm

Diesel engine model: 4BT3.9-C80

Diesel engine power: 60kW

Overall dimensions: 5390*2060*2980mm
