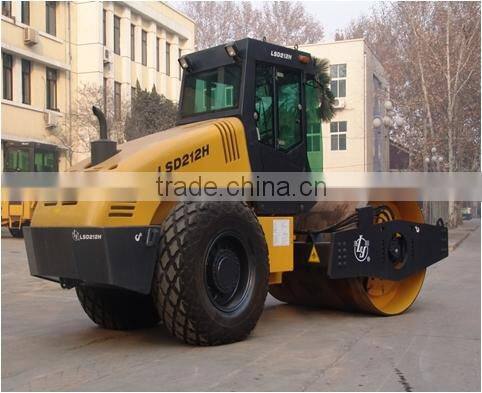

12 Ton CE Certificate New Types Hydraulic Single Drum Vibratory Roller

 LSD212H Hydraulic Single Drum Vibratory Rollers

Optional part: Intergrated padfoot drum

Hydraulic vibratory rollers are suitable for compaction of non-cohesive materials such as gravel, crushed stone, sand-macadam mixture, sandy soil and rock filling etc. on base course, sub-base and embankment fill construction etc., which are ideal equipment for high-class highway, railway, airport, harbors, dams and large-scale industrial ground etc.

Main Features

1.Powerful Cummins diesel engine; Optional diesel engine with electronic control.

2.Hydrostatic wheel&drum travel drive operated by a single lever at two range infinitely variable speeds.

3.Parking brake hydraulically mounted in central input of the driving axle with oil-cutoff braking for reliable safety.

4.Circle arc glasses cabin with air conditioner(option) and curve engine hood for unique streamline shape appearance.

5.Engine mounted with backward power output and turnover engine hood allow easy access to the main hydraulic components.

Technical Specifications

Model: LSD212H

Operating mass: 12000kg

Static linear load: 303N/cm

Vibration amplitude: 1.8/0.9mm

Vibration frequency: 30/36Hz

Centrifugal force: 270/180kN

Travel speed: 10km/h

Gradeability: 40%

Turning radius: 6500mm

Drum width: 2100mm

Drum diameter: 1500mm

Wheelbase: 3050mm

Ground clearance: 472mm

Diesel engine model: Cummins6BT5.9

Diesel engine power: 110kW

Overall dimensions: 6000*2250*2950mm
