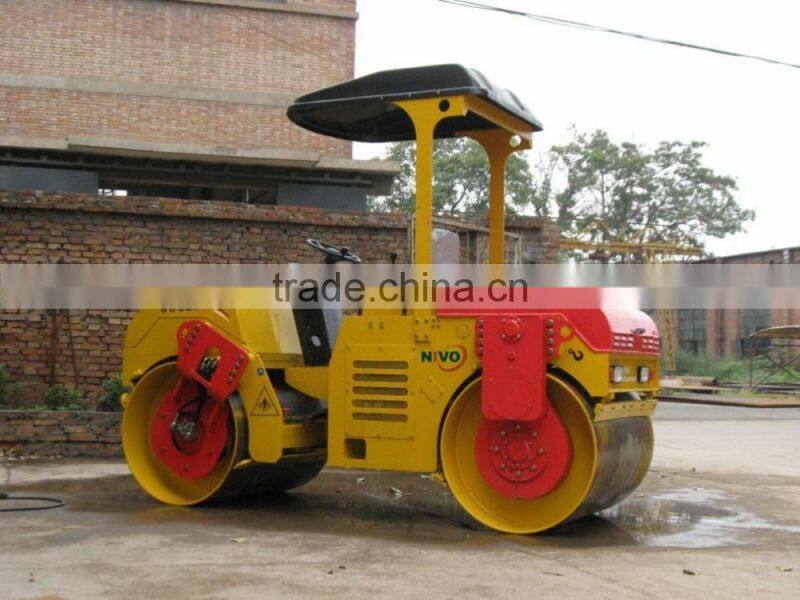

4 ton mini road roller JCC204 mini road roller compactor for sale

JCC204 Double Drum Vibratory Rollers

The tandem vibratory rollers are small-size tandem vibratory roller, applied to mending and maintaining various roads, expressway shoulder, side walk, parking area, sports ground and garden lawn. They are especially suited for compaction of narrow areas as pipeline channel and drainage trench etc.

Main Features

1.Adopt ZN390Q engine manufactured by Changchai Co.,Ltd. with good starting performance.

2.The rear-drum drive with side gear transmission and vibration in the front drum.

3.The front and rear frame articulated and power steering; Fork-type drum brackets with more than 600mm drum-side clearance.

4.The gearbox uses Japanese technology with easy gearshift; And three travel speeds posses good compaction and fast transportation.

5.Platform trailer as option.

6.Two the state patents.

TECHNICAL SPECIFICATIONS

Model: JCC204

Operating mass: 4000kg

Static linear load(F/R): 150/184N/cm

Vibration amplitude:0.5mm

Vibration frequency: 50Hz

Centrifugal force: 39kN

Max.travel speed:8km/h

Gradeability: 20%

Turning radius: 6000mm

Drum width: 1200mm

Drum diameter:900mm

Wheelbase:2200mm

Ground clearance:300mm

Diesel engine model: ZN390Q

Diesel engine power: 22kW

Overall dimensions: 3180*1420*2650mm
