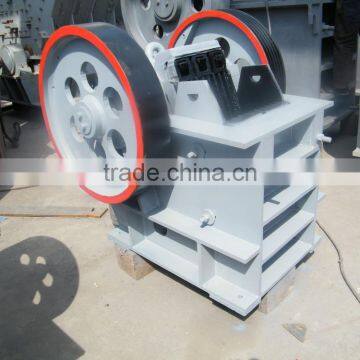

50t/h Jaw crusher,AMEC jaw crusher
- 100 Set / Sets per Month
- Shanghai or as clients requirements
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
Condition | New | Type | Jaw Crusher | |
Application | Mining | Motor Type | AC Motor | |
Power(W) | 55kw | Capacity(t/h) | 50-100tph | |
Place of Origin | Jiangsu, China | Brand Name | AMEC | |
Model Number | PE500*750 | Dimension(L*W*H) | 1890*1918*1870mm | |
Weight | 10.1 | Certification | ISO9001:2008 | |
Warranty | 1 Year | After-sales Service Provided | Overseas service center available |
Product Description
Jaw crusher is a type of effective and energy conservation crushing machinery. Medium and large scale jaw crusher is main product of AMEC.and we have reached international level on designing and producing large scale crusher. Jaw crusher is main applied in all kinds of ore and big block material medium size crushing, material's hardness should be less than 320Mpa, coarse crushing and fine crushing are available. This series has a complete range of specifications, feeding size could be 125mm~750mm, it's the first choice of primary crushing. Jaw crusher could be widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industries
Working Principle of Jaw Crusher:
Motor drives eccentric shaft rotating by belt pulley, moving jaw is forced to move to or leave from fixed jaw, material will be squeezed, twisted and been grinding, material will be crushed to smaller size and final product will fall down and discharged from discharge port.
Jaw Crusher Technical Data:
Model | Size of Feed Opening(mm) | Max Feeding Size(mm) | Adjustable Size of Discharge Opening(mm) | Capacity(t/h) | Motor Power Pole | Power(kw) | Dimension(mm) | Weight(t) |
PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 4 | 5.5 | 670×820×760 | 0.81 |
PE-150×750 | 150×750 | 125 | 10-40 | 5-16 | 4 | 15 | 1050×1490×1055 | 3.8 |
PE-250×400 | 250×400 | 210 | 20-60 | 5-20 | 4 | 15 | 1160×1300×1240 | 2.8 |
PE-400×600 | 400×600 | 350 | 40-100 | 16-65 | 6 | 30 | 1480×1710×1646 | 7 |
PE-500×750 | 500×750 | 425 | 50-100 | 45-100 | 6 | 55 | 1800×1796×1940 | 12 |
PE-600×900 | 600×900 | 500 | 65-140 | 60-160 | 6 | 75 | 2235×2210×2380 | 17 |
PE-750×1060 | 750×1060 | 630 | 80-160 | 90-320 | 8 | 110 | 2430×2302×3110 | 29 |
PE-800×1060 | 800×1060 | 640 | 80-200 | 110-350 | 8 | 110 | 2530×2310×3110 | 30 |
PE-900×1200 | 900×1200 | 750 | 95-210 | 140-450 | 8 | 130 | 3789×2826×3025 | 50 |
PE-1000×1200 | 1000×1200 | 850 | 110-235 | 160-550 | 8 | 160 | 3889×2826×3025 | 57 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 8 | 220 | 4590×3342×3553 | 100.9 |
PEX-250×750 | 250×750 | 210 | 25-60 | 15-30 | 6 | 22 | 1750×1500×1420 | 5 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 6 | 30 | 1940×1650×1450 | 7 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-65 | 6 | 37 | 1940×1850×1450 | 7.7 |
PEX-300×1300 | 300×1300 | 250 | 25-70 | 25-90 | 6 | 55 | 2285×2000×1720 | 11 |
Nude packing for the main machine
Wooden case for the power motor and spare parts
We have office oversea we can easy to privide the csutomer about befroe sales service, machine quality control service ,technical support and after service.
