16mm 200m Yellow Color Fiberglass Duct Rods Like Snake Sharp
- SHANGHAI
- T/T D/P D/A
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | BCD | Application | cable push pull, power construction | |
| Surface Treatment | exterior coating | Technique | pultrusion | |
| Dimensions | Dia 16mm |
Product Description

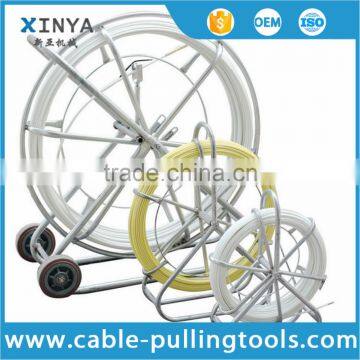

16mm 200m Yellow Color Fiberglass Duct rods Like Snake Sharp
Application

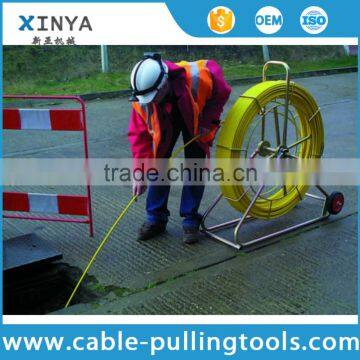

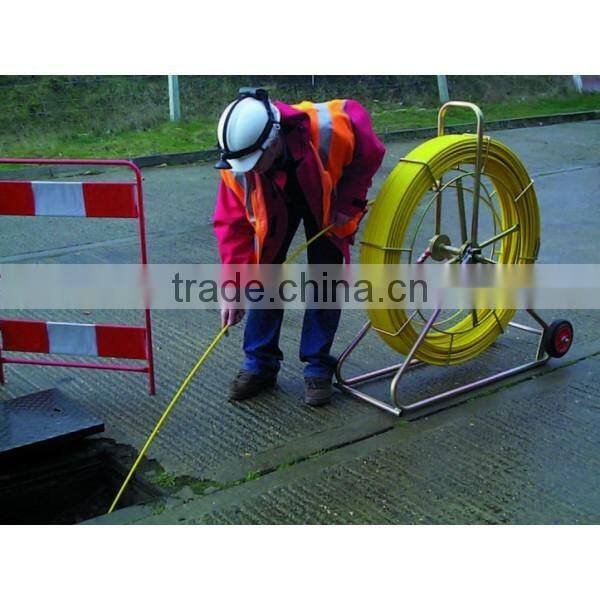

1.Used to install pulling ropes and winch ropes into ducts,ready for cable pulling operations.
2.Fiberglass rod is lightweight and flexible.
3.Dia of duct rod:4.5mm;6mm;8mm;9mm;10mm;11mm;12mm;13mm;14mm;15mm;16mm
4.Length of pulling rod:100m/ 150m/ 200m;
Features
1.Strong non-conductive fiberglass rod construction
2.Stainless steel drawing head
3.For longer conduit runs and underground duct
4.Rugged tubular steel reel with adjustable position.
5.Feed device allows rod to feed out or be wound back onto reel with easy pushi or pull of rod.
6.Duct rods/duct rodders have Many applications, not only pulling the cable but also pulling electric tools, and it repair is very easy, and available.
Technical Data
Specification | Rod Diameter (mm) | Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16 |
Rod Length (m) | 30~500 | |
Frame Spec.(mm) | 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc | |
Wheel Diameter(mm) | 300mm | |
Wall thickness of Metal Frame | 2.2mm | |
Color | blue, yellow, red, white etc | |
Material | Rod Inner | Extruded by fiber glass and high strength resin at high temperature |
Rod Outer | High Density polyethylene coating | |
Iron Frame | Steel with high-temperature sprayed plastic or Spray coating | |
Wheel | rubber | |
Brake | Yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending Radius | 295mm | |
Technology | Pultrusion | |
Packaging | Inside | plastic woven strip wind around the frame |
Outside | Wooden pallet and Wooden box |

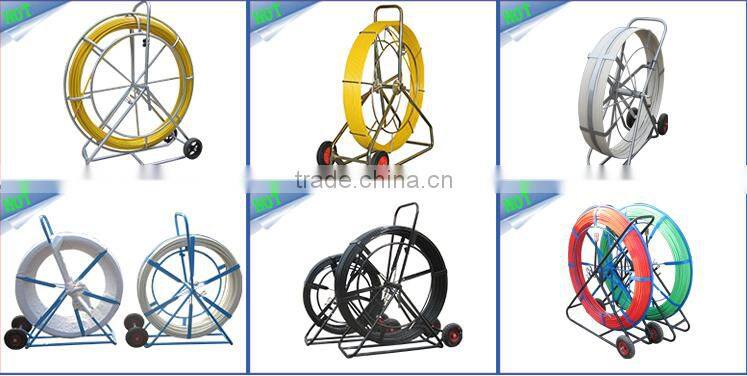

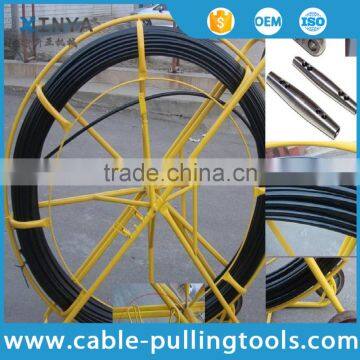

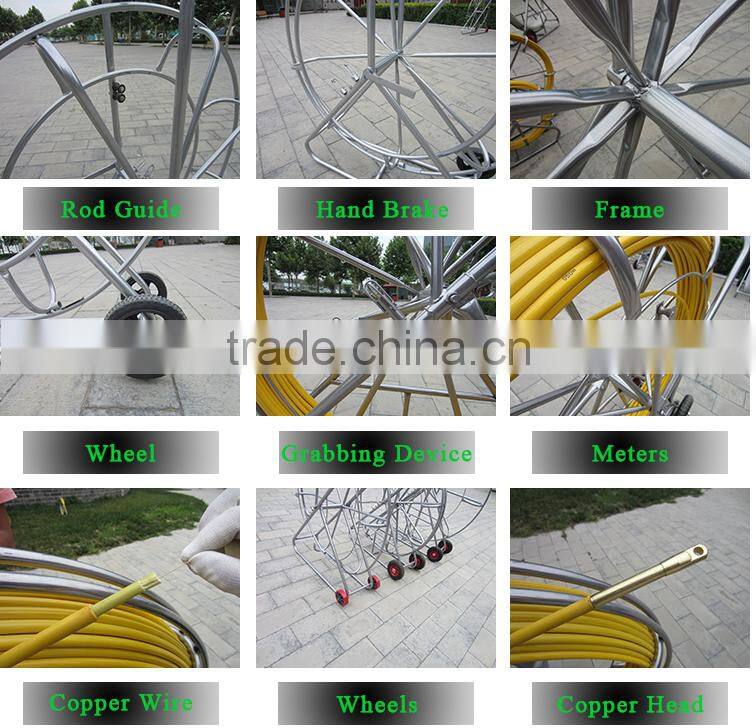

Detailed Images
Application
