Anti Twisted Pilot Rope Hexagon with 12 strands galvanized
USD $1 - $3
/ Meter
1000 Meters(Min.Order)
- 10000 Meter / Meters per Month
- Shanghai
- T/T
You May Like
Product Details
| Steel Grade | High Carbon Steel, steel | Standard | GB | |
| Wire Gauge | 5.5-20mm, 9mm-28mm | Place of Origin | Jiangsu, China | |
| Type | Other, Galvanized, anti twisted steel wire rope | Application | Construction | |
| Special Use | Cold Heading Steel | |||
| Model Number | NT HT ST, Hexagon with 12 strands & 18 strands | Brand Name | XINYA |
Product Description

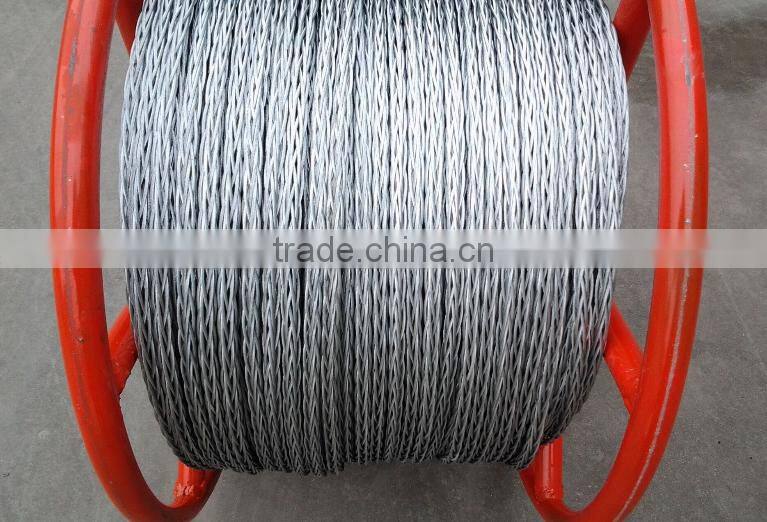

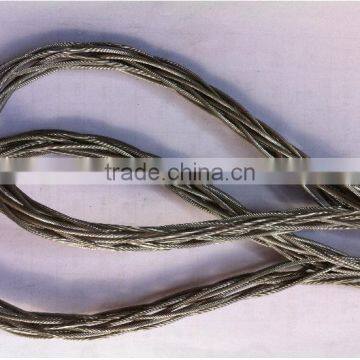

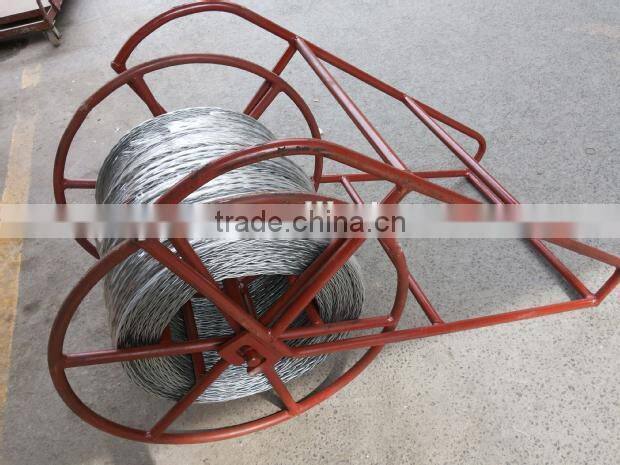

Anti Twisted Pilot Rope Hexagon with 12 strands galvanized
Application
It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.
Features
- The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
- The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.
- Hexagon is more suitable for puller, tensioner,winch, hoisting etc .
Technical Data
| Model | Structure | Nominal Dia (mm) | Single bundle Dia (mm) | Ref Weight (kg/100m) |
Breaking Force(KN) | Standard Length (m) | |
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 | |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 | |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 | |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 | |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 | |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 | |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 | |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 | |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 | |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 | |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 | |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 | |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 | |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 | |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 | |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 | |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 | |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Note:
The single length of rope can be made according to your requirement.
