Home > Products > Anti-Twist Wire Rope > Anti Twisted Steel Wire Rope Hexagon 12 Strands 18 Strands
Anti Twisted Steel Wire Rope Hexagon 12 Strands 18 Strands
US$ 1 - 3
/ Meter
1000 Meters(Min. Order)
- Shanghai
- T/T
You May Like
-
Galvanized Anti-twisting Braided Wire Rope
-
Anti-twisting Knitted Wire Rope
-
Anti-twisting Woven Steel Wire Rope
-
Anti-twisting Knitted Steel Wire Rope
-
Anti Twisted Braided Steel Wire Rope Six Squares Twelve Strands Transmission Line Stringing
-
Used In Pulling Conductor Square 12 Strands Galvanized Anti-twisting Braided Steel Wire Rope
Product Details
| Steel Grade | High Carbon Steel, steel | Standard | GB | |
| Wire Gauge | 5.5-20mm, 9mm-28mm | Place of Origin | Jiangsu, China | |
| Type | Other, Galvanized, anti twisted steel wire rope | Application | Construction | |
| Special Use | Cold Heading Steel | |||
| Model Number | NT HT ST, Hexagon with 12 strands & 18 strands | Brand Name | XINYA |
Product Description

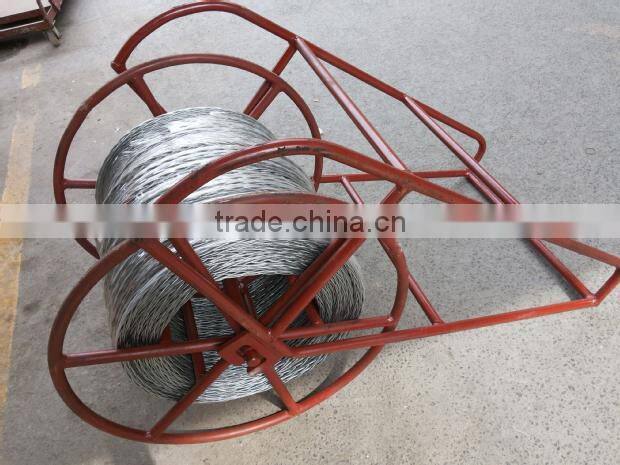

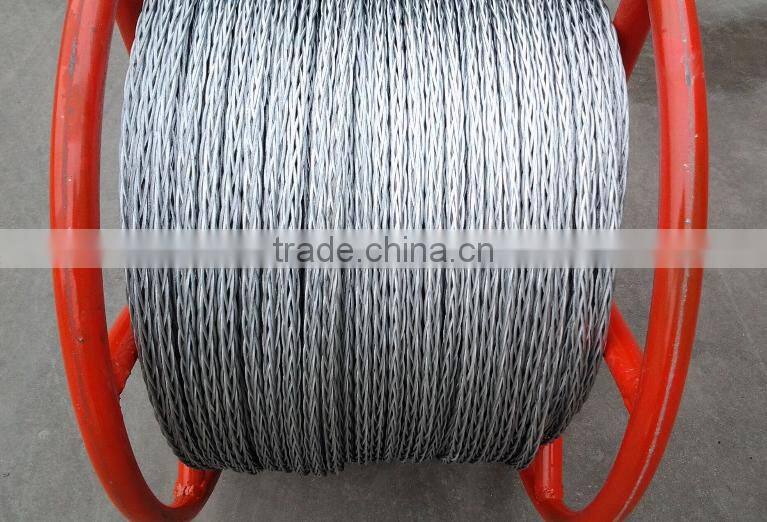

Anti Twisted Steel Wire Rope Hexagon 12 strands 18 strands
Application
It is specially braided from galvanized steel wire and widely used as pilot rope in overhead power transmission line stringing operation.
Features
- The rotation angle is zero,and the combined rotation torque is also zero while it is bearing tension at free state .It is suitable to be used in various fields which require wire rope with no rotation .
- The wire rope has fine flexibility with long using life .There is no twist and no tangling up when the tension released. You can change the length and repair local damage by grafting ,which will not reduce the flexibility.
- Hexagon is more suitable for puller, tensioner,winch, hoisting etc .
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Our Values
1:Take First-Class Quality as Target and First-class Service.
2:As Responsibility, To Succeed By Scientific Management.
3:Customer in Heart, Quality in Hand, Technology in the Lead.
Technical Data for Anti Twisted Steel Wire Rope Hexagon 12 strands 18 strands
| Model | Structure | Nominal Dia (mm) | Single bundle Dia (mm) | Ref Weight (kg/100m) |
Breaking Force(KN) | Standard Length (m) | |
| HL9-12×19W | Hexagon with 12 strands | 9 | 2.0 | 26.69 | 55.0 | 1000 | |
| HL11-12×19W | Hexagon with 12 strands | 11 | 2.5 | 45.73 | 80.5 | 1000 | |
| HL13-12×19W | Hexagon with 12 strands | 13 | 3.0 | 57.96 | 120.0 | 1000 | |
| HL16-12×19W | Hexagon with 12 strands | 16 | 3.5 | 82.80 | 158.0 | 1000 | |
| HL18-12×19W | Hexagon with 12 strands | 18 | 4.0 | 103.82 | 210.0 | 1000 | |
| HL20-12×T25Fi | Hexagon with 12 strands | 20 | 4.5 | 129.62 | 250.0 | 800 | |
| HL22-12×T25Fi | Hexagon with 12 strands | 22 | 4.8 | 147.88 | 320.0 | 800 | |
| HL24-12×T25Fi | Hexagon with 12 strands | 24 | 5.0-5.2 | 160.23 | 360.0 | 800 | |
| HL26-12×T25Fi | Hexagon with 12 strands | 26 | 5.5-5.6 | 193.71 | 420.0 | 700 | |
| HL28-12×T29Fi | Hexagon with 12 strands | 28 | 6.0 | 230.50 | 480.0 | 500 | |
| HL30-12×T29Fi | Hexagon with 12 strands | 30 | 6.5 | 272.04 | 540.0 | 500 | |
| HL20-18×19W | Hexagon with 18 strands | 20 | 4.0 | 159.80 | 300.0 | 800 | |
| HL22-18×T25Fi | Hexagon with 18 strands | 22 | 4.2 | 189.80 | 389.0 | 800 | |
| HL24-18×T25Fi | Hexagon with 18 strands | 24 | 4.8 | 216.20 | 440.0 | 800 | |
| HL26-18×T25Fi | Hexagon with 18 strands | 26 | 5.2 | 276.80 | 480.0 | 700 | |
| HL28-18×T29Fi | Hexagon with 18 strands | 28 | 5.4 | 301.20 | 580.0 | 500 | |
| HL30-18×T29Fi | Hexagon with 18 strands | 30 | 5.6 | 361.60 | 658.0 | 500 | |
| HL32-18×T29Fi | Hexagon with 18 strands | 32 | 6.0 | 423.00 | 780.0 | 500 |
Note:
The single length of rope can be made according to your requirement.
