Home > Products > Tower Erection Tools > Aluminium alloy Gin Pole Derrick Crane for Power Erection
Aluminium alloy Gin Pole Derrick Crane for Power Erection
USD $200 - $300
/ Unit
1 Unit(Min.Order)
- 1000 Unit / Units per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | LBN |
Product Description

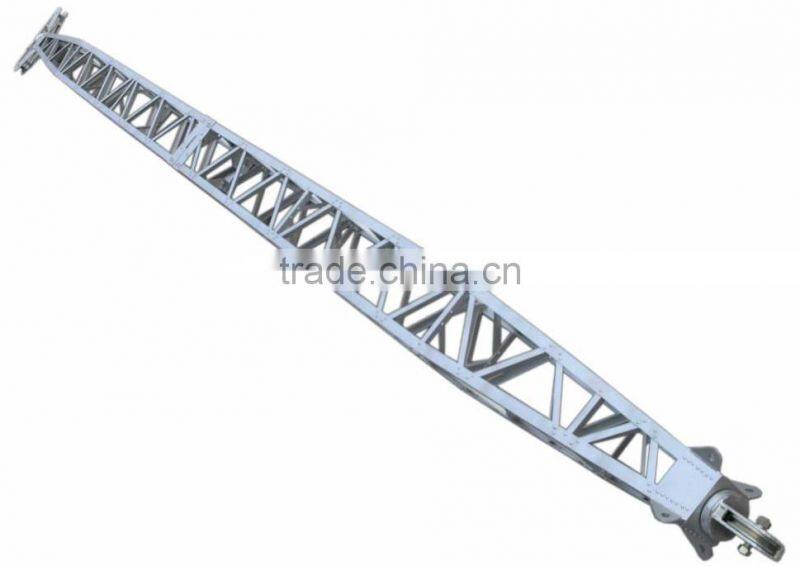

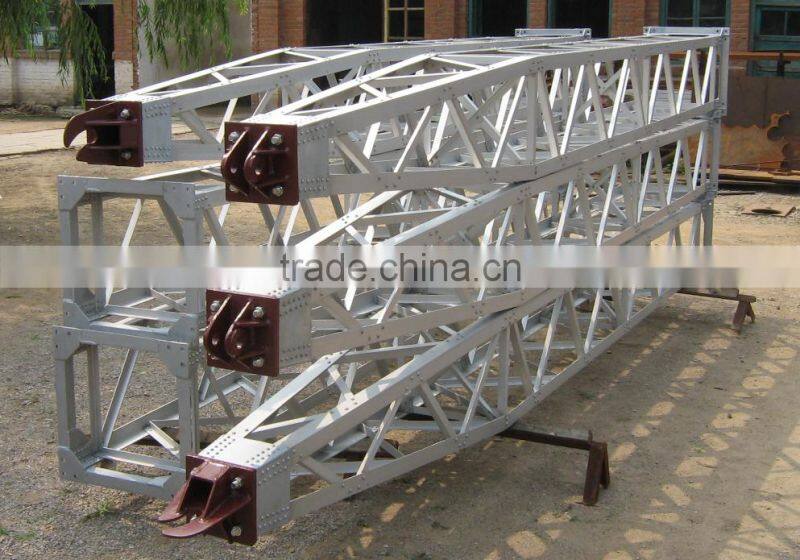

Product Name: Aluminium alloy Derrick Crane
Use and Characteristics:
During used for transmission and distribution line engineering, sling tower material, positioning pulley set use.
Adopt single-arm style, free from direction restriction, use convenience.
The main material adopts right angle aluminum titanium alloy section, rivet joint makes, portable and durable.
Technical Data
| Product NO. | Type NO. | Cross section(mm) | carrying capacity(KN) | weight(kg) |
| 80508 | LBN-10 | 250*250 | 20 | 70 |
| 80509 | LBN-11 | 250*250 | 19 | 75 |
| 80510 | LBN-12 | 250*250 | 16 | 80 |
| 80511 | LBN-13 | 250*250 | 13 | 85 |
| 80512 | LBN-11 | 300*300 | 29 | 110 |
| 80513 | LBN-12 | 300*300 | 24 | 115 |
| 80514 | LBN-13 | 300*300 | 22 | 120 |
| 80515 | LBN-14 | 300*300 | 18 | 125 |
| 80516 | LBN-15 | 300*300 | 16 | 130 |
| 80517 | LBN-11 | 350*350 | 40 | 120 |
| 80518 | LBN-12 | 350*350 | 33 | 125 |
| 80519 | LBN-13 | 350*350 | 30 | 130 |
| 80520 | LBN-14 | 350*350 | 24 | 135 |
| 80521 | LBN-15 | 350*350 | 21 | 140 |
| 80522 | LBN-12 | 400*400 | 43 | 155 |
| 80523 | LBN-13 | 400*400 | 38 | 160 |
| 80524 | LBN-14 | 400*400 | 32 | 165 |
| 80525 | LBN-15 | 400*400 | 28 | 170 |
| 80256 | LBN-16 | 400*400 | 25 | 180 |
| 80527 | LBN-17 | 400*400 | 22 | 185 |
| 80528 | LBN-18 | 400*400 | 19 | 190 |
| 80529 | LBN-19 | 400*400 | 16 | 195 |
| 80530 | LBN-20 | 400*400 | 14 | 200 |
