Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | SA-YZ30A | Type | Hydraulic Pullers |
Product Description

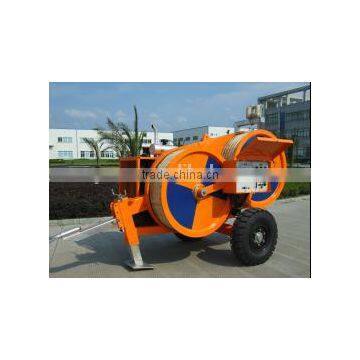

40KN Hydraulic Wire Conductor Tensioner
Application
40KN Hydraulic Wire Conductor Tensioner adequate to tension releasing various conducts and earthwires .and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS self–stand optic cable .etc .
Uses
It adequate to tension releasing various conductor and earthwires
Feature
1. Bullwheel with wearproof MC nylon lining segments.
2. infinitely variable tension control and constant tension conductor stringing .
3. spring applied hydraulic released brake acts automatically in case of hydraulic
failure to ensure safety
4. attached hydraulic power output interface to connect hydraulic reel stand .
Main component
1. Engine : Cummines water-cooled engine .
2. Main pump/motor :Rexroth (BOSCH)
3. Reducer :RR(Italian )
4. Hydraulic valve:Rexroth (BOSCH)
5. radiator:AKG
6. hydraulic instrument:WIKA
Technical Data
| Model Type | SA-YZ40A |
| Overall Size(MM) | 3400×1800×2400 |
| Weight(KG) | 2800 |
| Max Tension(KN) | 40 |
| Max Continual Tension(KN) | 35 |
| Bullwheel bottom of groove diameter | Φ1200 mm |
| Diameter of Tension wheel(mm) | 1200 |
| Number of grooves | 5 |
| Maximum pullback (KN) | 40 |
| Maximum suitable conductor diameter | 32 |
| Engine power /speed (kW/rpm) | 37/2800 |
Please tell us the following information in your enquiry:
1. Max Tension(KN) ?
2. Diameter of Tension wheel(mm) ?
3. Maximum suitable conductor diameter ?
4. Quantity?
We'll give you a good price after confirming the above info.
Welcome to contact us by phone or e-mail, if you are interesting in our products.
