Product Details
| Place of Origin | Jiangsu, China | Brand Name | XINYA | |
| Model Number | SA-YQ | Type | Hydraulic Pullers |
Product Description

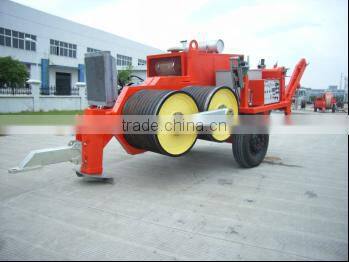

280KN Hydraulic Puller For Stringing Conductor 220KV or 500KV Overhead Line Tranismission
HYDRAULIC SYSTEM
Drive System: Hydraulic Drive & Control System: Hydraulic Control
Smooth speed & Stability pull & Stability Hydraulic drive.
Full enclosed and require minimal maintenance.
SAFETY
Reliable brake---automatic brake on neutral
Automatic stop when over-load
TECHINCAL DATA:
Max pull:280kN
Max continuous pull:250kN Corresponding speed:2.5km/h
Max pulling speed:5km/h Corresponding pull:125kN
STRUCTURE DATA:
Bull-wheel diameter: 960mm
Groove amount:10
Max rope diameter: 38mm
Max fix joint diameter:90mm
ENGINE
CUMMINS water-cold
Power:298kw/2100rpm
Electrical system:24V
REEL WINDER
Hydraulic drive
Automatic rope guiding device
Hydraulic lifting and lowering of reels for loading/unloading.
PULL WHEEL
Surface hardness: HRC50-55---Hard hardness, wear-resistant---long service life
COMPONENTS IMPORTED FROM GERMANY
Transfer case: STIEBEL
Main hydraulic pump: REXROTH
Main hydraulic handle: REXROTH
Main hydraulic motor: REXROTH
Hydraulic meter: WIKA
COMPONENTS IMPORTED FROM ITALY
Reducer: BONFIGLIOLI
Hydraulic valve: ATOS
Pull meter: FANTINELLI
Hydraulic pipeline system: MANULI
