30KN Stringing Electric Hydraulic Cable Puller For 220KV Overhead Line Transmission

FOB Price

US$ 18,000 - 20,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	XINYA
Model Number	SA-YQ		Type	Hydraulic Pullers

Product Description

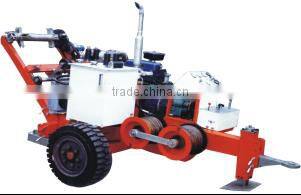

30KN Stringing Electric Hydraulic Cable Puller For 220KV Overhead Line Transmission

Hydraulic Puller Introduction

Hydraulic Puller is used for rolling steel rope in power overhead transmission, it work with the hydraulic tensioner.Through the two machines' cooperation and anti-twisting steel rope's pulling, conductor overhead tansmission becomes easy to reach the target.

1, this hydraulic puller is single bridge structure trailer.

2, the speed of the bull wheels can be varied stepless in both rotation directions. The pull can be controlled and be volume can be read on the dynamometer.

3, the max pull can be adjusted and equipped with overload protection system.

4, spring applied-hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.

5, with self-loading reel winder with automatic level wind,(hand work is also ok) to ensure that the wire can be evenly wound on the pilot wire reel.

6, hydraulic front jack and surge brake for axle.(can be chosen)

7, pre-heat unit to ensure the motor can be easily started in the cold weather.(can be chosen)

Technical Data

Product No.	020101
Type	WQT30-IV
Technology characteristics
Max pull(kn)	35
Max continuous pull(kn)	30
Corresponding speed(km/h)	2.5
Max pull speed(km/h)	5
Corresponding pull(kn)	15
Structure characteristics
Puller groove bottom diameter(mm)	300
Groove	7
Max reliable pulling rope diameter(mm)	13
Max fixed joint diameter(mm)	40
Overall dimensions(mm)	3200×1600×2000
Weight(kg)	2000
Main components
Engine	Cummins water cold
Power/rotating speed	77kw/2500rpm
Reducer	Bonfiglioli made in Italy
Main hydraulic pump	Rexroth made in Germany
Main hydraulic handle	Rexroth made in Germany
Hydraulic valve	Atos made in Italy
Main hydraulic motor	Rexroth made in Germany
Hydraulic meter	Wika made in Germany
Pull meter	Fantinelli made in Italy
Hydraulic pipeline system	Manuli made in Italy
Electrical System(v)	24
