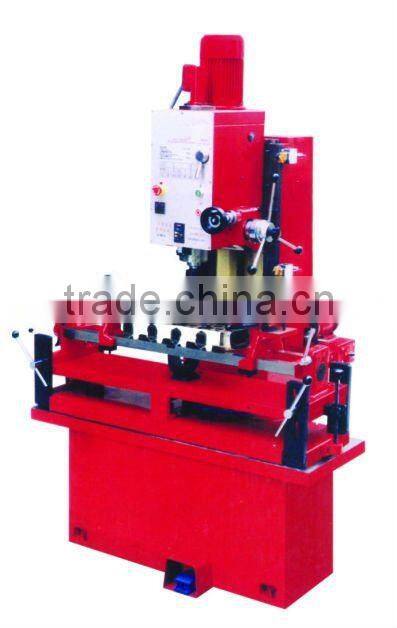

Gas Valve Seat Boring Machine

FOB Price

US$ 3,500 - 15,980 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New		CNC or Not	Normal
Brand Name	TIMAC		Model Number	T8590A

Gas Valve Seat Boring Machine ( T8590A )

Application:

*The machine tool is special equipment for repairing and boring the seat retainer hole of engine valve.

*The boring head case body and main shaft adopt the progressive flotation technology with the features of

immediacy exact centering, reliable repairing boring quality, handiness and high operation efficiency.

*It can process various cylinder covers and multi-angular valve seat retainer holes.

Feature:

1. The machine tool suits the needs of various cylinder cover for every engine.

2. It can manufacture the gas valve seats hole for cylinder cover with various angles.

3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.

4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.

5. It can be widely used with many knives and Positioning Mandrel.

6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.

7. Equipped with cutter grinder, it has long use life and cost-saving.

Parameter:

Specification		T8590A	T8590B
Boring dia.		φ20mm-φ90mm
Spindle speed range		55,85,210,320,370,550 r.p.m	30-550(stepless)
Spindle travel		180mm
Distance from spindle axis to guideway surface		270mm
Max. distance from end ofspindle to working table		750mm
Moving speed of machine head		512mm/min
Moving range of machine head	Cross	120mm
	Longitudinally	860mm
Main motor power		1.1/0.85kw 1400/950rpm
Overall dimension(LxWxH)		1300x800x1930mm
Packing dimension(LxWxH)		1700x1100x2000mm
N.W/G.W		1200/140kg

Zhengzhou Timeway Machine Tool Co., Ltd.: Contact nameDavid Cheung
Chat Now; Phone86-371-60308992; Address4-1702, 32# NORTH JINGSAN ROAD, ZHENGZHOU, HENAN,CHINA, Zhengzhou, Henan
