Brake Lathe C9370C / Brake Drum Lathe / Brake Disk Lathe
- China Port
- T/T Credit Card PayPal
You May Like
-
20~90mm Boring Dia./ Gas Valve Seat Boring Machine / T8590A
-
170mm Honing Dia./ Vertical Cylinder Honing Machine / THM170
-
36-150mm Boring Dia./ Cylinder Body Bushing Boring Machine / T8115
-
20-160mm Boring Dia./ Con-Rod Boring Machine / TM8216
-
Cylinder Block Grinding & Milling Machine / 3M9735A
-
24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108
Product Details
| Place of Origin | Henan, China | Brand Name | TIMAC | |
| Model Number | C9370C | Condition | New |
Product Description
Specifications
1. Brake drum lathe;2. Change Adapter system;
3. 3kinds of spindle speed;
4. electric DC servo motors;
Brake Drum Lathe C9370C
Features:
1. The lathe uses precision electric DC servo motors design to meet the demanding requirement of industrial motion control.
2. The “Change Adapter” system eliminates the need for conventional bell clamps and cones and features built-in springs ensure you don’t lose them.
3. The precision twin cutter tools and a quick drum to rotor changeover to help increase your service capability.
4. Infinitely variable spindle and cross feed speed settings allow quick rough and precision finish cutting.
5. A convenient top storage tray means you can easy to take your favorite adapters and tools.
6. Separate motors on the drum and rotor feed can maximize the main motor’s efficiency.
7. The variety of adapters lets the standard or composite rotors for foreign & domestic cars and light trucks.
8. Positive rake cutter tip angle provides for a one pass finish virtually every time, wich has the high efficiency.
| Specification | C9350 | C9350C | C9370 | C9370C |
| Spindle Travel | 6-7/8” (175mm) | 9.875" (251mm) | ||
| Spindle speed | 70,88,118 rpm | 70,88,118 rpm | ||
| Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | - | 0.002"-0.02" (0.05-0.5mm)Rev | - |
| Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | - | 0.002"-0.01" (0.05-0.25mm)Rev | - |
| Handwheel graduations | 0.002"(0.05mm) | - | 0.002"(0.05mm) | - |
| Rotor diameter | 7" -15" (180mm-381mm) | 7" -18" (180mm-457mm) | ||
| Rotor thickness | 1-7/8” (48mm) | 4" (102mm) | ||
| Drum diameter | 6" -28" (152mm-711mm) | 6" -28" (152mm-711mm) | ||
| Drum depth | 6-7/8" (175mm) | 9.875" (251mm) | ||
| Motor | 110V/220V/380V,50/60HZ | 110V/220V/380V,50/60HZ | ||
| Gross weight | 290 kg | 400 kg | ||
| Dimension (L×W×H) | 970×920×1140mm | 1100mm ×1070mm×1140mm | ||
Optional Adapter:

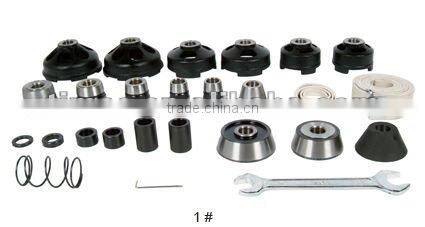

1# (26 pcs) Adapter Kit for 1/2 Ton

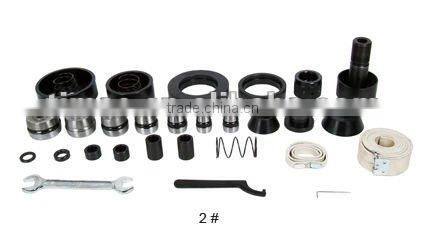

2# (28 pcs) Adapter Kit for 3/4 Ton

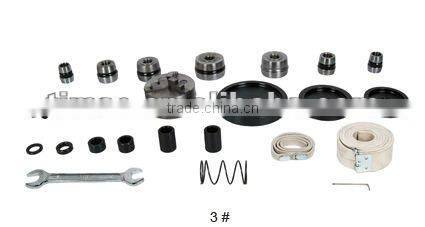

3# (23 pcs) Adapter Kit for 1 Ton
