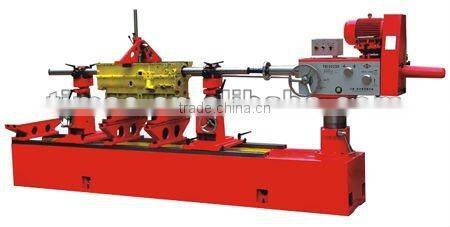

36-150mm Boring Dia./ Cylinder Body Bushing Boring Machine / T8115
- 65 Set / Sets per Month
- China Port
- T/T Credit Card PayPal
You May Like
-
20-160mm Boring Dia./ Con-Rod Boring Machine / TM8216
-
Cylinder Block Grinding & Milling Machine / 3M9735A
-
24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108
-
Cylinder Body Bushing Boring Machine -- T8115
-
Brake Drum Lathe / Brake Disc Lathe C9350
-
C9372 Brake Drum Lathe / Disc Brake Lathe Machine
Product Details
| Condition | New | CNC or Not | Normal | |
| Brand Name | TIMAC | Model Number | T8115 |
Product Description
Specifications
Cylinder Body Bushing Boring Machine1.Boring dia.:36-150mm
2.Boring shaft feed:0.044, 0.167 r.p.m
3.CE norms.
36-150mm Boring Dia./ Cylinder Body Bushing Boring Machine / T8115
Features:
Cylinder Body Bushing Boring Machine
1. This machine is used for boring master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc.
2. With long travel of tool feeding, which can improve the work efficiency and coaxial of bored bushing.
3. The boring bar is special heat treatment, which can improve the rigidity and hardness of the boring bar and working precision availably.
4. The auto-feeding system adopts stepless adjusting, suits for processing all kinds of materials and hole diameter of the bushing.
5. With special measuring device, it is easily to measure the work piece.
Parameter:
Specification | T8115 | T8120 |
Range of hole diameter to be bored | φ36-Φ150mm | φ36-φ200mm |
Max. length of cylinder body to be bored | 1600mm | 2000mm |
Main shaft max. elongation | 300mm | 300mm |
Main shaft rotating speed(6 steps) | 210-945rpm | 210-945rpm |
Boring shat feed | 0.044, 0.167mm/r | 0.044, 0.167mm/r |
Motor power | 0.75/1.1kw | 0.75/1.1kw |
Overall diemension(LxWxH) | 3500x800x1500mm | 3900x800x1500mm |
Packing diemension(LxWxH) | 3650x1000x1600mm | 4040x1020x1600mm |
N.W/G.W | 1900/2200kg | 2200/2500kg |
