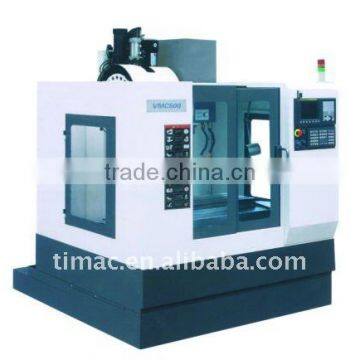

Vertical Machining Center/CNC Vertical Machining Center VMC500
- 100 Set / Sets per Month
- China port.
- T/T Credit Card PayPal
You May Like
Product Details
Condition | New | Type | Vertical | |
Place of Origin | Henan, China | Brand Name | TIMAC | |
Model Number | VMC500 | Voltage | As request | |
Power(W) | 3.7/5.5kw | Dimension(L*W*H) | 1600x1840x2110 | |
Weight | 2600kg | Certification | CE,ISO | |
Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1. CNC vertical machining center;2. FANUC 0i mate-MD CNC system;
3. Umbrella type magazine.
Specification | Unit | VMC500 |
X-axis travel | mm | 500 |
Y-axis travel | mm | 320 |
Z-axis travel | mm | 500 |
Spindle nose to table | mm | 125-520 |
Spindle center to column guideway face | mm | 360 |
Rapid feeding of X,Yaxis | mm/min | 24000 |
Rapid feeding of Z axis | mm/min | 1800 |
Feeding speed | mm/min | 1-5000 |
Table size | mm | 800x320 |
Max. loading capacity of table | kg | 300 |
T-slot NO./width distance of table |
| 3/14/100 |
Spindle max.speed | r/min | 10000 |
Main motor rated power | kw | 3.7/5.5 |
Spindle nose taper |
| BT30 |
Magazine capacity | pcs | 10 |
Magazine style |
| Umbrella |
Max. diameter of tool | mm | 60 |
Max. length of tool | mm | 200 |
Max. weight of tool | kg | 5 |
Pneumatic press | mpa | 0.6 |
N.W | kg | 2600 |
Overall dimension(LxWxH) | mm | 1600x1840x2110 |
Standard accessories:
FANUC 0i mate-MD CNC system.
High precision and speed spindle unit
Umbrella type magazine
Floating tools clamping system
Separated type electronic hand wheel(MPG)
RS232 interface
Oil and water separated design
Interval auto-lubricating
Full splash guard
Tricolor alarm light
3-axis liner guide-ways
