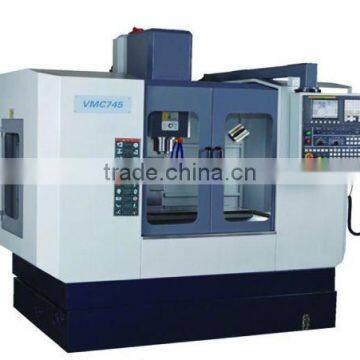

CNC Vertical Machining Center

FOB Price

USD $30,000 - $50,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Vertical Machining Center (VMC)

Features:

1. FANUC 0i mate-MD CNC system;

2. High precision and speed spindle unit;

3. Umbrella type magazine;

4. Floating tools clamping system;

5. Separated type electronic hand wheel (MPG);

6. RS232 interface;

7. Oil and water separated design;

8. Interval auto-lubricating;

9. Full splash guard;

10. Tricolor alarm light;

11. 3-axis linear guide-ways.

Model	Unit	VMC745
X-axis travel	mm	600
Y-axis travel	mm	450
Z-axis travel	mm	500
Spindle nose to table	mm	130-630
Spindle center to column guideway face	mm	485
Rapid feeding of X,Y axis	mm/min	24000
Rapid feeding of Z axis	mm/min	18000
Feeding speed	mm/min	1-5000
Table size	mm	800x450
Max. loading capacity of table	kg	550
T-slot NO./width/distance of table		3/18/160
Spindle max. speed	r/min	8000
Main motor rated power	kw	5.5/7.5
Spindle nose taper		BT40
Magazine capacity	pcs	16
Magazine style		Umbrella
Max. diameter of tool	mm	80
Max. length of tool	mm	300
Max. weight of tool	kg	6
Pneumatic press	mpa	0.6
N.W	kg	3500
Overall dimension (LxWxH)	mm	2500x2000x2450
