Vertical Machining Center (VMC)
- 300 Set / Sets per Month
- China port
- T/T
You May Like
Product Details
| Condition | New | Type | Vertical | |
| Brand Name | TIMAC | Model Number | VMC846, VMC1050 |
Product Description

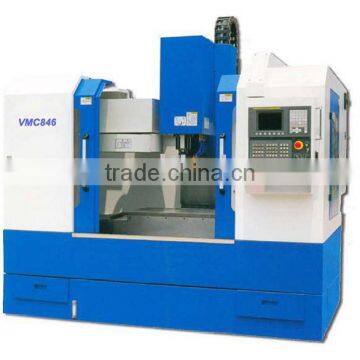

Vertical Machining Center (VMC)
Features:
1. Taiwan HIWIN linear guideways for X,Y axes, sliding guideway for Z axis, to make sure the machining accuracy and rigidity;
2. Taiwan high speed, high precision spindle unit (8000rpm);
3. Taiwan tool magazine with 16 stations, reliable and quick for tools exchange;
4. Cooling system adopts large fluid and high pressure coolant pump, to make sure the enough cooling under the high speed processing condition;
5. The machine adopts full close type protection guard; make the clean circumstance and safety of the operator.
6. Interval automatic type lubrication system is equipped, to make sure smooth process and long life.
Model | Unit | VMC846 | VMC1050 |
Table tavle(X,Y,Z) | mm | 800x460x500 | 1000x510x510 |
Table size | mm | 800x460 | 1100x510 |
Number/Width/Distance of T-slot | mm | 3-18-150 | 5-18-100 |
Max. load of table | kg | 500 | 800 |
Distance from spindle nose to table surface | mm | 150-650 | 120-630 |
Distance from spindle axis to vertical guideway | mm | 510 | 600 |
Rapid feed speed | m/min | 18 | 18 |
Feed speed | mm/min | 2-4000 | 2-4000 |
Taper of spindle |
| BT40 | BT40 |
Spindle speed range | rpm | 40-8000 | 40-8000 |
Spindle motor power | kw | 7.5 | 7.5/11 |
Tool magazine capacity | pc | 16 | 16 |
Max. weight of tool | kg | 8 | 8 |
Max. dimension of tool | mm | 130x250 | 130x250 |
Positioning accuracy | mm | ±0.015 | ±0.012 |
Repeat positioning accuracy | mm | ±0.0075 | ±0.005 |
Min. time of tool exchange | sec | 3 | 3 |
Overall dimension | mm | 2500x2260x2300 | 2900x2260x2620 |
Machine weight | kg | 4650 | 5870 |
Standard items:
FANUC 0i mate MD controller;
FANUC servo main motor;
FANUC servo feed motors on three axes;
Taiwan 16 stations armless type tool magazine;
RS232 I/O interface;
Movable electronic handwheel (MPG);
Spindle blowing chips system;
Work light;
Tricolor alarm light;
Tools;
Foundation bolts;
Operational manuals(Mechanical & Electric parts).
Optional items:
FANUC 0i MD controller;
Siemens controller;
MITSUBISH controller;
China made GSK controller;
The 4th axis;
Taiwan 24 stations arm type tool magazine;
Automatic chip conveyor.
