Home > Products > Construction Machinery > cheap heavy construction 3.5m3 bucket china 6 ton wheel loader price

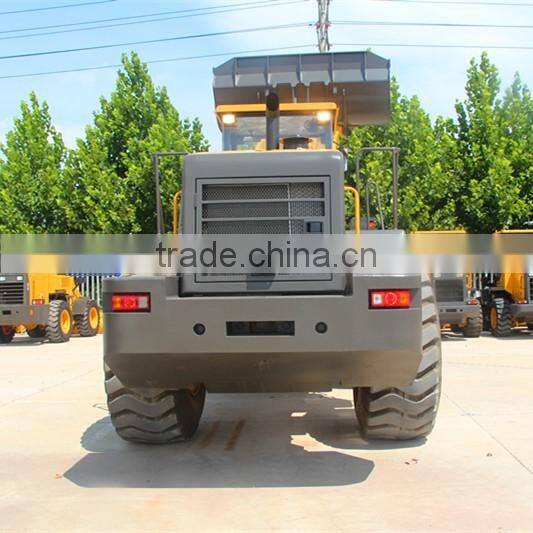

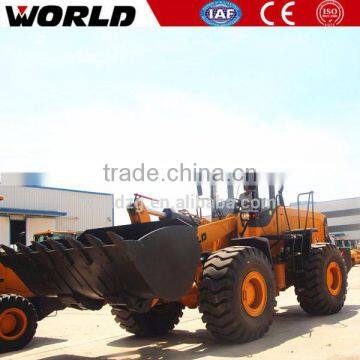

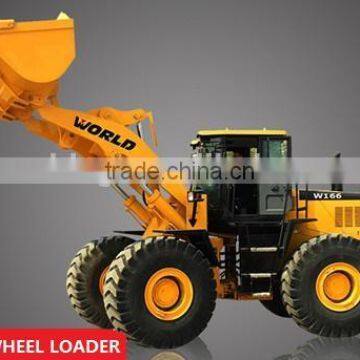

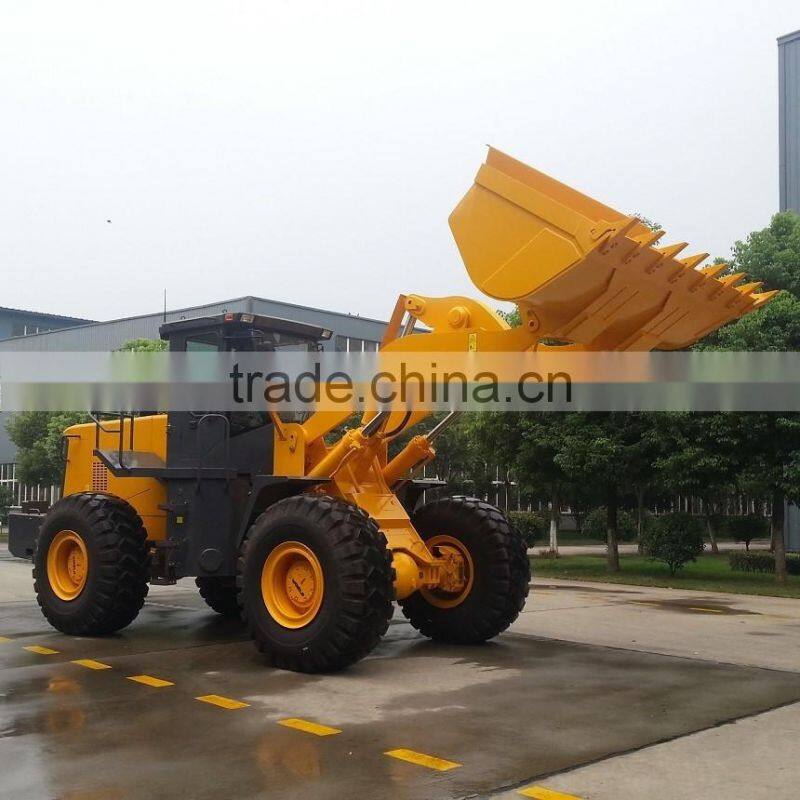

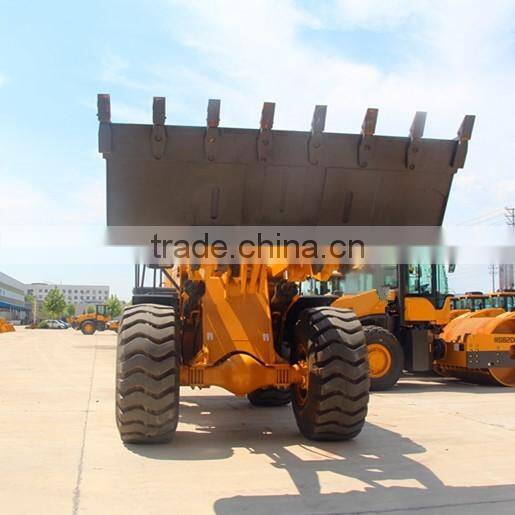

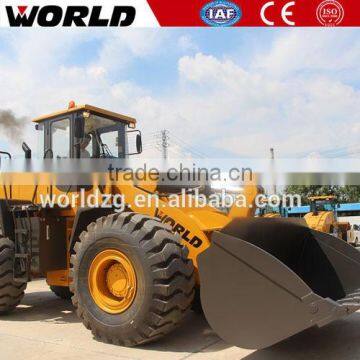

cheap heavy construction 3.5m3 bucket china 6 ton wheel loader price
- 1000 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
factory construction machinery mini china 3ton wheel loader zl30 price
-
cheap Price of W156 3m3 bucket chinese road construction wheel loader for sale
-
CE Approved Chinese new 2ton to 6 ton mini wheel Loader price for sale
-
Heavy equipment chinese 5T front end mini wheel loader for sale
-
CE approved new small mini chinese wheel loader for sale
-
Chinese world loader W156 5 ton mini front end wheel loader for sale
Product Details
| Condition | New | Brand Name | World | |
| Model Number | W160 | Place of Origin | Jiangsu, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 8075x2980x3500mm | Rated Load | 6000kg | |
| Certification | ISO, CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
construction machines
6 ton wheel loader, construction machines
Main Features:
1) Power shift planet type gearbox designed for 6 ton loader guarantees more reliable operation.
2) More reasonable assignment of axle load guarantees better stability of the whole machine.
3) Dual pump confluence, steering priority, and heavy duty unloading hydraulic system improve the whole machine performance.
4) Extended distance between hinge joints, with good structural rigidity and large maintenance space.
5) Optimized linkage mechanism designed with emulation techniques is of large breakout force.
6) Spacious cabin designed according to ergonomic theory ensures excellent view.
7) Comfortable air conditioning system with rational and elegant design ensures excellent driving environment.
Specification List
Performance | Rated load | 6000kg |
Operation weight | 19000kg | |
Bucket capacity | 3.5cbm | |
Maximum tractive force | 152KN | |
Maximum breakout force | 170KN | |
Maximum grade ability | 30 degree | |
Maximum dump height | 3150mm | |
Maximum dump reach | 1250mm | |
Overall dimension (L×W×H) | 7980×3050×3450mm | |
Minimum turning radius | 6640mm | |
Engine | Engine model | Shangchai SC11CB240 (CAT C6121) |
Type | lnline water cooling dry cylinder injection | |
No. of cylinder-bore x stroke | 6-126×130mm | |
Rated power | 175kw--2400r/min | |
Maximum torque | 860N.m | |
Min fuel-consume ratio | 215g/kw.h | |
Transmission | Torque converter | YJ375 |
Gearbox mode | ZL60 planet type gearbox | |
Gear shift | 2F/1R | |
Maximum speed | 38km/h | |
Main reducer | bevel gear grade 1reduction | |
Hub reducer | planetary reduction, grade 1 | |
Wheel base (mm) | 3200mm | |
Wheel tread | 2250mm | |
Minimum ground clearance | 450mm | |
Hydraulic system | System working pressure | 18MPa |
Boom lifting time | 5.95±0.2s | |
Total hydraulic circle time | 10.95±0.5s | |
Fuel tank capacity | 300L | |
Brake system | Service brake | air over hydraulic oil, disc brake on 4 wheels |
Parking brake | manual parking brake | |
Tyre | Tyre size | 26.5-25 |
Front tyre pressure | 0.4Mpa | |
Rear tyre pressure | 0.35Mpa |
m3 bucket chinese road construction mini wheel loader for sale
|
Engine SystemBrand: Shangchai SC11 (CAT C6121) Power: : 175KW No. of cylinders: 6 Water cooling, turbocharged, 4 strokes, global warranty. |
| Articulated framesThe front frame is connected with the rear frame by pins and bearings. The space is big which is easy for maintenance. The high precision of hole boring makes it easy to connect the articulations. High quality temperature treatment ensures the hardness of the pins. In this way, the loader can be operated smoothly with lower fuel cost. |
| Cabin and operationThe standard spacious cabin is equipped with shock absorbing seat, radio and air conditioner. The optimized Seating System is 6-way adjustable to accommodate operators of all sizes. The seat has a one piece high back that supports the lumbar area of the back up through the shoulders. The steering column can be adjusted too. And the cabin is mounted to the frame with hydraulic damper which decrease the noise and vibration. |
| Transmission SystemGearbox: ZL30 planet type |
chinese construciton machinery 5ton 3m3 bucket wheel loader price 950h
World machinery develop and manufacture construction machines for more than decades: wheel loaders,excavators,road rollers,skid steer loaders,backhoe loaders, bulldozers,We have clients in
South America:Peru,Brazil, Argentina,Chile
Middle East:Iran, Saudi, Qatar,Doha,Iraq, Sultan, UAE, Mauritania, Algeria, Libya,
Central Asia:Kyrghyzstan,Kazakhstan
Southeast Asia:Thailand,Indonesia, the Philippines,
Africa:South Africa, Zambia
US/Canda
Europe:Russia,Romanina, Austria, Australia
-one unit per 40HQ container
-disassemble the bucket, axle, tyres and cabin
-easy to assemble at buyer's side as all are bolted on
Q1. Are you manufacturer or trader?
A: World is a group company and World is TOP500 Private Company in China. We are manufacturer of construction machines, agriculture machines and power press machines. Actually, we produce most of the parts in our own factory for better cost and quality control. Shanghai Yingxin World is the exporting center of all World brand machines.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q6. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Yes, please visit our Facebook to get more videos.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
