Home > Products > Construction Machinery > new construciton machinery 5ton 3m3 bucket china wheel loader price vs 950h

new construciton machinery 5ton 3m3 bucket china wheel loader price vs 950h

FOB Price

USD $40,000 - $50,000 / Piece

1 Piece(Min.Order)

Supply Ability 5000 Piece / Pieces per Month
Port SHANGHAI
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	World
Model Number	W156

Product Description

chinese construciton machinery 5ton 3m3 bucket wheel loader price 950h

wheel loader prices

Main Features:

-Cummins/Shangchai C6121 engine

-Bucket 3m3

-Rated load 5000kg

-Mechanical transmission 2forward and 2reverse

-A/C,Airseat,Joystick

-Operating weight 16200kgs

Specifications of 5Ton payloader wheel loader with Joystick control

Items	Model: W156
Bucket Capacity (m³)	3.0 or 3.6 or 4.0
Rated Load (kg)	5000
Max. Breakout Force (kN)	150
Max. Traction (kN)	165
Forward Speed 1^st (km/h)	0-11.5
Forward Speed 2^nd (km/h)	0-37.5
Reverse Speed (km/h)	0-17
Max. Dumping Height (mm)	2970
Max. Dumping Reach (mm)	1200
Min. Turning Radius (mm)	6700
Min. Clearance Over Ground (mm)	380
Wheel Base (mm)	3427
Tread Width (mm)	2300
Total Hydraulic Cycle Time (s)	11.1
Full Bucket Lifting Time (s)	5.7
Overall Dimensions (mm)	L:8075xW:2960xH:3500
Operating Weight (kg)	16200
Diesel Engine
Brand	Weichai Steyr or Cat6121 or Cummins
Type	Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
Rated Output (kw)	162/162/160
Rated Speed (rpm)	2200
Max. Torque (N.m)	855/860/908
Transmission
Type	Planet type
Rated Input Speed (rpm)	2200
Transaxle & Tire
Rear Axle Oscillation	Center oscillation
Oscillating Angle Of Rear Axle (°)	13
Pressure Of Tire (MPa)	0.28-0.32
Working Hydraulic System
Working Pump Type	Gear pump
Working Pressure (MPa)	17
Lifting Cylinder Bore x Stroke (mm)	165x757
Tilting Cylinder Bore x Stroke (mm)	200x540
Steering System
Steering Pump Type	CBGJ2080
Working Pressure (MPa)	12
Steering Cylinder Bore x Stroke (mm)	100x342
Max. Steering Angle (°)	35

of W156 3m3 bucket chinese road construction mini wheel loader for sale

	Engine System Brand: Cummins or Weichai Deutz Power: : 160kw/2200rpm No. of cylinders: 6 Water cooling, turbocharged, 4 strokes, global warranty.
	Articulated frames The front frame is connected with the rear frame by pins and bearings. The space is big which is easy for maintenance. The high precision of hole boring makes it easy to connect the articulations. High quality temperature treatment ensures the hardness of the pins. In this way, the loader can be operated smoothly with lower fuel cost.
	Cabin and operation The standard spacious cabin is equipped with shock absorbing seat, radio and air conditioner. The optimized Seating System is 6-way adjustable to accommodate operators of all sizes. The seat has a one piece high back that supports the lumbar area of the back up through the shoulders. The steering column can be adjusted too. And the cabin is mounted to the frame with hydraulic damper which decrease the noise and vibration.
	Transmission System Gearbox: ZL30 planet type Axle: dry type axle, main reducer and hub reducer Drive shaft: front, middle and rear shaft Powerful gearbox with hydraulic converter, 2F/1R speeds, easy operation and maintenance. Brake shoe with disc, dry type brake system, 4 wheel brake.

chinese construciton machinery 5ton 3m3 bucket wheel loader price 950h

Company Information

World machinery develop and manufacture construction machines for more than decades: wheel loaders,excavators,road rollers,skid steer loaders,backhoe loaders, bulldozers,We have clients in

South America:Peru,Brazil, Argentina,Chile

Middle East:Iran, Saudi, Qatar,Doha,Iraq, Sultan, UAE, Mauritania, Algeria, Libya,

Central Asia:Kyrghyzstan,Kazakhstan

Southeast Asia:Thailand,Indonesia, the Philippines,

Africa:South Africa, Zambia

US/Canda

Europe:Russia,Romanina, Austria, Australia

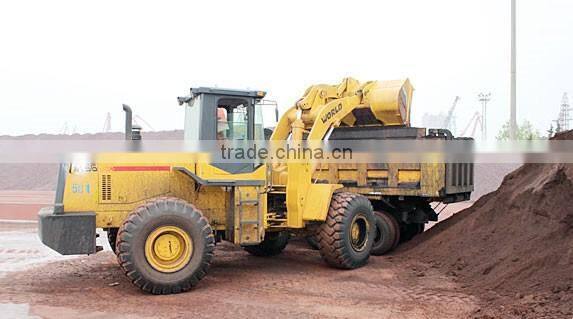

Project case

Packaging & Shipping

W156 3m3 bucket chinese road construction mini wheel loader for salefront end loader/pay loader/shovel loader/

-one unit per 40HQ container

-disassemble the bucket, axle, tyres and cabin

-easy to assemble at buyer's side as all are bolted on

clients visit

W156 3m3 buc

ket

Certificate

FAQ

Q1. Are you manufacturer or trader?

A: World is a group company and World is TOP500 Private Company in China. We are manufacturer of construction machines, agriculture machines and power press machines. Actually, we produce most of the parts in our own factory for better cost and quality control. Shanghai Yingxin World is the exporting center of all World brand machines.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.

Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.

Q6. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our Facebook to get more videos.

/worldloader

Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
