Home > Products > Construction Machinery > 5 Ton Front End Heavy Duty Wheel Loader ZL50

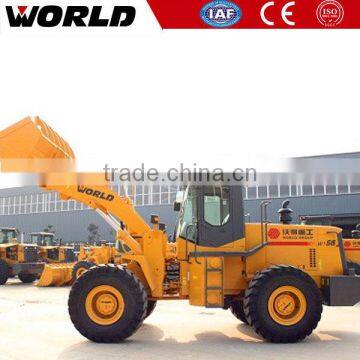

5 Ton Front End Heavy Duty Wheel Loader ZL50
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
3.5m3 Bucket Mining W160 6ton Large CE Approved China Wheel Loader for Sale
-
3ton Heavy Construction Machinery Mini China Wheel Loader Zl30 Price
-
Hydraulic Loader 1.8m3 Shovel 3ton China Wheel Loader ZL30 for Sale
-
Price of 3m3 Bucket Chinese Road Construction Wheel Loader ZL30
-
New Construciton Machinery 5ton 3m3 Bucket China Wheel Loader Price vs 950h
-
5ton Chinese Earth Moving Machine China Wheel Loader Price ZL50
Product Details
| Place of Origin | Jiangsu, China | Brand Name | World | |
| Model Number | W156 |
Product Description
chinese construciton machinery 5ton 3m3 bucket wheel loader price 950h
wheel loader prices
Main Features:
-Cummins/Shangchai C6121 engine
-Bucket 3m3
-Rated load 5000kg
-Mechanical transmission 2forward and 2reverse
-A/C,Airseat,Joystick
-Operating weight 16200kgs
Specifications of 5Ton payloader wheel loader with Joystick control
Items | Model: W156 |
Bucket Capacity (m3) | 3.0 or 3.6 or 4.0 |
Rated Load (kg) | 5000 |
Max. Breakout Force (kN) | 150 |
Max. Traction (kN) | 165 |
Forward Speed 1st (km/h) | 0-11.5 |
Forward Speed 2nd (km/h) | 0-37.5 |
Reverse Speed (km/h) | 0-17 |
Max. Dumping Height (mm) | 2970 |
Max. Dumping Reach (mm) | 1200 |
Min. Turning Radius (mm) | 6700 |
Min. Clearance Over Ground (mm) | 380 |
Wheel Base (mm) | 3427 |
Tread Width (mm) | 2300 |
Total Hydraulic Cycle Time (s) | 11.1 |
Full Bucket Lifting Time (s) | 5.7 |
Overall Dimensions (mm) | L:8075xW:2960xH:3500 |
Operating Weight (kg) | 16200 |
Diesel Engine | |
Brand | Weichai Steyr or Cat6121 or Cummins |
Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders |
Rated Output (kw) | 162/162/160 |
Rated Speed (rpm) | 2200 |
Max. Torque (N.m) | 855/860/908 |
Transmission | |
Type | Planet type |
Rated Input Speed (rpm) | 2200 |
Transaxle & Tire | |
Rear Axle Oscillation | Center oscillation |
Oscillating Angle Of Rear Axle (°) | 13 |
Pressure Of Tire (MPa) | 0.28-0.32 |
Working Hydraulic System | |
Working Pump Type | Gear pump |
Working Pressure (MPa) | 17 |
Lifting Cylinder Bore x Stroke (mm) | 165x757 |
Tilting Cylinder Bore x Stroke (mm) | 200x540 |
Steering System | |
Steering Pump Type | CBGJ2080 |
Working Pressure (MPa) | 12 |
Steering Cylinder Bore x Stroke (mm) | 100x342 |
Max. Steering Angle (°) | 35 |
of W156 3m3 bucket chinese road construction mini wheel loader for sale
|
Engine SystemBrand: Cummins or Weichai Deutz Power: : 160kw/2200rpm No. of cylinders: 6 Water cooling, turbocharged, 4 strokes, global warranty. |
| Articulated framesThe front frame is connected with the rear frame by pins and bearings. The space is big which is easy for maintenance. The high precision of hole boring makes it easy to connect the articulations. High quality temperature treatment ensures the hardness of the pins. In this way, the loader can be operated smoothly with lower fuel cost. |
| Cabin and operationThe standard spacious cabin is equipped with shock absorbing seat, radio and air conditioner. The optimized Seating System is 6-way adjustable to accommodate operators of all sizes. The seat has a one piece high back that supports the lumbar area of the back up through the shoulders. The steering column can be adjusted too. And the cabin is mounted to the frame with hydraulic damper which decrease the noise and vibration. |
| Transmission SystemGearbox: ZL30 planet type |
chinese construciton machinery 5ton 3m3 bucket wheel loader price 950h
World machinery develop and manufacture construction machines for more than decades: wheel loaders,excavators,road rollers,skid steer loaders,backhoe loaders, bulldozers,We have clients in
South America:Peru,Brazil, Argentina,Chile
Middle East:Iran, Saudi, Qatar,Doha,Iraq, Sultan, UAE, Mauritania, Algeria, Libya,
Central Asia:Kyrghyzstan,Kazakhstan
Southeast Asia:Thailand,Indonesia, the Philippines,
Africa:South Africa, Zambia
US/Canda
Europe:Russia,Romanina, Austria, Australia
-one unit per 40HQ container
-disassemble the bucket, axle, tyres and cabin
-easy to assemble at buyer's side as all are bolted on
ket
Q1. Are you manufacturer or trader?
A: World is a group company and World is TOP500 Private Company in China. We are manufacturer of construction machines, agriculture machines and power press machines. Actually, we produce most of the parts in our own factory for better cost and quality control. Shanghai Yingxin World is the exporting center of all World brand machines.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q6. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
A: Yes, please visit our Facebook to get more videos.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
