ZL30 3Ton China Made Mini Front End Loader Price

construction wheel loader

china made 3ton zl30 construction machines mini wheel loader price for sale

Road construction equipment china 3Ton wheel loader ZL30 for sale

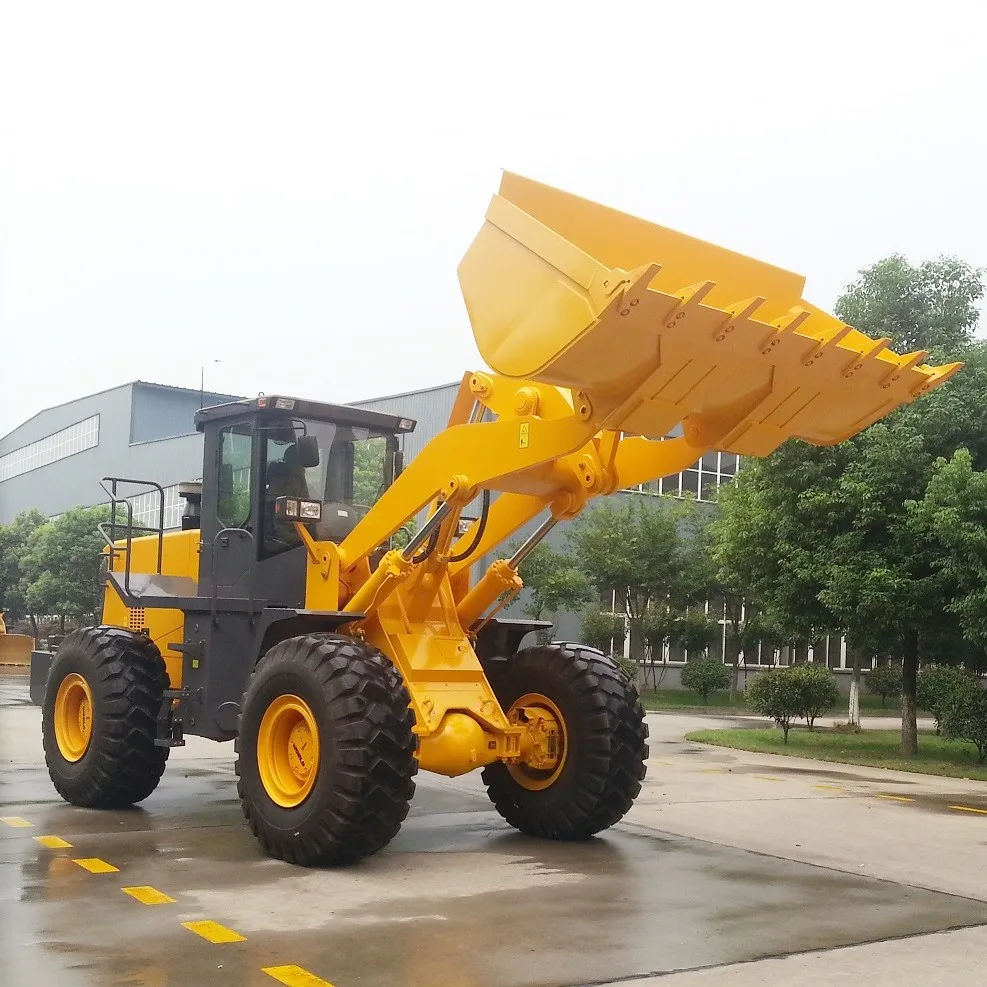

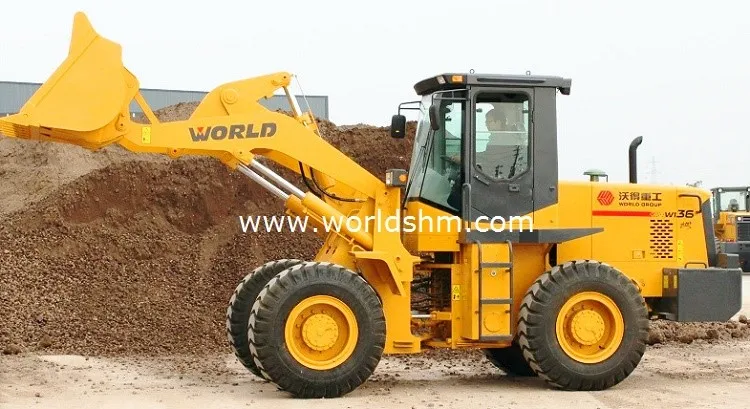

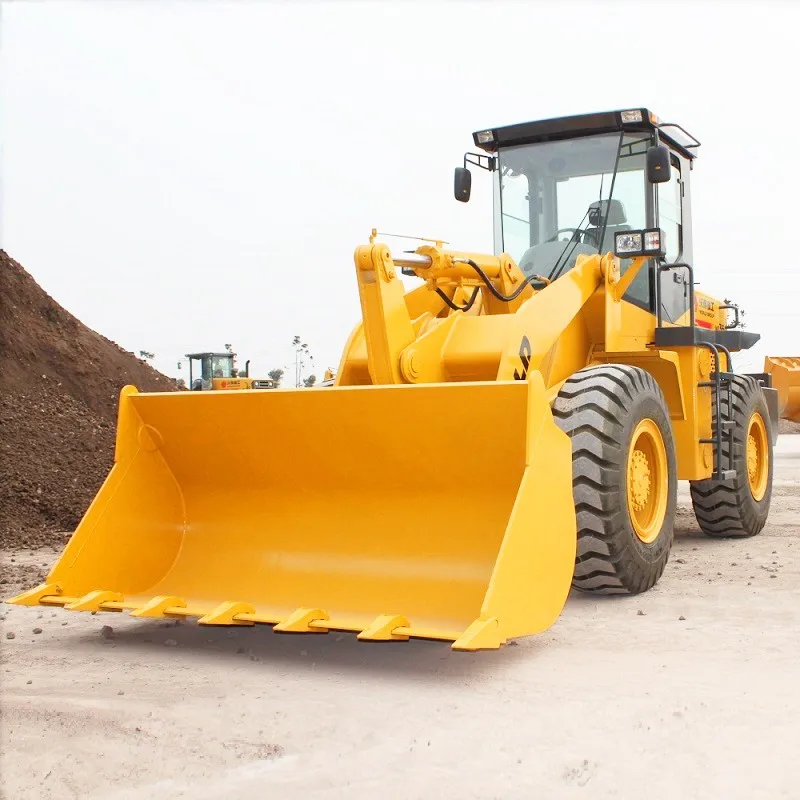

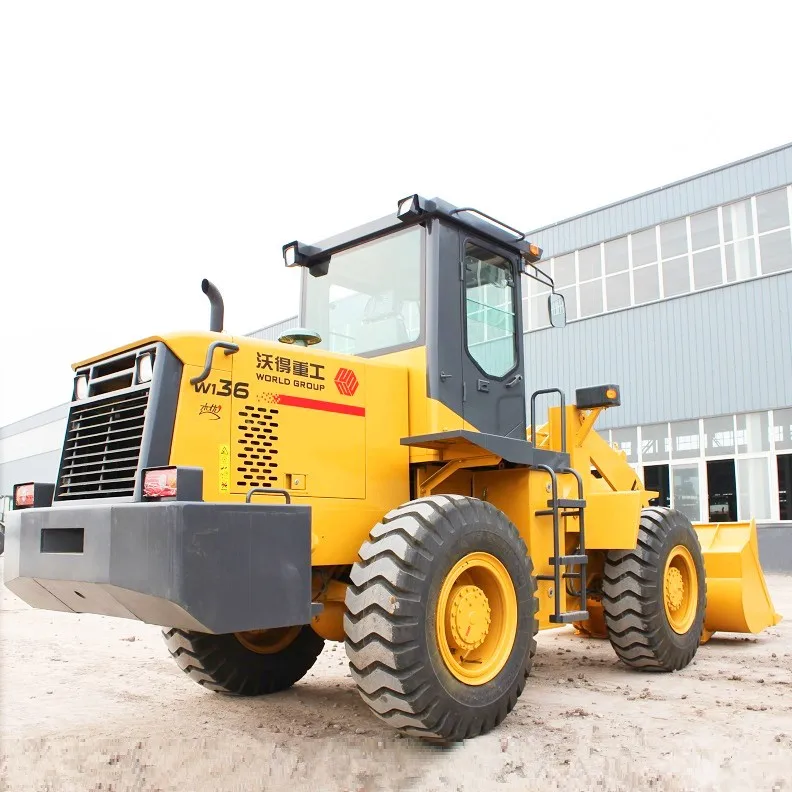

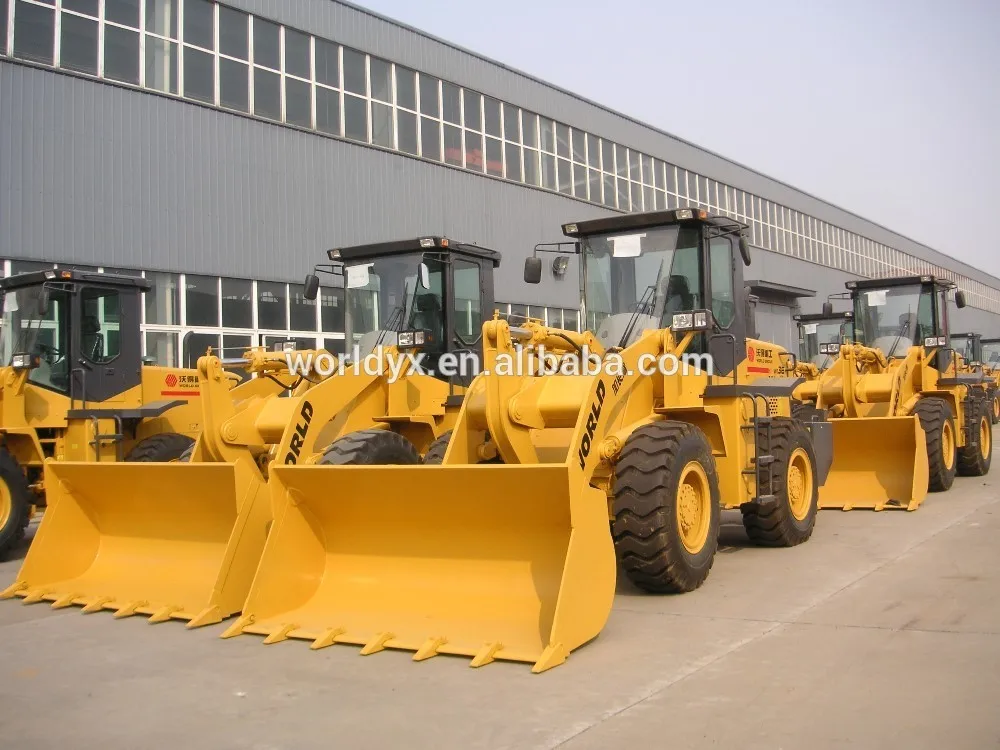

W136 wheel loader is a 3ton rated load loader with the bucket capacity from 1.8cbm to 2.2cbm. The extended distance between frames articulation offers good structure rigidity and larger maintenance space. Self designed and produced structure fames and working equipment all use best steel material with good strength and tensile property. Computer finite element analysis ensures the design is reasonable. High quality welding and shot blasting treatment eliminate the welding stress effectively. Best hydraulic systems and transmission systems provide high efficiency and the total working cycle time is less than 10.3 second. Spacious cabin with air conditioner, shock absorbing seat with safety belt, radio and speaker provides comfort operation environment. Lower fuel consumption which is about 1.67L/hour compared to other similar machines.

china made 3ton zl30 construction machines mini wheel loader price for sale

Main Features

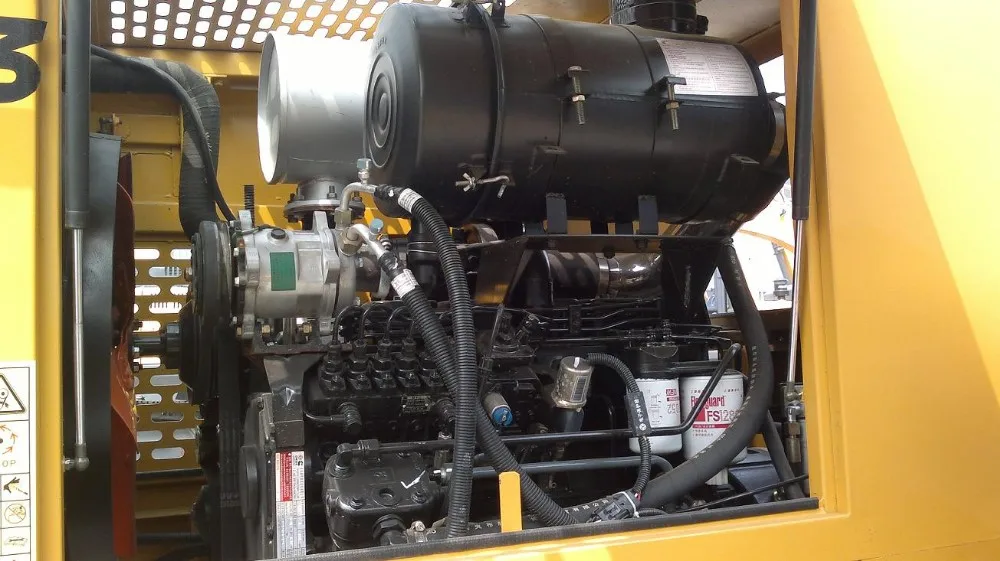

Engine System

Brand: Cummins or Weichai Deutz

Power: 92kw/2200pm

No. of cylinders: 6

Water cooling, turbocharged, 4 strokes, global warranty.

Articulated frames

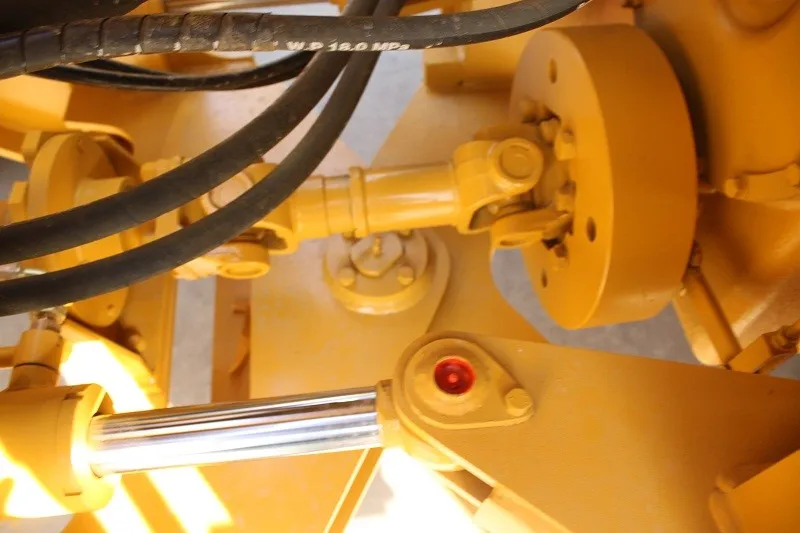

The front frame is connected with the rear frame by pins and bearings. The space is big which is easy for maintenance. The high precision of hole boring makes it easy to connect the articulations. High quality temperature treatment ensures the hardness of the pins. In this way, the loader can be operated smoothly with lower fuel cost.

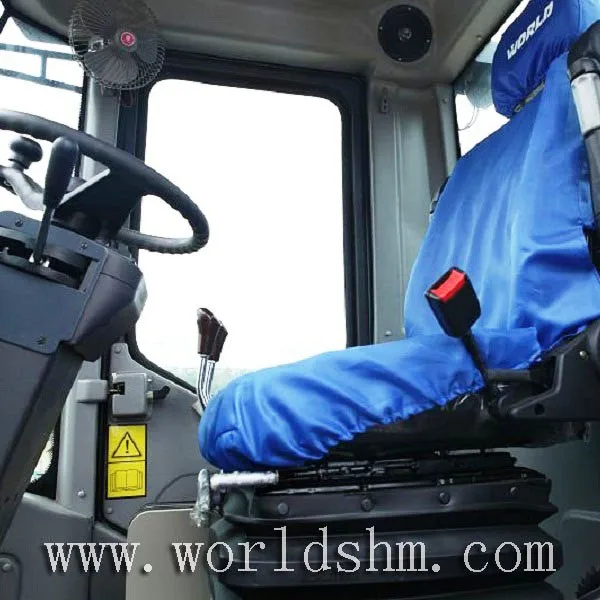

Cabin and operation

The standard spacious cabin is equipped with shock absorbing seat, radio and air conditioner. The optimized Seating System is 6-way adjustable to accommodate operators of all sizes. The seat has a one piece high back that supports the lumbar area of the back up through the shoulders. The steering column can be adjusted too. And the cabin is mounted to the frame with hydraulic damper which decrease the noise and vibration.

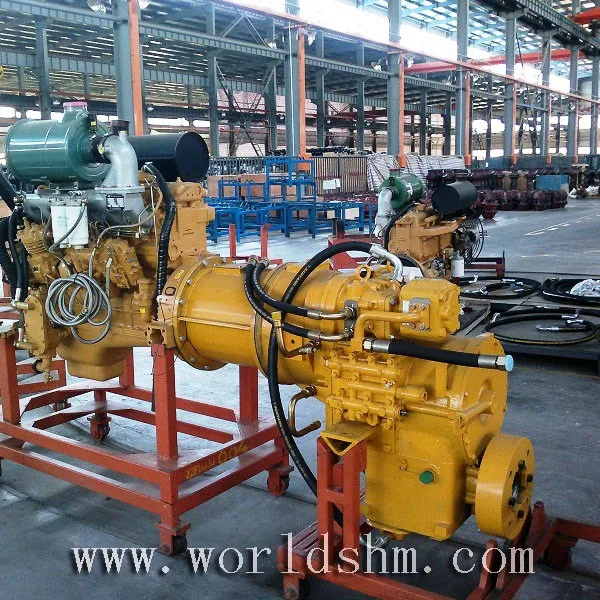

Transmission System

Gearbox: ZL30 planet type
Axle: dry type axle, main reducer and hub reducer
Drive shaft: front, middle and rear shaft
Powerful gearbox with hydraulic converter, 2F/1R speeds, easy operation and maintenance. Brake shoe with disc, dry type brake system, 4 wheel brake.
