Product Details
| Place of Origin | Jiangsu, China | Brand Name | World | |
| Model Number | W156 |
Product Description
China construction machinery articulated mini wheel loader price list
Main Features:
-Cummins/Shangchai C6121 engine
-Bucket 3m3
-Rated load 5000kg
-Mechanical transmission 2forward and 2reverse
-A/C,Airseat,Joystick
-Operating weight 16200kgs

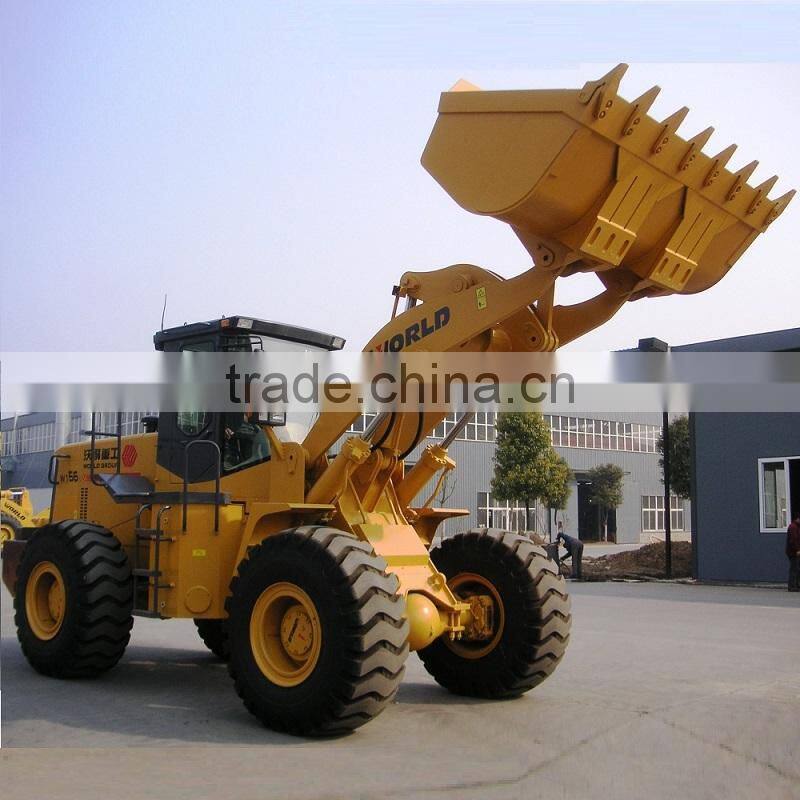

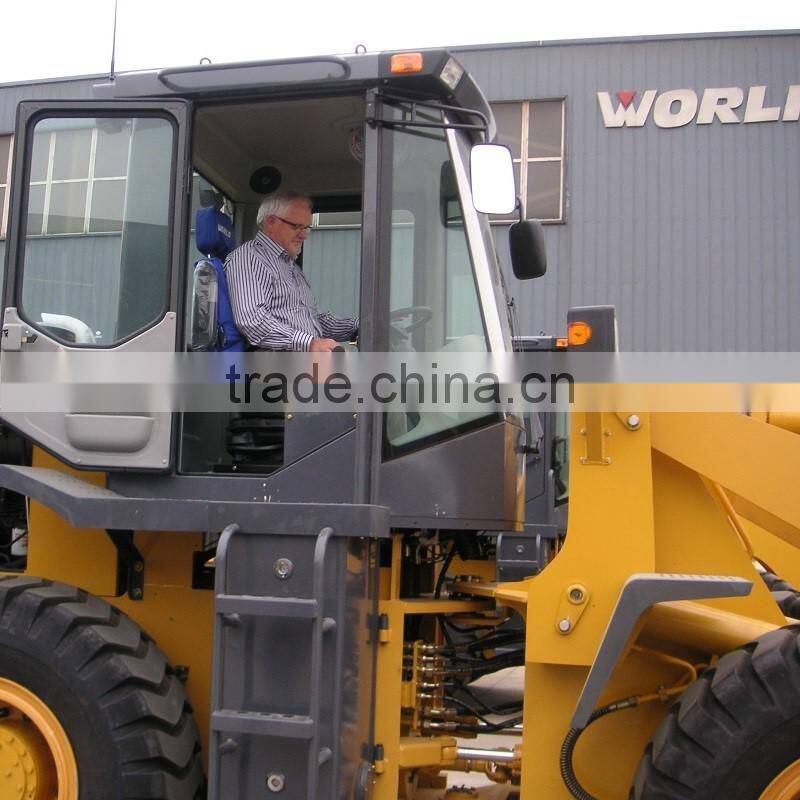

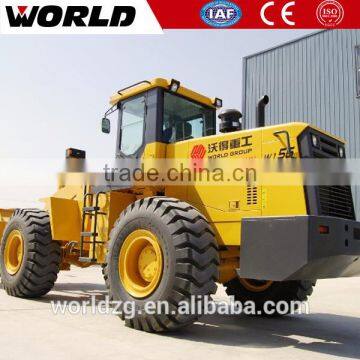

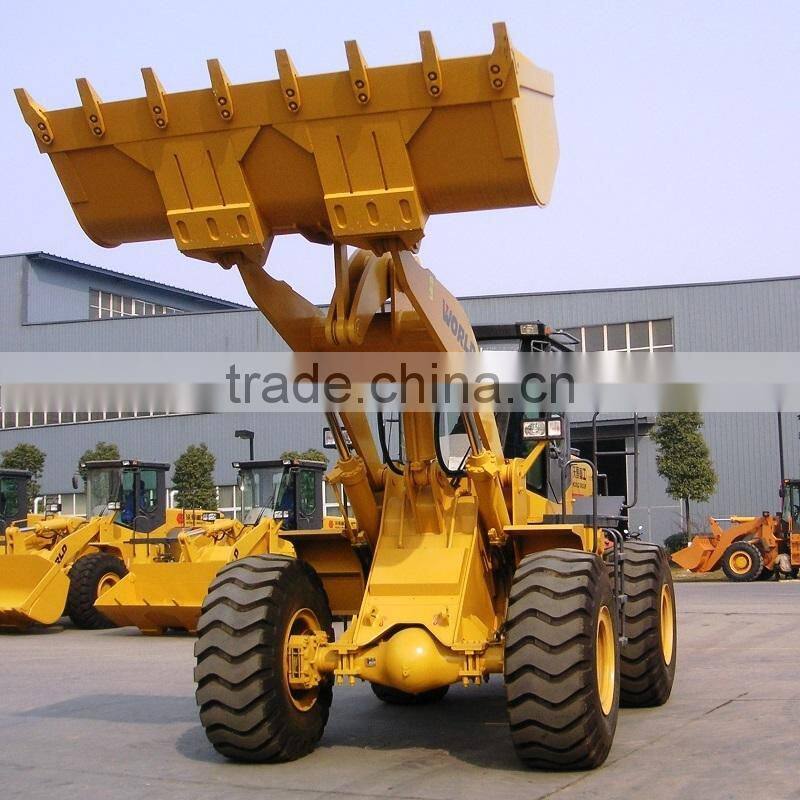

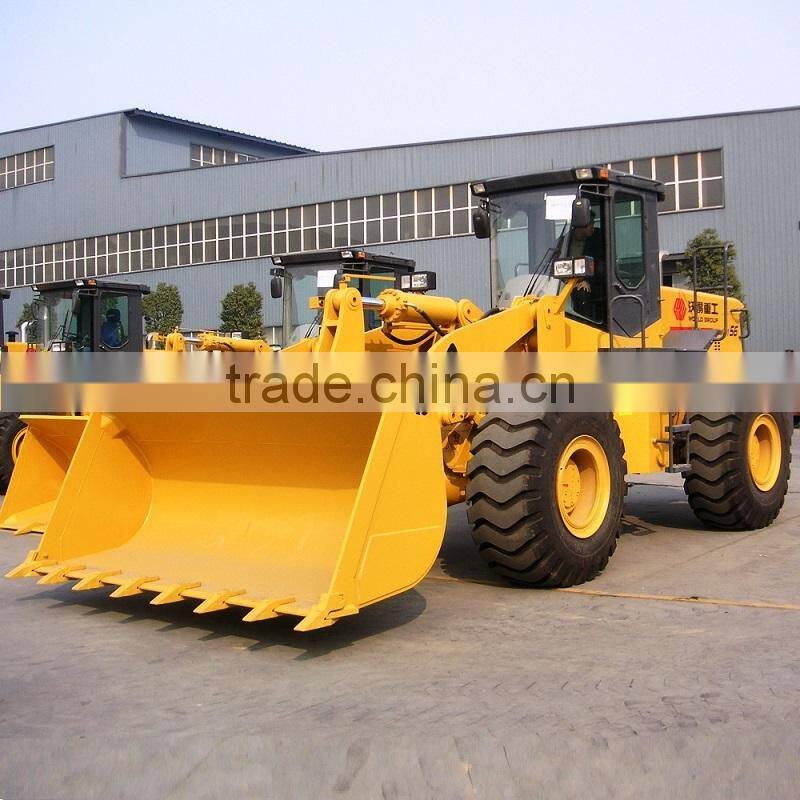

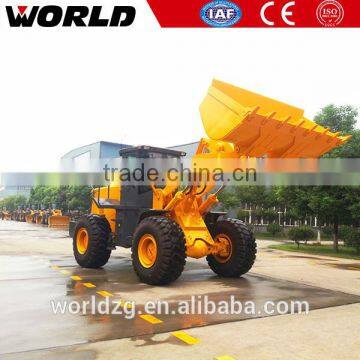

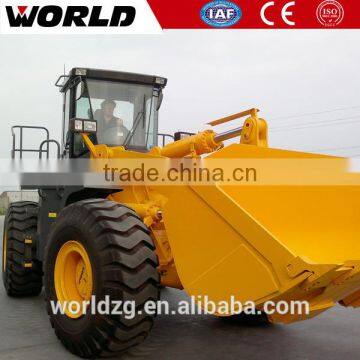

Photos of China construction machinery articulated mini wheel loader price list
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty
period is one year. During the warranty period, our company provides free maintenance and replacement parts,
if these parts or damages are out of quality problems. In the meantime, the machine should be under normal
operation by the buyers. (Except for improper operation or man-made damage by the buyers.) We can send the
parts by courier if urgently needed while the buyer should pay the freight.

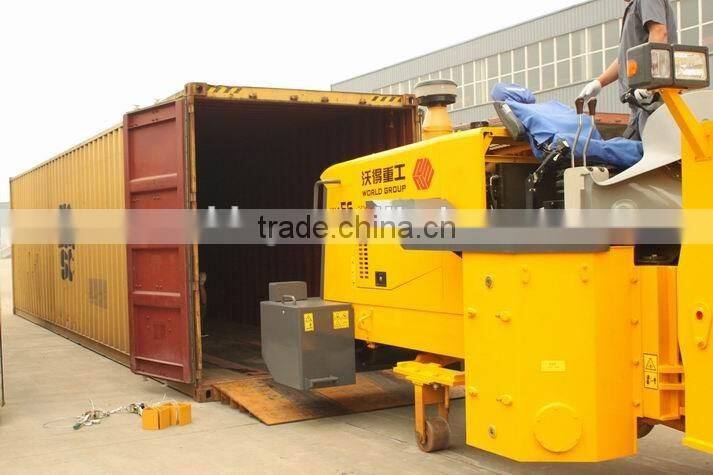

Packing and loading:
-one unit per 40HQ container
-disassemble the bucket, axle, tyres and cabin
-easy to assemble at buyer's side as all are bolted on
Specifications of 5ton front end wheel loader price
Items | Model: W156 |
Bucket Capacity (m3) | 3.0 or 3.6 or 4.0 |
Rated Load (kg) | 5000 |
Max. Breakout Force (kN) | 150 |
Max. Traction (kN) | 165 |
Forward Speed 1st (km/h) | 0-11.5 |
Forward Speed 2nd (km/h) | 0-37.5 |
Reverse Speed (km/h) | 0-17 |
Max. Dumping Height (mm) | 2970 |
Max. Dumping Reach (mm) | 1200 |
Min. Turning Radius (mm) | 6700 |
Min. Clearance Over Ground (mm) | 380 |
Wheel Base (mm) | 3427 |
Tread Width (mm) | 2300 |
Total Hydraulic Cycle Time (s) | 11.1 |
Full Bucket Lifting Time (s) | 5.7 |
Overall Dimensions (mm) | L:8075xW:2960xH:3500 |
Operating Weight (kg) | 16200 |
Diesel Engine | |
Brand | Weichai Steyr or Cat6121 or Cummins |
Type | Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders |
Rated Output (kw) | 162/162/160 |
Rated Speed (rpm) | 2200 |
Max. Torque (N.m) | 855/860/908 |
Transmission | |
Type | Planet type |
Rated Input Speed (rpm) | 2200 |
Transaxle & Tire | |
Rear Axle Oscillation | Center oscillation |
Oscillating Angle Of Rear Axle (°) | 13 |
Pressure Of Tire (MPa) | 0.28-0.32 |
Working Hydraulic System | |
Working Pump Type | Gear pump |
Working Pressure (MPa) | 17 |
Lifting Cylinder Bore x Stroke (mm) | 165x757 |
Tilting Cylinder Bore x Stroke (mm) | 200x540 |
Steering System | |
Steering Pump Type | CBGJ2080 |
Working Pressure (MPa) | 12 |
Steering Cylinder Bore x Stroke (mm) | 100x342 |
Max. Steering Angle (°) | 35 |
