YTO Rough Terrain Forklift TC4015 With Low Price

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Port Shanghai Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YTO	Model Number	TC4015
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	1.5 Ton	Max. Lifting Height	5500mm
Min. Lifting Height	2300mm	Fork Length	920mm
Fork Width	100mm	Overall Dimensions	4410* 1665* 2300mm
Certification	ISO, CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Rough Terrain Fokrlift for sale

1.5 Ton Forklift YTO 4 x4 Rough Terrain Forklift TC4015

Good Quality Chinese Rough Terrain Forklift 1.5T, 2.5T, 3T, 5T

The YTO tractor forklifts series TC4015 are designed for easy on, easy off convenience. The YTO forklifts can be used for lifting, moving and loading palletized material, bins and other bulky or heavy objects. The TC4015 has a lifting height of 3000mm, and a maximum lifting height of 5500mm with a rated capacity of 1500kg ad 500mm load center. Optional attachments including side shifter and bucket can be fixed as per your request.

Speciality parameter	Model				Unit	TC4015
	Power type					Diesel
	Rated capacity				kg	1500
	Load center			d	mm	500
	Lift height			h2	mm	3300
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Wheel-base			L4	mm	1968
	Tread(front/rear)			b4/b5	mm	1350/1330
Performance parameter	Travel brake					Mechanical-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	420/450
	Lower speed (with/without load)				mm/s	(with load)<380 ,(without load)>330
	Travel speed (with/without load)				km/h	23/25
	Max. gradeability (with load)				%	20
Power, transmission and others	Engine	Model				C490BT
		Manufacturer				Xinchang
		Rated power			kw	29.4/2400
		Max. rotation			Nm/rpm	146/1650
	Battery	Voltage			V	12
	Battery	Capacity			Ah	100
	Gearbox	Transmission type				Mechanical
	Gearbox	Gears,speed (front/rear)				8/8
	Tyre	type				Tubeless Tires
		Model	Front			12.5/80-18TL-12PR
		Model	Rear			5.70-12TL-6PR
Others	Self.weight				kg	2980
	Fork	Thickness×Width×Length		c×b×a	mm	35100920
	Overall dimensions	Overall length(without forks)		L2	mm	4410/3490
		Overall width		b1	mm	1665
			Lower height(mast)	h3	mm	2300
			Overhead guard	h7	mm	2245
	Min. turning radius			Wa	mm	4050
	Min. under ground clearance	Under mast		m1	mm	250
	Min. under ground clearance	Center of wheel-base		m2	mm	250

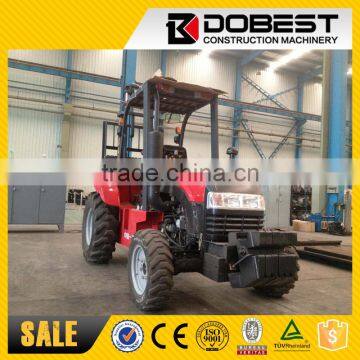

Product Pictures
