The Cheapest CPCD100

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YTO	Model Number	CPCD100
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	10 Ton	Max. Lifting Height	6000mm
Min. Lifting Height	3000mm	Fork Length	1220mm
Fork Width	175mm	Overall Dimensions	4240mm2165mm2575mm
Certification	ISO, CE	After-sales Service Provided	Engineers available to service machinery overseas

Good Price Diesel Forklift Truck Popular Selling

Capacity 1T, 2T, 2.5T, 3T, 4T, 5T, 6T, 7T, 8T, 10T.

Chinese Diesel Forklift YTO 10 Ton Diesel Forklift CPCD100

Speciality parameter	Model					CPCD100
	Model					CPCD100
	Power type					Diesel
	Rated capacity				kg	10000
	Load center			d	mm	600
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Front overhang			L3	mm	710
	Wheel-base			L4	mm	2800
	Tread(front/rear)			b4/b5	mm	1600/1720
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	310/340
	Lower speed (with/without load)				mm/s	with load300
	Travel speed (with/without load)				km/h	23/26
	Max. gradeability (with load)				%	20
	Max. Towing (with/without load)				kN	50/40
	Weight Distribution with load(pront/rear)					20470/2030
	Weight Distribution without load(pront/rear)					6000/6500
Power, transmission and others	Engine	Model				LR6B5-22
		Manufacturer				YTO
		Rated power			kw	88.2/2200
		Max.roration				440/1600
		Dispilacement				7.42
	Battery	Voltage			V	24
	Battery	Capacity			Ah	2×100
	Gearbox	Transmission type				Hydraulic
	Gearbox	Gears,speed (front/rear)				Ⅱ/Ⅱ
	Tire	type				Pneumatic tyre
		Model	Pront			9.00-20-14PR
		Model	Rear			9.00-20-14PR
Other	Self.weight				kg	12500
	Free lift height			h4	mm	165
	Fork	Thickness×Width×Length		c×b×a	mm	80×175×1220
	Overall dimensions	Overall length(without forks)		L2	mm	4240
		Overall width		b1	mm	2165
		Overall height	Extended height(mast)	h1	mm	4330
			Lower height(mast)	h3	mm	2850
			Overhead guard	h7	mm	2575
	Min. turning radius			Wa	mm	3950
	Min. under ground clearance	Under mast		m1	mm	245
	Min. under ground clearance	Center of wheel-base		m2	mm	255

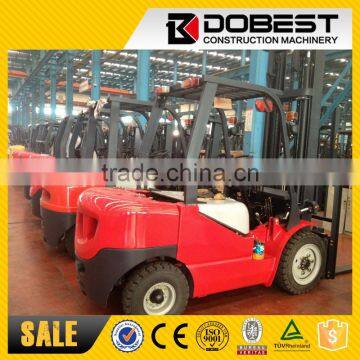

Product Pictures
