Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YTO | Model Number | TC4015 | |
| Type | Powered Pallet Truck | Power Souce | Diesel Engine | |
| Rated Loading Capacity | 1.5 Ton | Max. Lifting Height | 5500mm | |
| Min. Lifting Height | 2300mm | Fork Length | 920mm | |
| Fork Width | 100mm | Overall Dimensions | 4410* 1665* 2300mm | |
| Certification | ISO, CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Rough Terrain Fokrlift for sale

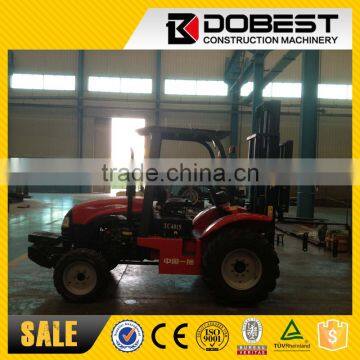

1.5 Ton Forklift YTO 4 x4 Rough Terrain Forklift TC4015
Good Quality Chinese Rough Terrain Forklift 1.5T, 2.5T, 3T, 5T
The YTO tractor forklifts series TC4015 are designed for easy on, easy off convenience. The YTO forklifts can be used for lifting, moving and loading palletized material, bins and other bulky or heavy objects. The TC4015 has a lifting height of 3000mm, and a maximum lifting height of 5500mm with a rated capacity of 1500kg ad 500mm load center. Optional attachments including side shifter and bucket can be fixed as per your request.
Speciality parameter | Model | Unit | TC4015 | |||
Power type | Diesel | |||||
Rated capacity | kg | 1500 | ||||
Load center | d | mm | 500 | |||
Lift height | h2 | mm | 3300 | |||
Mast tilt angle (forward/backward) | α/β | Deg | 6/12 | |||
Wheel-base | L4 | mm | 1968 | |||
Tread(front/rear) | b4/b5 | mm | 1350/1330 | |||
Performance parameter | Travel brake | Mechanical-Foot pedal | ||||
Parking brake | Mechanical-Hand level | |||||
Lift speed(with/without load) | mm/s | 420/450 | ||||
Lower speed (with/without load) | mm/s | (with load)<380 ,(without load)>330 | ||||
Travel speed (with/without load) | km/h | 23/25 | ||||
Max. gradeability (with load) | % | 20 | ||||
| Engine | Model | C490BT | |||
Manufacturer | Xinchang | |||||
Rated power | kw | 29.4/2400 | ||||
Max. rotation | Nm/rpm | 146/1650 | ||||
Battery | Voltage | V | 12 | |||
Capacity | Ah | 100 | ||||
Gearbox | Transmission type | Mechanical | ||||
Gears,speed (front/rear) | 8/8 | |||||
Tyre | type | Tubeless Tires | ||||
Model | Front | 12.5/80-18TL-12PR | ||||
Rear | 5.70-12TL-6PR | |||||
Others | Self.weight | kg | 2980 | |||
Fork | Thickness×Width×Length | c×b×a | mm | 35*100*920 | ||
| Overall length(without forks) | L2 | mm | 4410/3490 | ||
Overall width | b1 | mm | 1665 | |||
Lower height(mast) | h3 | mm | 2300 | |||
Overhead guard | h7 | mm | 2245 | |||
Min. turning radius | Wa | mm | 4050 | |||
| Under mast | m1 | mm | 250 | ||
Center of wheel-base | m2 | mm | 250 | |||
