Cpcd30 Forklift Price

FOB Price

US$ 9,000 - 9,000 / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	YTO	Model Number	CPCD30A
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	3 Ton	Max. Lifting Height	5000mm
Min. Lifting Height	3000mm	Fork Length	1070mm
Fork Width	125mm	Overall Dimensions	2770mm1225mm2160mm
Certification	ISO, CE	After-sales Service Provided	Engineers available to service machinery overseas

Good Price Diesel Forklift Truck Popular Selling

Forklift Truck Lifting Capacity 1T, 2T, 2.5T, 3T, 4T, 5T, 6T, 7T, 8T, 10T.

Japanese Engine New Automatic 3ton Diesel Forklift CPCD30 forklift

Chinese Diesel Forklift YTO 3 Ton Diesel Forklift CPCD30A

cpcd30 forklift price

Speciality parameter	Model					CPCD30A
	Model					CPCD30A
	Power type					Diesel
	Rated capacity				kg	3000
	Load center			d	mm	500
	Lift height			h2	mm	3000
	Mast tilt angle (forward/backward)			α/β	Deg	6/12
	Front overhang			L3	mm	485
	Wheel-base			L4	mm	1700
	Tread(front/rear)			b4/b5	mm	1000/980
Performance parameter	Travel brake					Hydraulic-Foot pedal
	Parking brake					Mechanical-Hand level
	Lift speed(with/without load)				mm/s	400/440
	Lower speed (with/without load)				mm/s	with load<600 without load>300
	Travel speed (with/without load)				km/h	18/19
	Max. gradeability (with load)				%	20
	Max. Towing (with/without load)				kN	15/13
	Weight Distribution with load(pront/rear)					6130/1170
	Weight Distribution without load(pront/rear)					1720/2580
Power, transmission and others	Engine	Model				C490BPG
		Manufacturer				Xinchang
		Rated power			kw	40/2650
		Max.roration				162/1800
		Dispilacement				2.54
	Battery	Voltage			V	12
	Battery	Capacity			Ah	100
	Gearbox	Transmission type				Hydraulic
	Gearbox	Gears,speed (front/rear)				Ⅰ/Ⅰ
	Tire	type				Pneumatic tyre
		Model	Pront			28×9-15-14PR
		Model	Rear			6.5-10-10PR
Other	Self.weight				kg	4280
	Free lift height			h4	mm	165
	Fork	Thickness×Width×Length		c×b×a	mm	45×125×1070
	Overall dimensions	Overall length(without forks)		L2	mm	2770
		Overall width		b1	mm	1225
		Overall height	Extended height(mast)	h1	mm	4225
			Lower height(mast)	h3	mm	2070
			Overhead guard	h7	mm	2160
	Min. turning radius			Wa	mm	2410
	Min. under ground clearance	Under mast		m1	mm	120
	Min. under ground clearance	Center of wheel-base		m2	mm	160

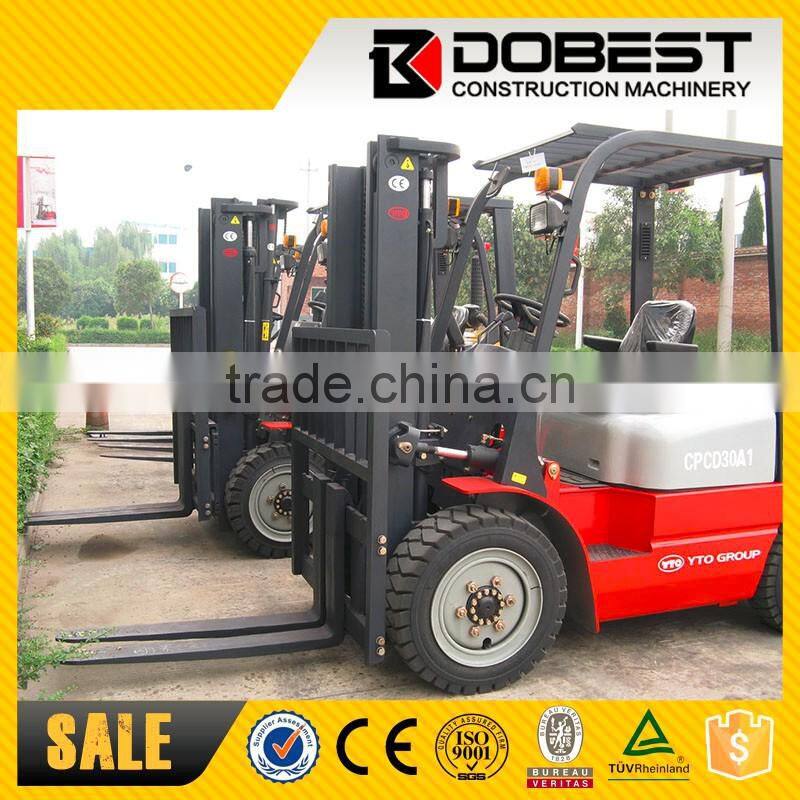

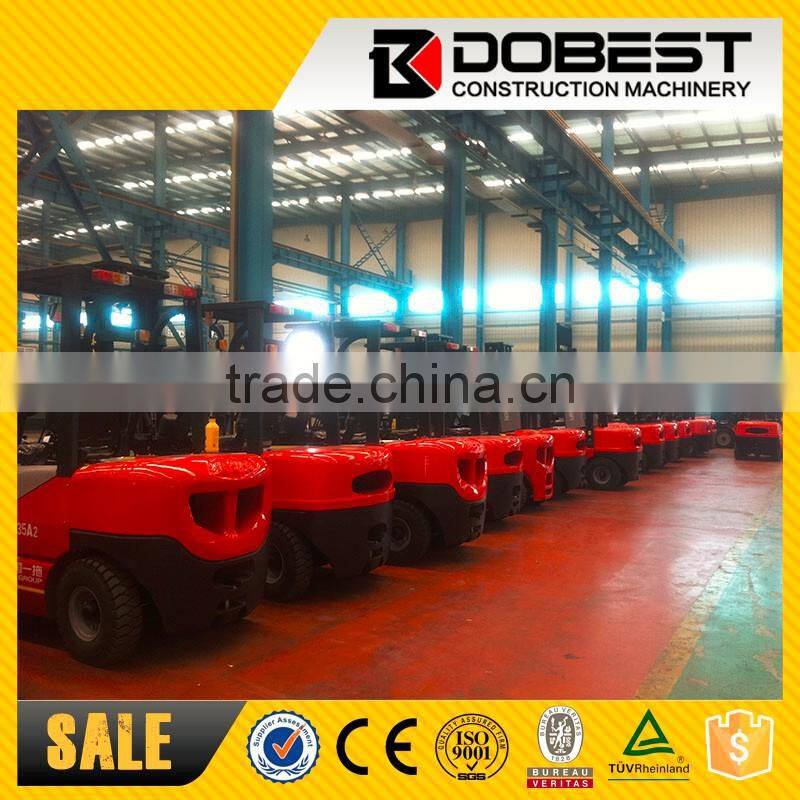

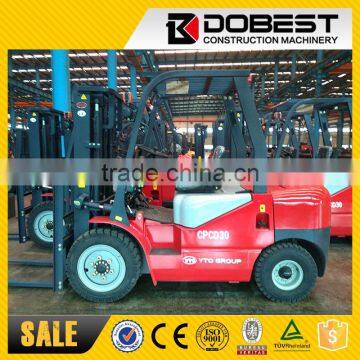

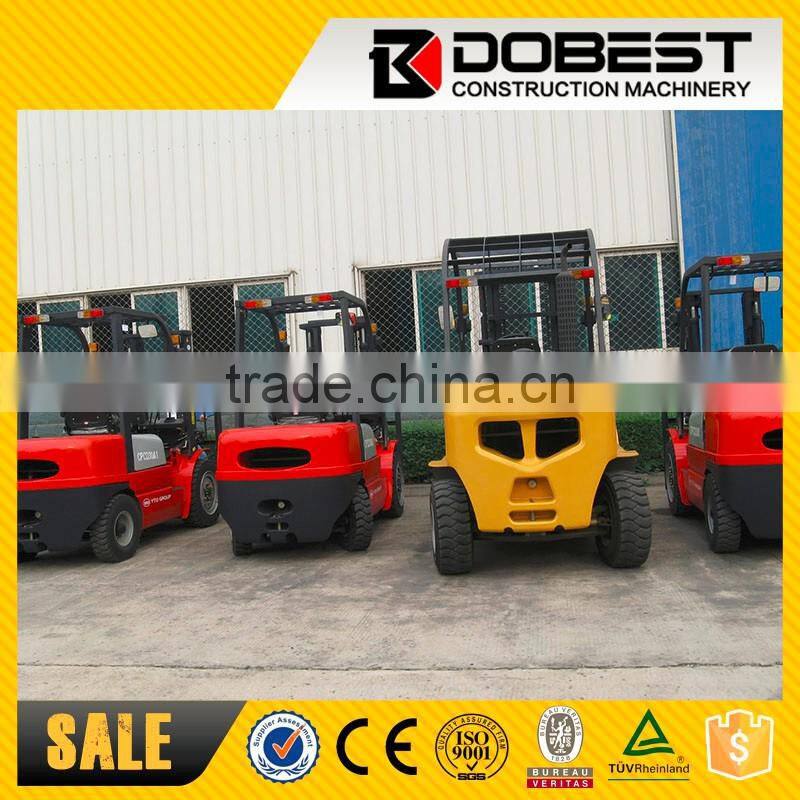

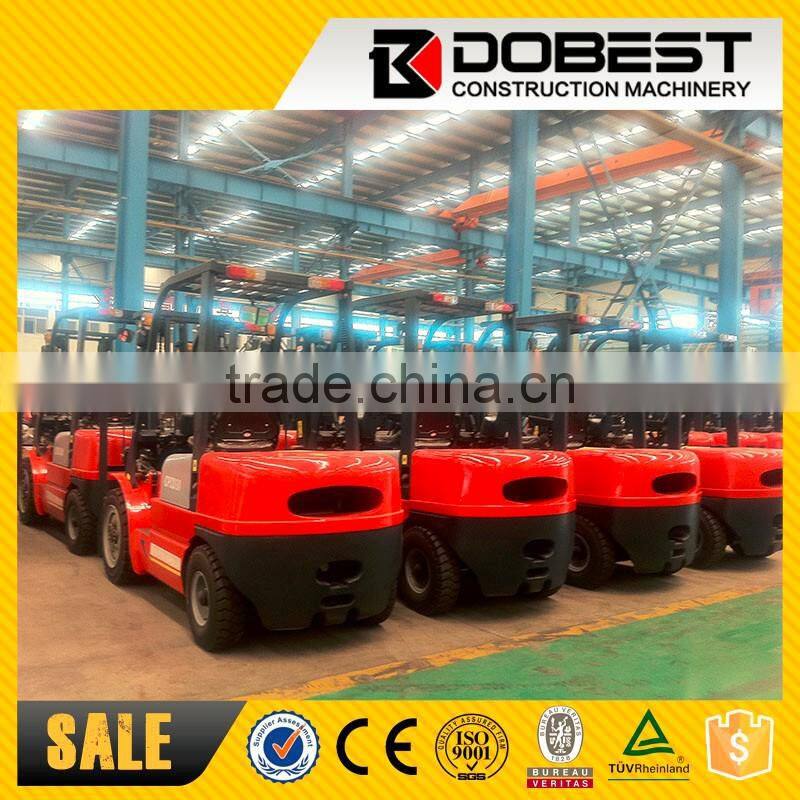

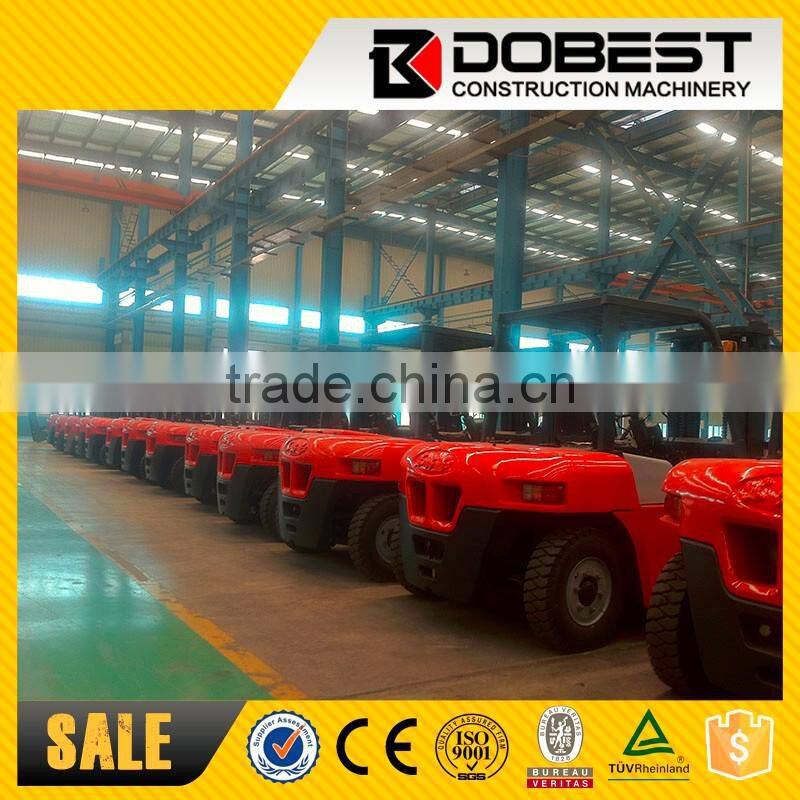

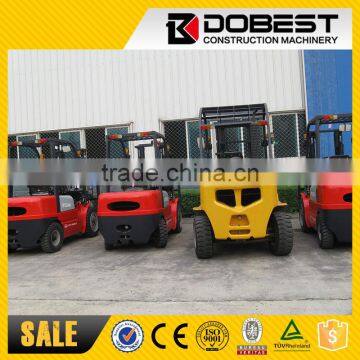

Product Pictures
