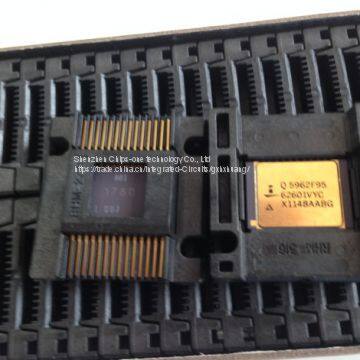

AD 5962-9961003HXA  Dual Channel, 12-Bit, 105 MSPS IF Sampling A/D Converter With Analog Input Signal Conditioning  Analog to Digital Converters   AD TI XILINX ALTERA CREE TRIQUINT

Features and Benefits

Dual, 105 MSPS minimum sample rate

Channel-channel isolation, >80 dB

AC-coupled signal conditioning included

Gain flatness up to Nyquist: <0.2 dB

Input VSWR 1.1:1 to Nyquist

80 dB spurious-free dynamic range

Two’s complement output format

3.3 V or 5 V CMOS-compatible output levels

0.850 W per channel

Industrial and military grade

Product Details

The AD10200 is a full channel ADC solution with on-module signal conditioning for improved dynamic performance and fully matched channel-to-channel performance. The module includes two wide-dynamic range ADCs. Each ADC has a transformer coupled front-end optimized for Direct-IF sampling. The AD10200 has on-chip track-and-hold circuitry, and utilizes an innovative architecture to achieve 12-bit, 105 MSPS performance. The AD10200 uses innovative high-density circuit design to achieve exceptional matching and performance while still maintaining excellent isolation, and providing for significant board area savings.

The AD10200 operates with 5.0 V supply for the analog-todigital conversion. Each channel is completely independent allowing operation with independent encode and analog inputs. The AD10200 is packaged in a 68-lead ceramic chip carrier package. Manufacturing is done on Analog Devices, Inc. MIL-38534 Qualified Manufacturers Line (QML) and components are available up to Class-H (–50°C to +125°C).

Product Highlights

Guaranteed sample rate of 105 MSPS.

Input signal conditioning with full power bandwidth to 250 MHz.

Fully tested/characterized performance at 121 MHz AIN.

Optimized for IF sampling.

Applications

Radar IF receivers

Phased array receivers

Communications receivers

Secure communications

GPS antijamming receivers

Multichannel, multimode receivers
