GFR30F2F7 One-way Clutch From China Honest Dealer
- Shanghai ; Ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
MG300 Freewheel Cam Clutch From China Supplier
-
GFRN15F5F6 Roller Type Freewheel One Way Clutch With Competitive Advantage
-
MZEU55 One Way Clutch With Good Quality for Seed Spreader
-
Backstop Clutch One Way Bearing CSK30
-
China Bearing Factory Sprag Clutch DC One Way Bearing
-
GFRN80 One Way Roller Freewheel Bearing With Lip Seals for Overrunning Clutch
Product Details
| Brand Name | SUMA | Bore Size | 30, | |
| Outside Diameter | 100, | Model Number | GFR30F2F7 | |
| Precision Rating | P6 | Seals Type | sealed | |
| Number of Row | Double Row | Place of Origin | Jiangsu, China |
Product Description
MODEL : GFR30F2F67 One-way Clutch
| Item | GFR30F2F7 |
| Precision | P6 |
| Type | Roller |
| Type of Support | Bearing Support |
| Bore size (mm) | 30 |
| Outer race (mm) | 100 |
| Torque (KN) | 500 |
| Inner race overruns speed (min-1) | 1300 |
| Outer race overruns speed (min-1) | 2800 |
| Weight (kg) | 3.9 |
| Application | Elevator , industrial machine and so on |
INTRODUCTION

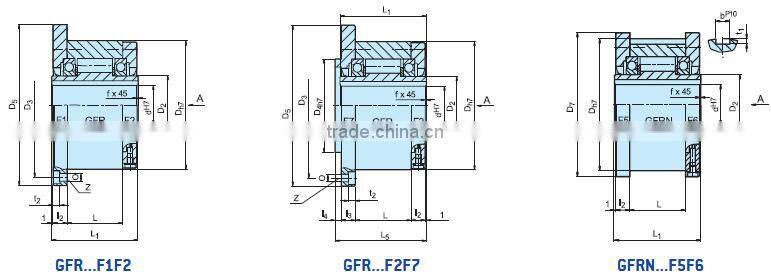

Types GFR...F1F2/F2F7 and GFRN...F5F6 are roller type freewheels, self-contained, sealed and bearing supported, using two 160...Series bearings.
Units must be oil lubricated before use if they are delivered disassembled. Primarily used as overrunning or indexing clutches. The cover combination is chosen according to the type of drive, as shown overleaf.
F2 and F6 covers are used to close the unit. They are equipped with 3 screws for oil filling, drain and level.
The shaft seal is a standard lip seal. Covers may be easily assembled by a qualified user, allowing direction of rotation to be selected on site. Alternatively, units can be delivered assembled and lubricated (except GFRN...F5F6).

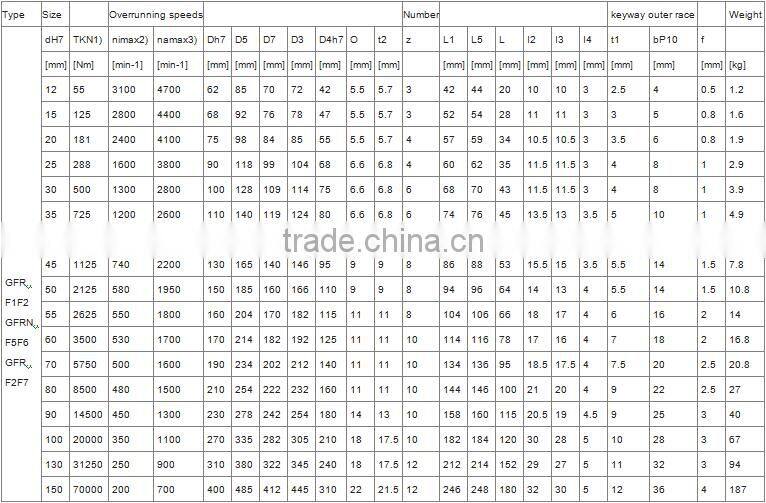

PARAMETERS LIST
NOTES
1) T max = 2 × T KN
2) Inner race overruns. Values without radial lip seals
3) Outer race overruns. Values without radial lip seals
Keyway to DIN 6885.1
*) GFR12 has through holes in outer race
MOUNTING EXAMPLE
