CSK Series One Way Clutch Bearing
US$ 3.5 - 5
/ Piece
1 Piece(Min. Order)
- Shanghai ; Ningbo
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
-
One Way Clutch Indexing Clutch Bearing ASK One Way Bearing
-
TFS25 One-way Clutch for Printing Machine
-
FSO300-700 China Bearing Factory One Way Bearing Indexing Clutch
-
KI Series One Way Clutch Indexing Clutch Bearing
-
FE Series One Way Freewheel Cage Bearing One Way
-
GF80 One-way Clutch Bearing Made of Ball Bearing Steels GCr15
Product Details
| Brand Name | SUMA or OEM | Bore Size | 8, 40 | |
| Outside Diameter | 22, 80 | Model Number | CSK CSK-2RS | |
| Precision Rating | P0 | Seals Type | sealed | |
| Place of Origin | Jiangsu, China |
Product Description
Product Description

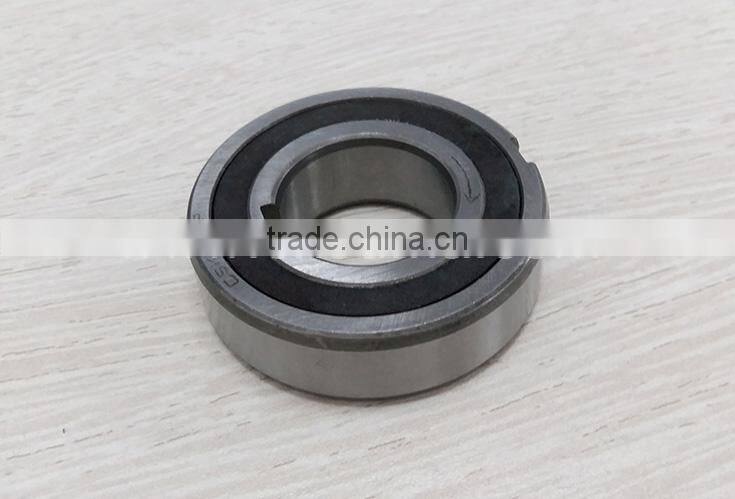

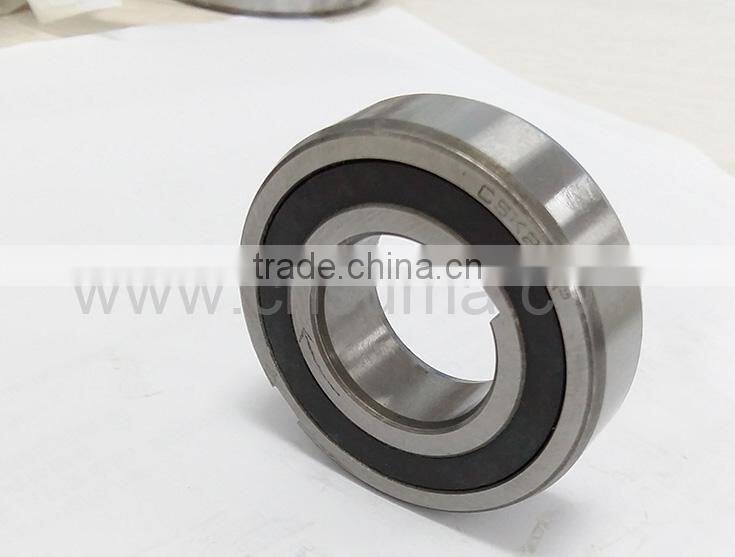

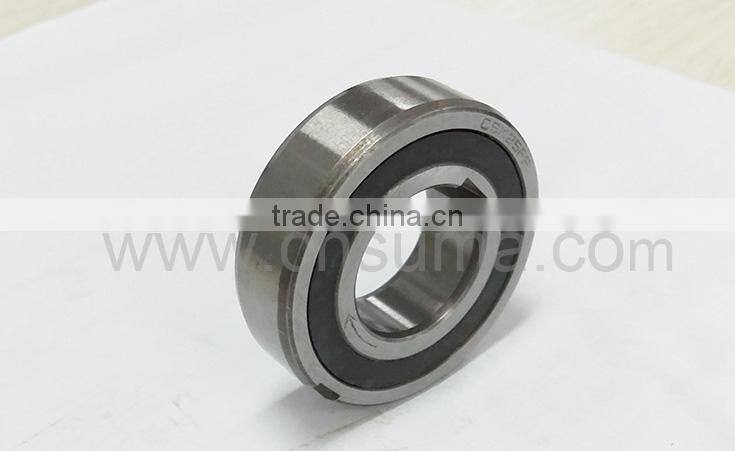

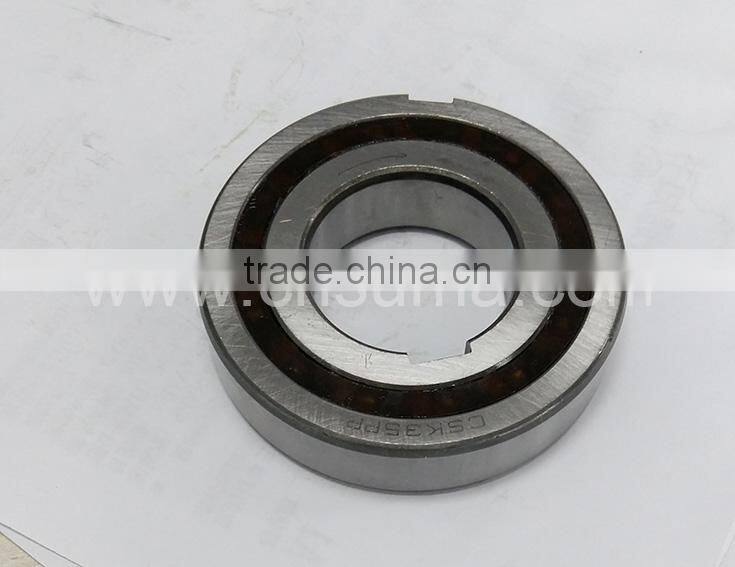

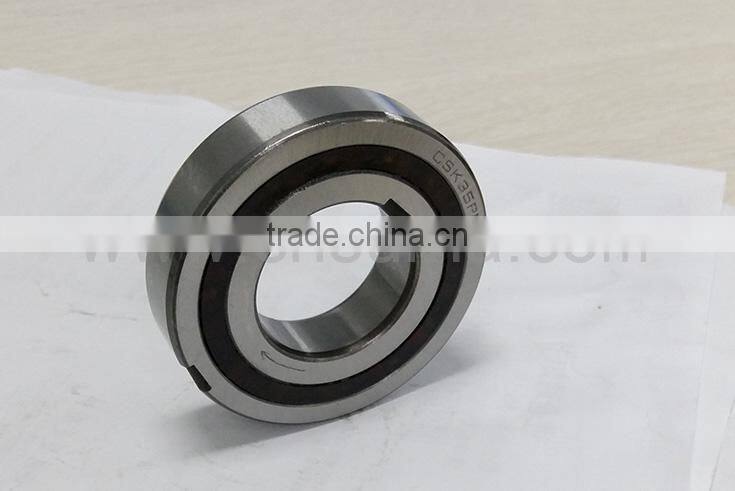

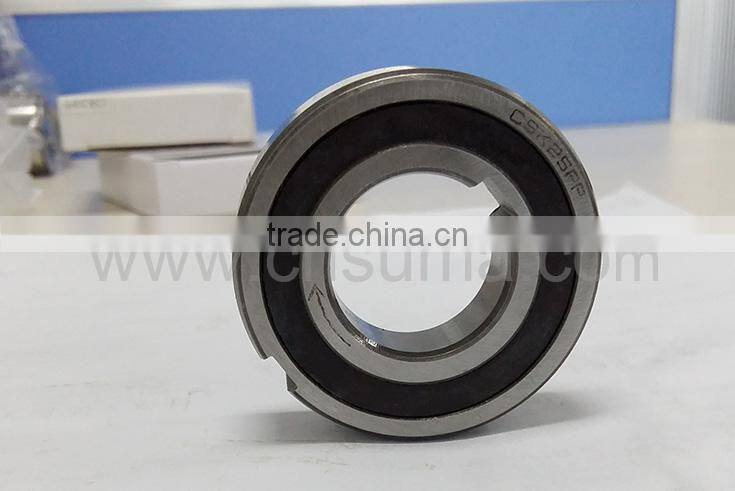

CSK SERIES ONE WAY CLUTCH BEARING
| Model | CSK / CSK…2RS |
| Material | GCr15 |
| Inner diameter | 8-40mm |
| Outer diameter | 22-80mm |
| Thickness | 9-27mm |
| Torque capacity | 2.5-325Nm |
| Weight | 0.015-0.6kg |
| Application | Textile machine, fans, ventilators, printing machine |
| Payment terms | TT. L/C, D/A,D/P,Western Union |
| Delivery time | 2-4 days for the sample, 7 days for big order |
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||
| dynamic | static | |||||||||
| CSK (KK) | d | TKN1) | N max | D | L | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 8* | – | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.5 | |
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..2RS | 8** | 2.5 | 15000 | 22 | 9 | 3.28 | 0.86 | 0.015 | 0.8 | |
| 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | |
| 15 | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | ||
| 17 | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | ||
| 20 | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | ||
| 25 | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | ||
| 30 | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | ||
| 35 | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | ||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |
To order the bearing,please choose the specific size in the table,for example,csk20,csk25-2rs
MOUNTING EXAMPLE
Detail images
Certifications
Company Information
| Changzhou Suma Precsion Machinery Co.,Ltd |
Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Production and Test
FAQ
Q: Why do we choose your company?
A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
