Wholesale One Way Clutch (B200) Roller Bearing
- Shanghai ; Ningbo
You May Like
Product Details
| Brand Name | SUMA | Bore Size | 16.51, 79.356 | |
| Outside Diameter | 40, 125 | Model Number | B200 | |
| Precision Rating | P0 P6 P5 P4 P2 | Seals Type | Sealed | |
| Number of Row | Single Row | Place of Origin | Jiangsu, China |
Product Description

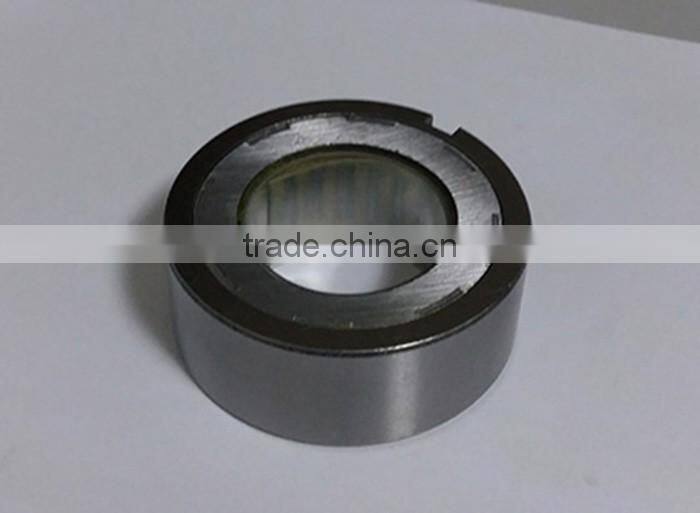

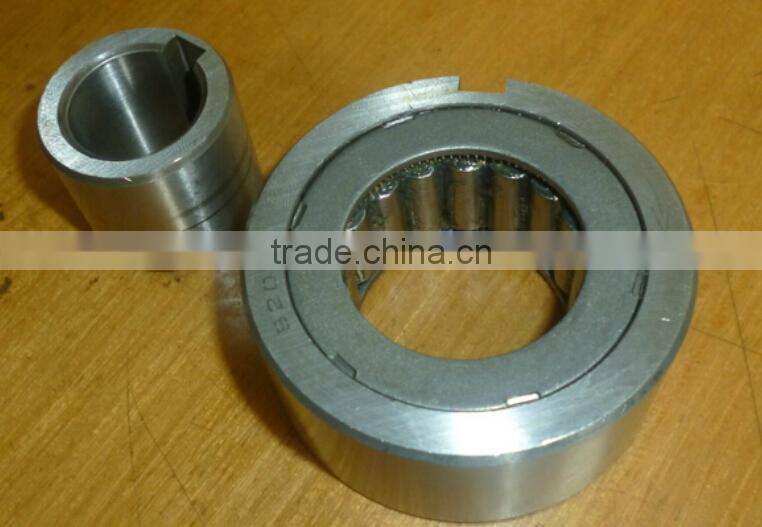

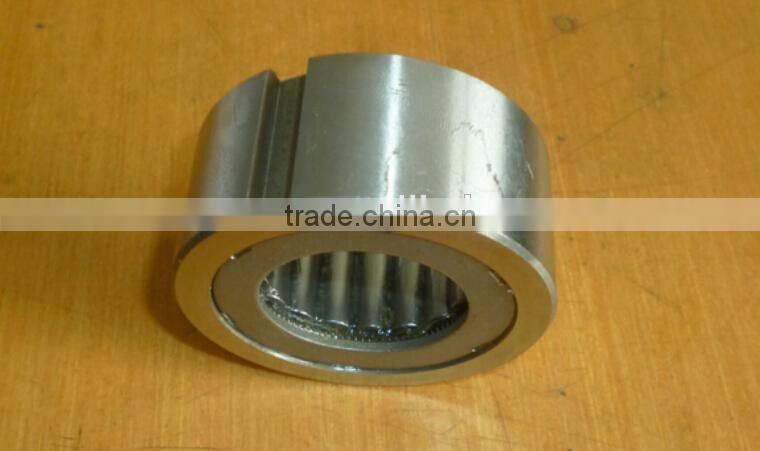

Wholesale One Way Clutch (B200) Roller Bearing
Features
Type B200 is a non bearing supported sprag type freewheel.
The sprags run directly on the shaft provided by the user. Bearings are required to support axial and radial loads.
Data Sheet
| Details | ||
| Item | B200 Series | |
| Material | GCr15 | |
| Max. Idexing | 150 cycle/min | |
| Key Way | 4X2.5 - 12X4.5 | |
| Outer Diameter | 40 - 125 mm | |
| Weight | 0.23-2.40 kg | |
| Drag Torque | 0.1 - 0.39 Nm | |
| Application | Elevator, Industrial Machines | |
Different Sizes For Your Reference

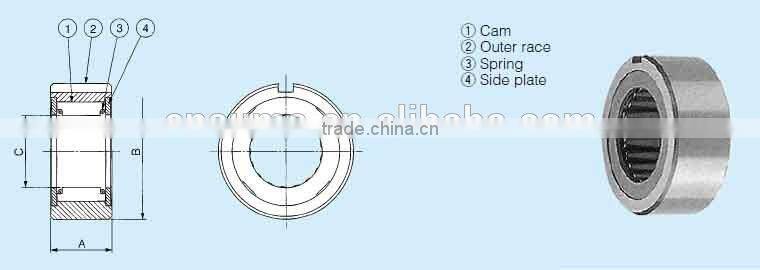

Model | Torque Capacity (N.m) | Drag Torque (N.m) | Max .Overrunning (r/min) | Max.Idexing (cycle/min) | A(+0 to -0.6) |
B |
Keyway | With JIS Bearing No. | Shaft Dia. C(+0 to -0.025) | Weight (kg) | |
Shaft | Outer Race | ||||||||||
B203 | 39.2 | 0.10 | 2400 | 500 | 150 | 25.0 | 40(-0.014-0.039) | 4X2.5 | 6203 | 16.510 | 0.23 |
B204 | 58.8 | 0.10 | 2400 | 500 | 150 | 25.0 | 47(-0.014-0.039) | 5X3 | 6204 | 18.796 | 0.34 |
B205 | 98 | 0.20 | 1800 | 400 | 150 | 25.0 | 52(0.017-0.042) | 5X3 | 6205 | 23.622 | 0.45 |
B206 | 235 | 0.20 | 1800 | 350 | 150 | 28.0 | 62(-0.017-0.042) | 7X4 | 6206 | 32.766 | 0.68 |
B207 | 372 | 0.20 | 1800 | 300 | 150 | 28.0 | 72(-0.017—0.042) | 7X4 | 6207 | 42.088 | 0.80 |
B208 | 549 | 0.20 | 1800 | 200 | 150 | 32.0 | 80(-0.017-0.042) | 10X4.5 | 6208 | 46.761 | 0.91 |
B209 | 549 | 0.20 | 1800 | 200 | 150 | 32.0 | 85(-0.020-0.045) | 10X4.5 | 6209 | 46.761 | 0.95 |
B210 | 784 | 0.29 | 1200 | 200 | 150 | 32.0 | 90(-0.020-0.045) | 10X4.5 | 6210 | 56.109 | 1.00 |
B211 | 784 | 0.29 | 1200 | 200 | 150 | 32.0 | 100(-0.020-0.050) | 10X4.5 | 6211 | 56.109 | 1.40 |
B212 | 1230 | 0.29 | 1200 | 180 | 150 | 42.0 | 110(-0.020-0.050) | 10X4.5 | 6212 | 70.029 | 1.80 |
B213 | 1230 | 0.29 | 1200 | 180 | 150 | 42.0 | 120(-0.020-0.050) | 10X4.5 | 6213 | 70.029 | 2.30 |
B214 | 1390 | 0.39 | 180 | 180 | 150 | 42.0 | 125(-0.024-0.060) | 12X4.5 | 6214 | 79.356 | 2.4 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
