RIZESG2 One Way Clutch bearing (Indexing clutch)
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Manufactures Supply BB20-2K-K One Way Clutch Bearing
-
RSXM31 one way sprag centrifugal clutch with lift off for SEWW reducer
-
GFR30F2F7 One-way Clutch from China Honest Dealer
-
MG300 Freewheel Cam Clutch from China Supplier
-
GFRN15F5F6 Roller Type Freewheel One Way Clutch with Competitive Advantage
-
MZEU55 One Way Clutch with Good Quality for Seed Spreader
Product Details
| Brand Name | SUMA | Bore Size | 30, 130 | |
| Outside Diameter | 117, 432 | Model Number | RIZESG2 | |
| Precision Rating | P0 P6 | Seals Type | Sealed | |
| Place of Origin | Jiangsu, China |
Product Description
RIZESG2 One Way Clutch bearing (Indexing clutch)
Type RIZ..ESG2 is a centrifugal lift off sprag type freewheel when the inner race is overrunning. Only this race is designed for freewheeling.
It is a self-contained unit designed for overrunning clutch applications. Typically used in crawl drives where the overrunning speed is high, but the drive speed is low and does not exceed the maximum driving speed specified in the table.
It is a type RIZ (» see page 84 for further information) equipped with an ES elastic coupling and a cover G2. The ES type is a rugged coupling, economical and suitable for many applications.
The inner race must overrun and will be connected to the driven machine shaft. When ordered complete, the unit is delivered grease lubricated, ready for either horizontal or vertical installation.

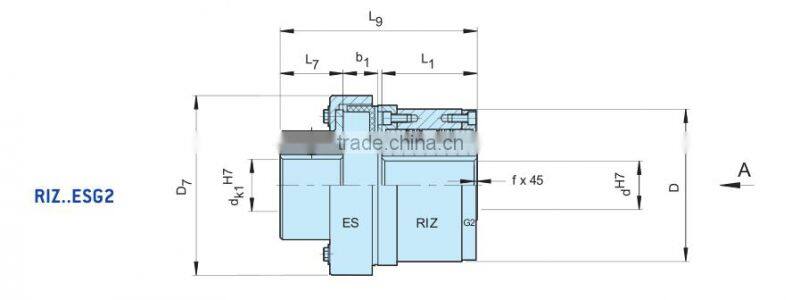

| Type | Size | Speeds | Weight | |||||||||||
| RIZ..ESG2 | dH7 | ES | TKN | nmax1) | nmin2) | nmax3) | dK1H7 | D | L1 | D7 | L7 | L9 | b1 | |
| [mm] | [Nm] | [min-1 ] | [min-1 ] | [min-1 ] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | ||
| 30 | 10 | 80 | 290 | 700 | 9000 | 10.. 45 | 100 | 68 | 117 | 48 | 133.5 | 17 | 5 | |
| 35 | 16 | 250 | 280 | 670 | 8500 | 10.. 50 | 110 | 74 | 129 | 52 | 143.5 | 19 | 6.6 | |
| 40 | 25 | 400 | 260 | 630 | 7500 | 15.. 55 | 125 | 86 | 134 | 57 | 163.5 | 22 | 9.9 | |
| 45 | 40 | 625 | 255 | 610 | 6700 | 20.. 60 | 130 | 86 | 155 | 61 | 171.5 | 26 | 11.3 | |
| 50 | 63 | 1000 | 235 | 560 | 6000 | 20.. 70 | 150 | 94 | 175 | 67 | 194 | 30 | 16.7 | |
| 60 | 100 | 1600 | 210 | 510 | 5300 | 25.. 75 | 170 | 114 | 196 | 75 | 227 | 35 | 24 | |
| 70 | 160 | 2500 | 195 | 470 | 4000 | 30.. 80 | 190 | 134 | 223 | 82 | 261.5 | 41 | 32.5 | |
| 80 | 400 | 5000 | 155 | 375 | 4000 | 45.. 100 | 210 | 144 | 290 | 97 | 305 | 56 | 52 | |
| 90 | 630 | 7500 | 145 | 350 | 3000 | 60.. 120 | 230 | 158 | 330 | 116 | 346.5 | 64 | 78 | |
| 100 | 1000 | 12500 | 140 | 340 | 2400 | 75.. 140 | 270 | 182 | 378 | 140 | 386 | 75 | 136 | |
| 130 | 1600 | 20000 | 130 | 320 | 2400 | 90.. 160 | 310 | 212 | 432 | 160 | 442 | 85 | 199 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.

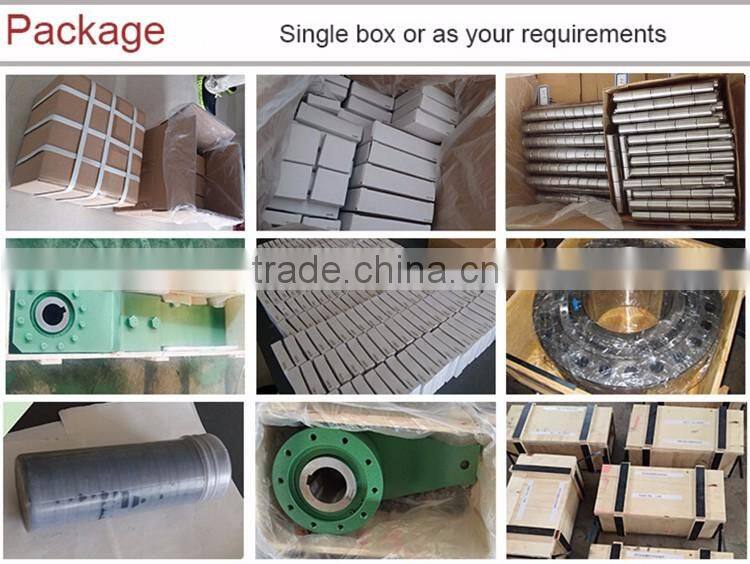

Q: How do you pack the riz one way overrunning clutch
A: Usually riz one way overrunning clutch are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of riz one way overrunning clutch from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the riz one way overrunning clutch in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
