Keyless Locking Devices RLK 404
- Shanghai; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Shaft-hub-connections Three-part Design Shrink Discs RLK603
-
Two-part Design Locking Plate Shrink Discs RLK 608
-
RLK 300 EXpansion Device Sleeve Individual Clamping Connections
-
RLK 250 L Keyless Locking Assembly Centres the Hub to the Shaft
-
Keyless Locking Assembly RLK 250 Clamping Elements
-
RLK 133 Short Axial Width Clamping Sets Lock-alx
Product Details
| Structure | Disc | Flexible or Rigid | Flexible | |
| Standard or Nonstandard | Standard | Material | Steel | |
| Brand Name | Suma | Place of Origin | Jiangsu, China | |
| Model Number | RLK 404 |
Product Description
| Keyless Locking Devices RLK 404 | ||
| Details | ||
| Model | RLK404 | |
| Material | steel | |
| Type | lock sleeve | |
| Inner Diameter | 70mm | |
| Outer Diameter | 110mm | |
| Weight | 2.4kg | |
| Width | 72mm | |
| Transmissible torque | 7000Nm | |
| axial force | 200kN | |

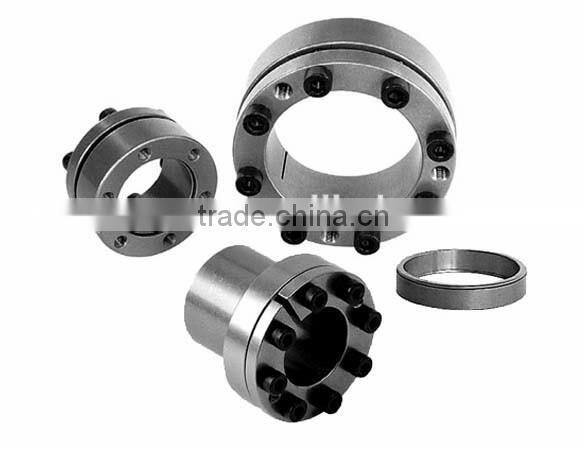

Keyless Locking Devices RLK 404
centres the hub to the shaft
highest transmissible torque
Features
1.Centres the hub to the shaft
2. High transmissible torque
3. No axial displacement between hub and shaft during clamping procedure
4. For shaft diameters between 70 mm and 600 mm
specifications
Application example
Backlash free attachment of a belt drum to the drive shaft of a conveyor belt with an Cone Clamping Element RLK 404.
The Cone Clamping Element centres the belt drum on the drive shaft. As no axial shift occurs
during the clamping process, the axial position of the belt drum in relation to the drive shaft
remains unchanged.

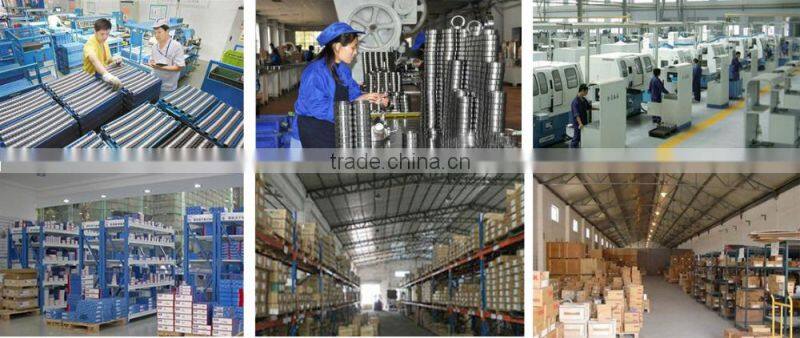

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and needle roller bearing with high technology
Q: Why do we choose your company?
A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
