Corrosion Protected Clamping Sets Taper Lock Hub RLK 110K

FOB Price

US$ 5 - 10 / Piece

1 Piece(Min. Order)

Port Shanghai; Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Structure	Disc	Flexible or Rigid	Flexible
Standard or Nonstandard	Standard	Material	Steel
Brand Name	Suma	Place of Origin	Jiangsu, China
Model Number	RLK110K

Product Description

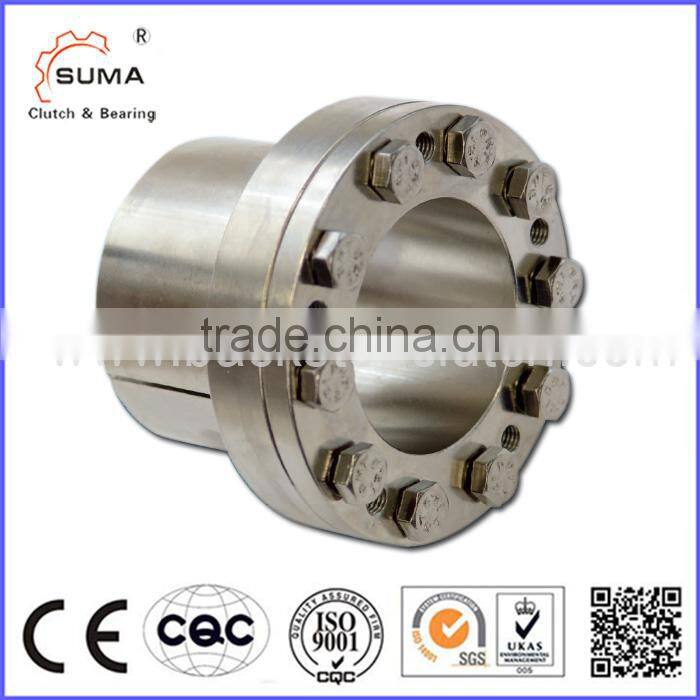

Corrosion Protected Clamping Sets Taper Lock Hub RLK 110K

Product Description

Corrosion Protected Clamping Sets Taper Lock Hub RLK 110K
Details
Model		RLK110K
Material		steel
Type		cone clamping element
Inner Diameter		19mm
Outer Diameter		49mm
Weight		0.3kg
Width		41mm
Transmissible torque		180Nm
axial force		19kN

Features

1. Centres the shaft to the hub

2. All parts 35 μm chemically nickel-coated for high corrosion resistance pursuant to

DIN 50021 (neutral salt spray test)

3. High transmissible torques

4.Radial flat height is particularly suitable for small hub outer diameters

5.No axial displacement between hub and shaft during clamping procedure due to fixed backstop point.

6. For shaft diameters between 19 mm and 60 mm

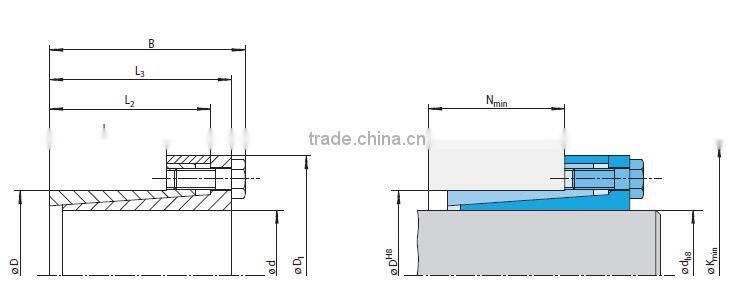

specifications

size								Yield strength Re of the hub material [N/mm²]						Transmissible torque or axial force		Contact pressure at		Clamping screws				Weight	article number
								200		torque or		500				Shaft	Hub	torque	number	Size	Length	Weight	article number
d	D	axial force	B		L1	L2	L3	^Kmin	^Nmin	^Kmin	^Nmin	^Kmin	^Nmin	M	F	^PW	Pn	Ms
mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	Nm	kN	N/mm²	N/mm²	Nm			mm	kg
19	27	49		41	18	31	38	64	27	45	23	37	21	180	19	164	116	15	4	M 6	18	0,3	4206-019001-A08101
20	28	49		41	18	31	38	63	27	45	22	38	21	190	19	156	111	15	4	M 6	18	0,3	4206-020001-A08101
22	32	54		48	25	38	45	53	30	43	28	39	27	200	19	102	70	15	4	M 6	18	0,3	4206-022001-A08101
25	34	56		48	25	38	45	54	30	45	28	41	27	230	19	90	66	15	4	M 6	18	0,4	4206-025001-A08101
28	39	61		49	25	38	45	72	33	56	29	49	28	390	28	120	86	15	6	M 6	18	0,5	4206-028001-A08101
30	41	62		49	25	38	45	72	33	58	29	51	28	420	28	112	84	15	6	M 6	18	0,5	4206-030001-A08101
32	43	65		56	30	43	50	89	37	67	31	54	33	590	37	117	87	15	8	M 6	18	0,5	4206-032001-A08101
35	47	69		56	30	43	50	82	39	66	35	58	33	650	37	107	80	15	8	M 6	18	0,6	4206-035001-A08101
38	50	72		56	30	43	50	83	38	68	35	61	33	710	37	99	75	15	8	M 6	18	0,6	4206-038001-A08101
40	53	75		56	30	43	50	85	38	71	35	64	33	740	37	94	71	15	8	M 6	18	0,7	4206-040001-A08101
45	59	85		71	40	57	65	114	54	87	47	75	44	1550	37	114	87	35	8	M 8	22	1,2	4206-045001-A08101
50	65	92		76	45	62	70	127	61	96	53	83	50	2150	69	114	88	35	10	M 8	22	1,3	4206-050001-A08101
55	71	98		81	50	67	75	121	63	97	57	87	54	2400	87	93	72	35	10	M 8	22	1,5	4206-055001-A08101
60	77	104		81	50	67	75	124	62	103	57	92	54	2600	87	85	67	35	10	M 8	22	1,7	4206-060001-A08101

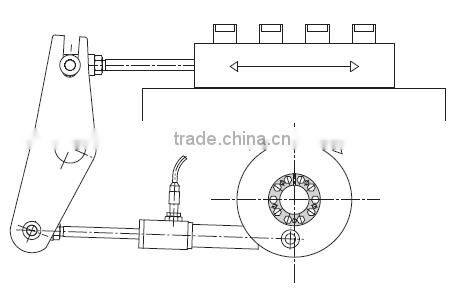

Application example

Backlash free connection of an eccentric wheel to the drive shaft of a packaging machine with

a Cone Clamping Element RLK 110 K. The turning motion is transmitted into translatory motion

by a driving rod that is protected from overload by a force limiter.

Production and Test

FAQ

Q: Why do we choose your company?

A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.

Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.

Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?

A: Yes, we can send bearing samples to check quality first.
